5V, 300mA Isolated Step-Down Voltage Regulator D24Z3F5
This step-down voltage regulator consists of an input step-down (buck) regulator in front of an isolated DC-to-DC power module. This enables up to 300 mA at 5 V (default) or 5.5 V (selectable) out from a wide 5.5 V to 36 V input.
| Input voltage | Output voltages | Max continuous output current | Size |
|---|---|---|---|
| 5.5 V to 36 V | 5 V (default) or 5.5 V (selectable) | 300 mA | 0.4″ × 1.0″ |
Compare all products in Isolated DC-DC Power Modules or Step-Down (Buck) Voltage Regulators.
| Description | Specs (12) | Pictures (11) | Resources (4) | FAQs (0) | On the blog (0) | Distributors (0) |
|---|
|
5V, 300mA Isolated Step-Down Voltage Regulator D24Z3F5. |
|---|
 |

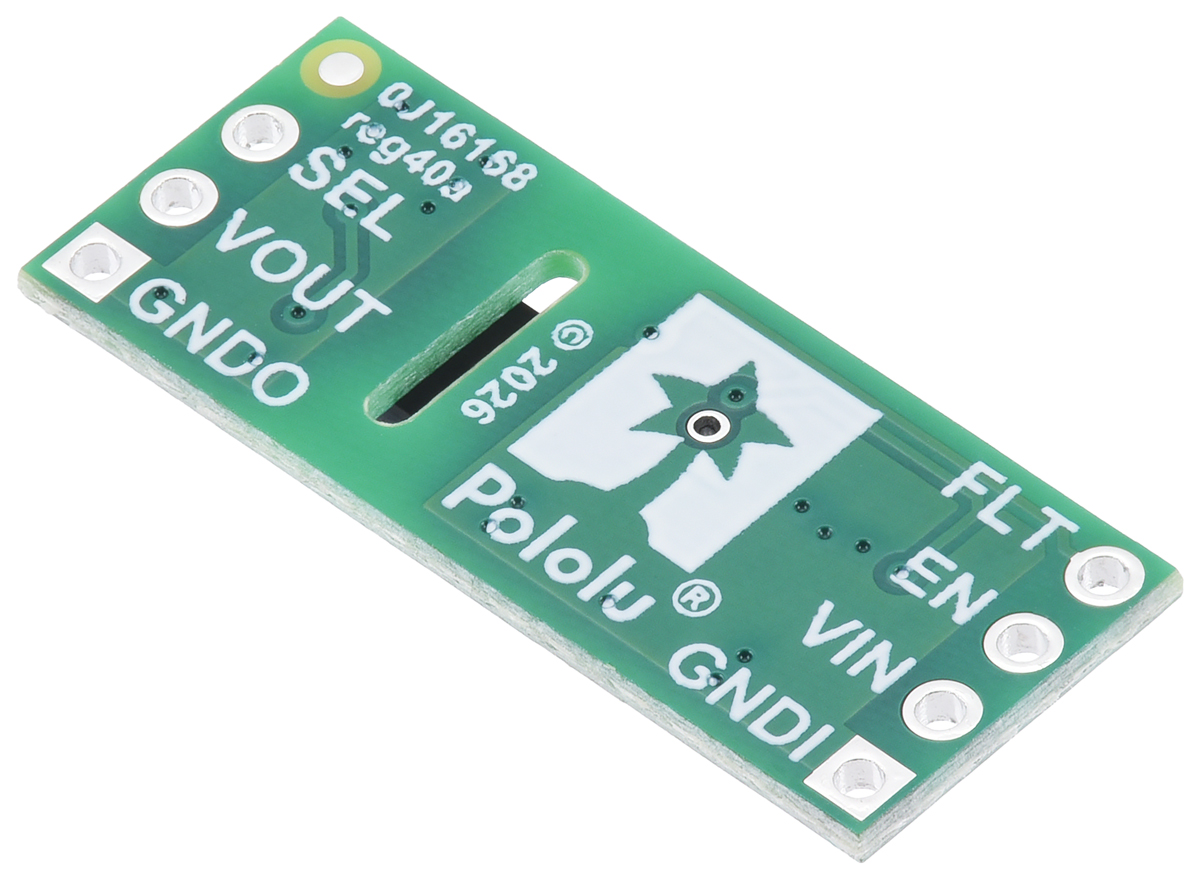

5V, 300mA Isolated Step-Down Voltage Regulator D24Z3F5, bottom view. |
|---|
 |

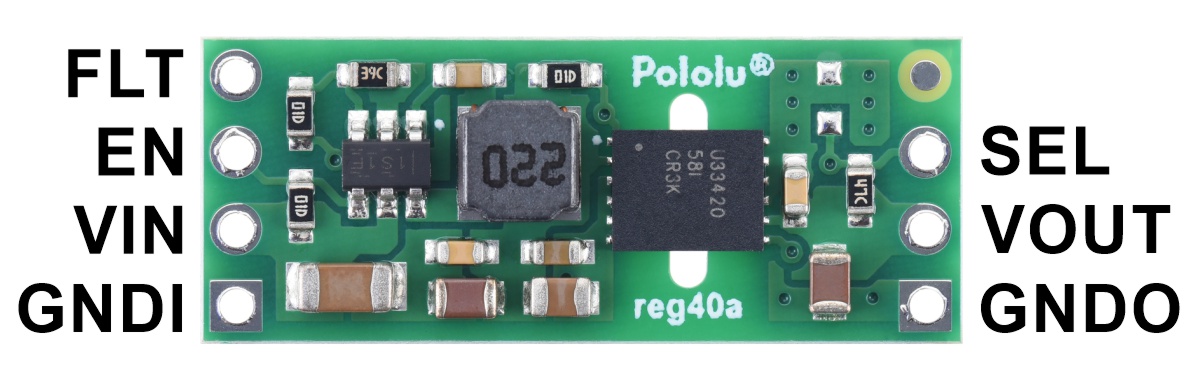

Pinout of the 5V, 300mA Isolated Step-Down Voltage Regulator D24Z3F5. |
|---|
 |

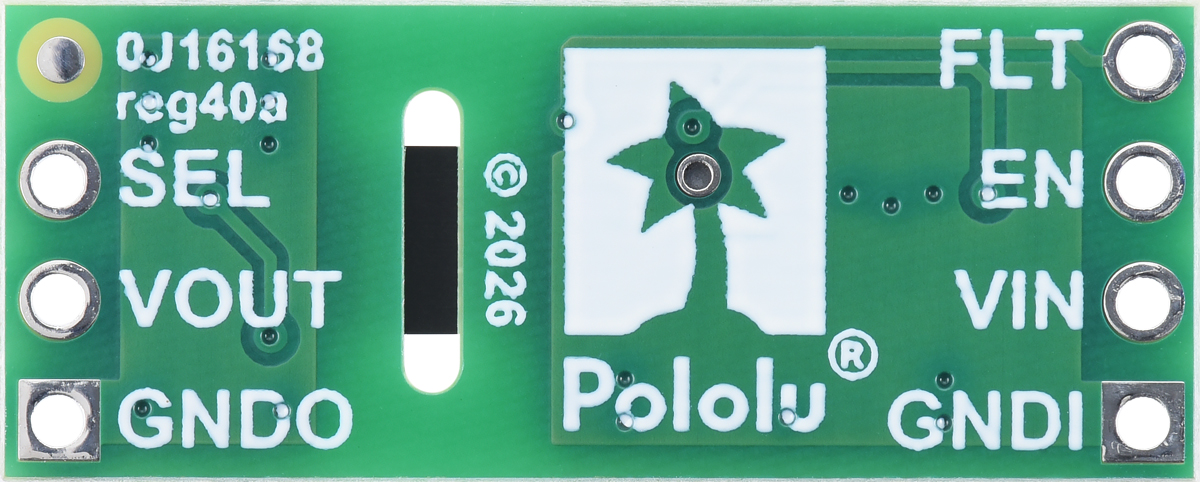

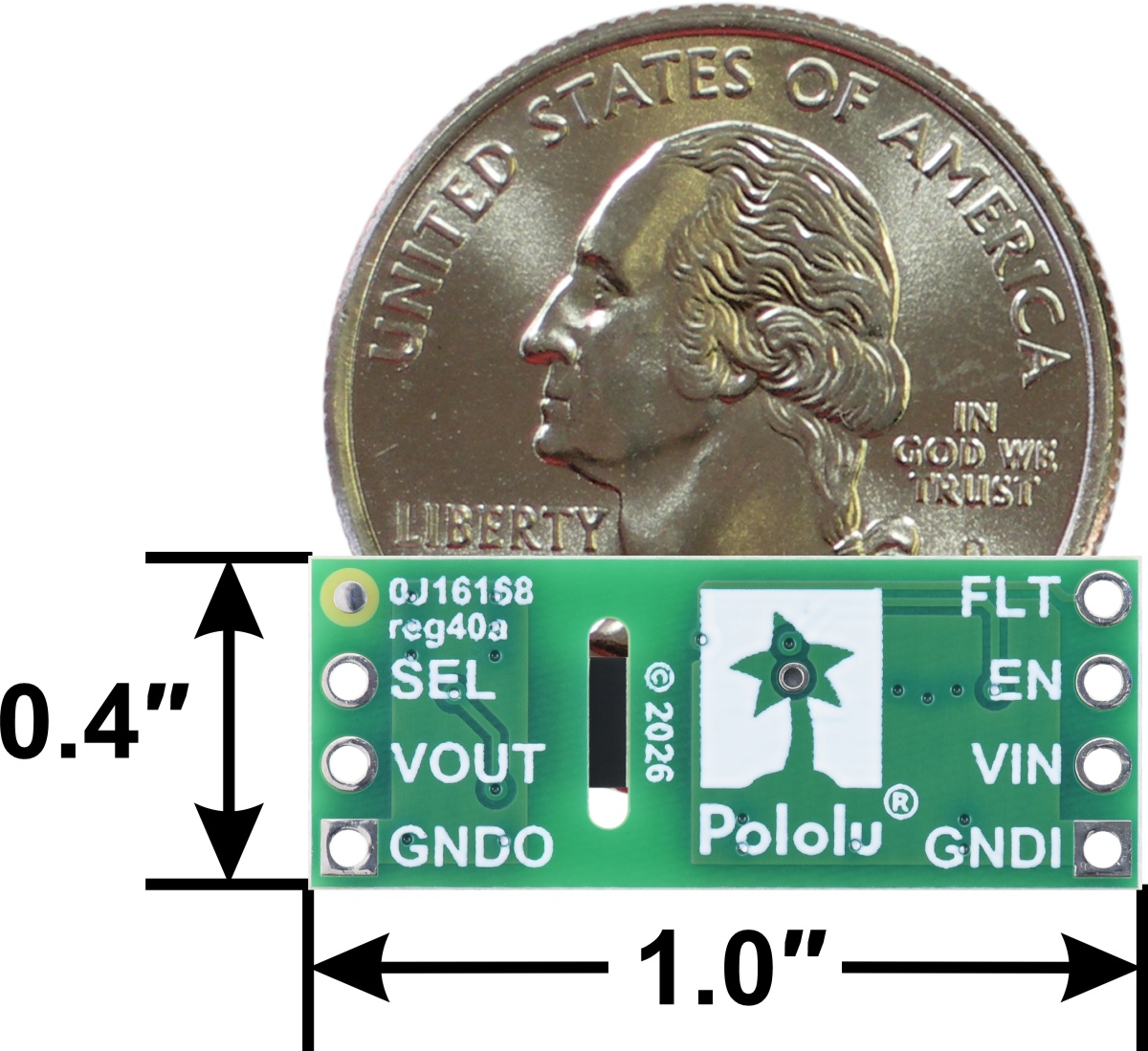

5V, 300mA Isolated Step-Down Voltage Regulator D24Z3F5, bottom view with dimensions and a US quarter for size reference. |
|---|
 |

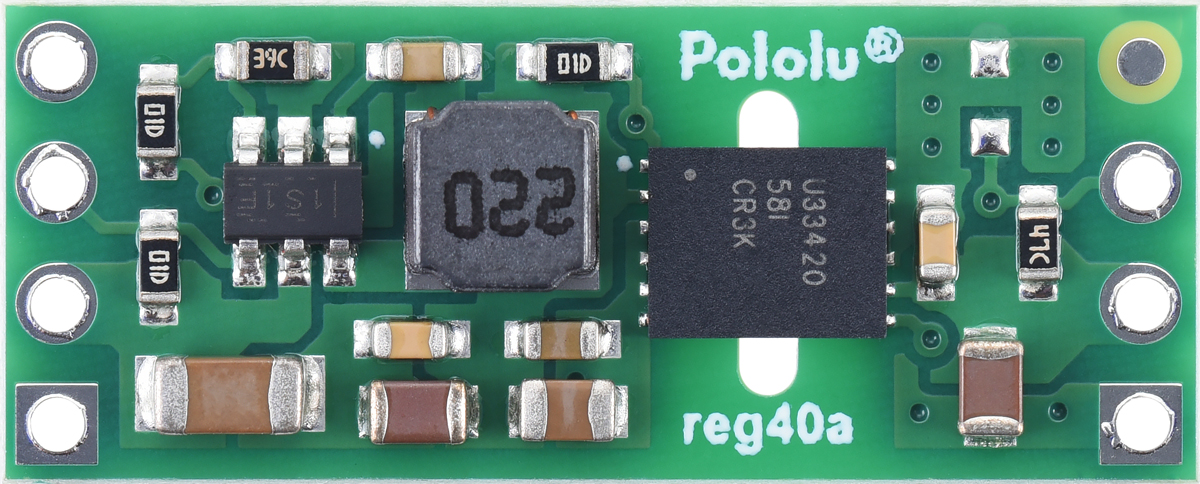

5V, 300mA Isolated Step-Down Voltage Regulator D24Z3F5, top view. |
|---|
 |
5V, 300mA Isolated Step-Down Voltage Regulator D24Z3F5, bottom view. |
|---|
 |

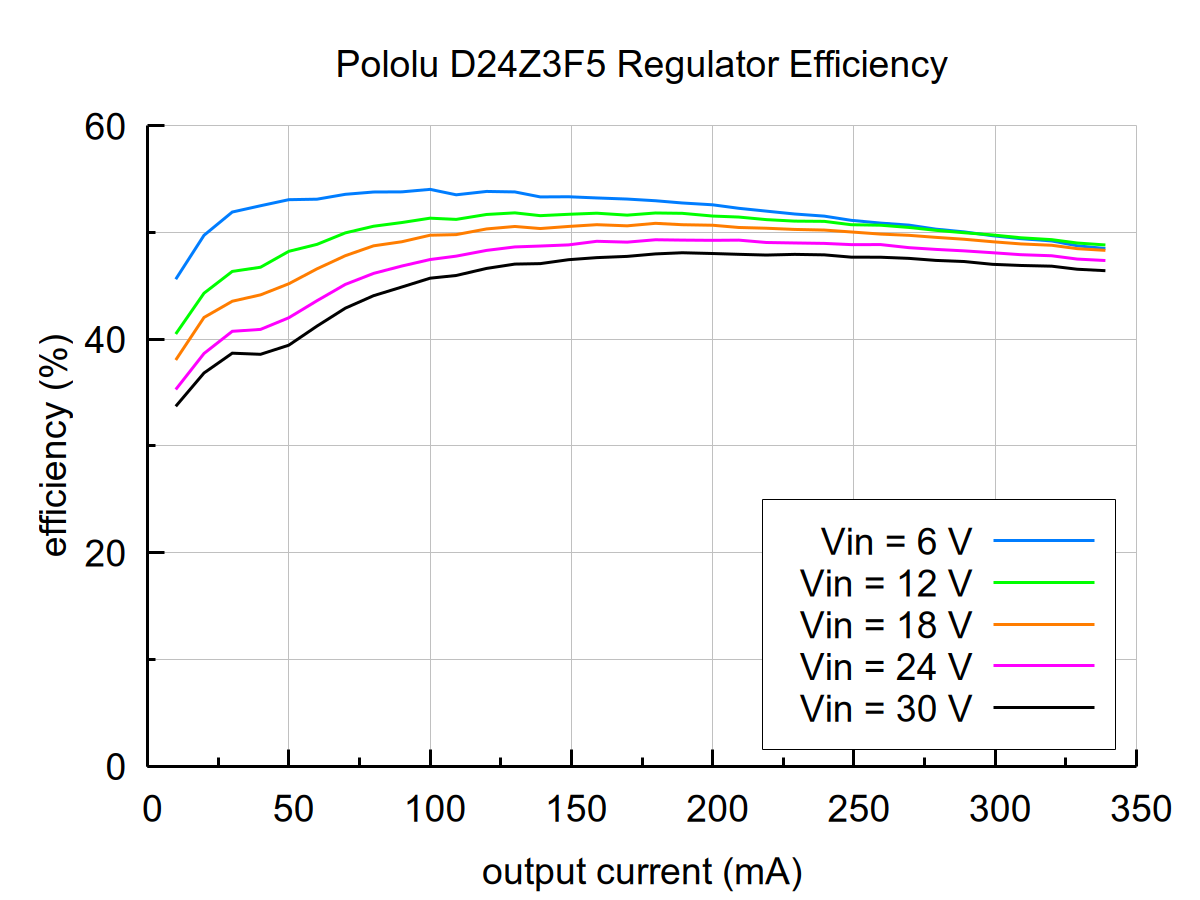

Typical efficiency of the D24Z3F5 5V output as a function of output current. |
|---|
 |

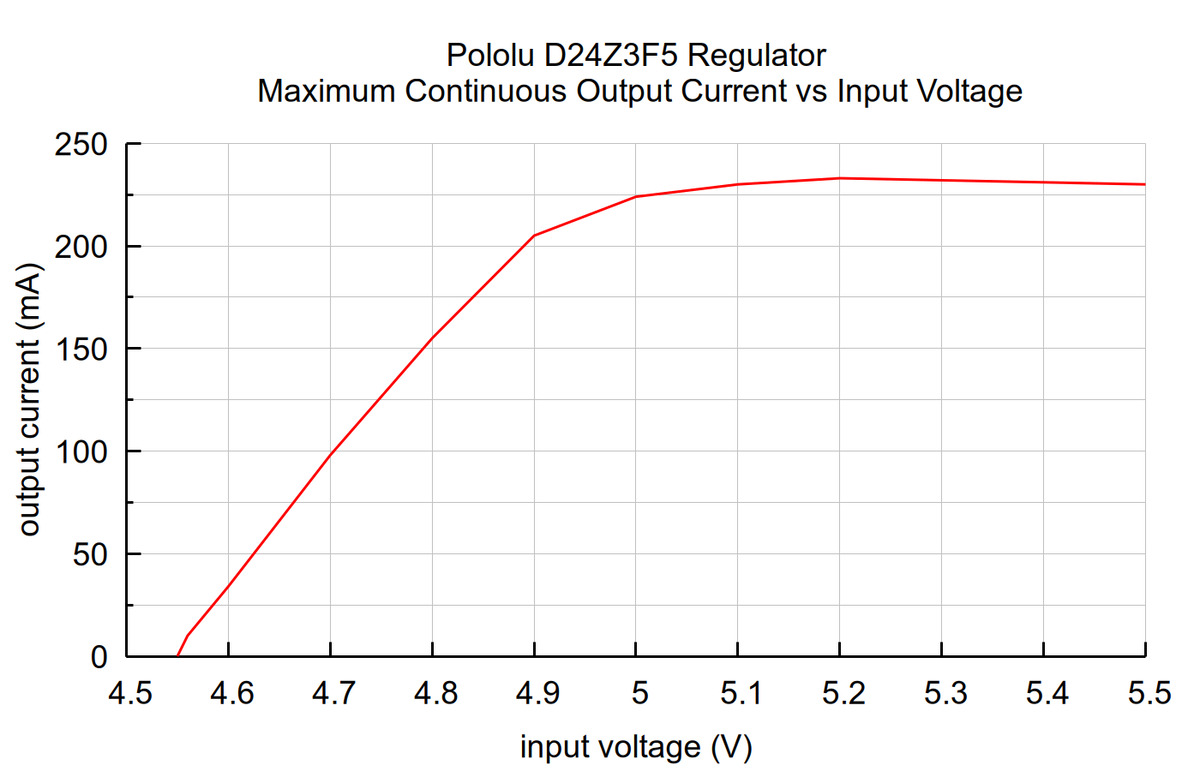

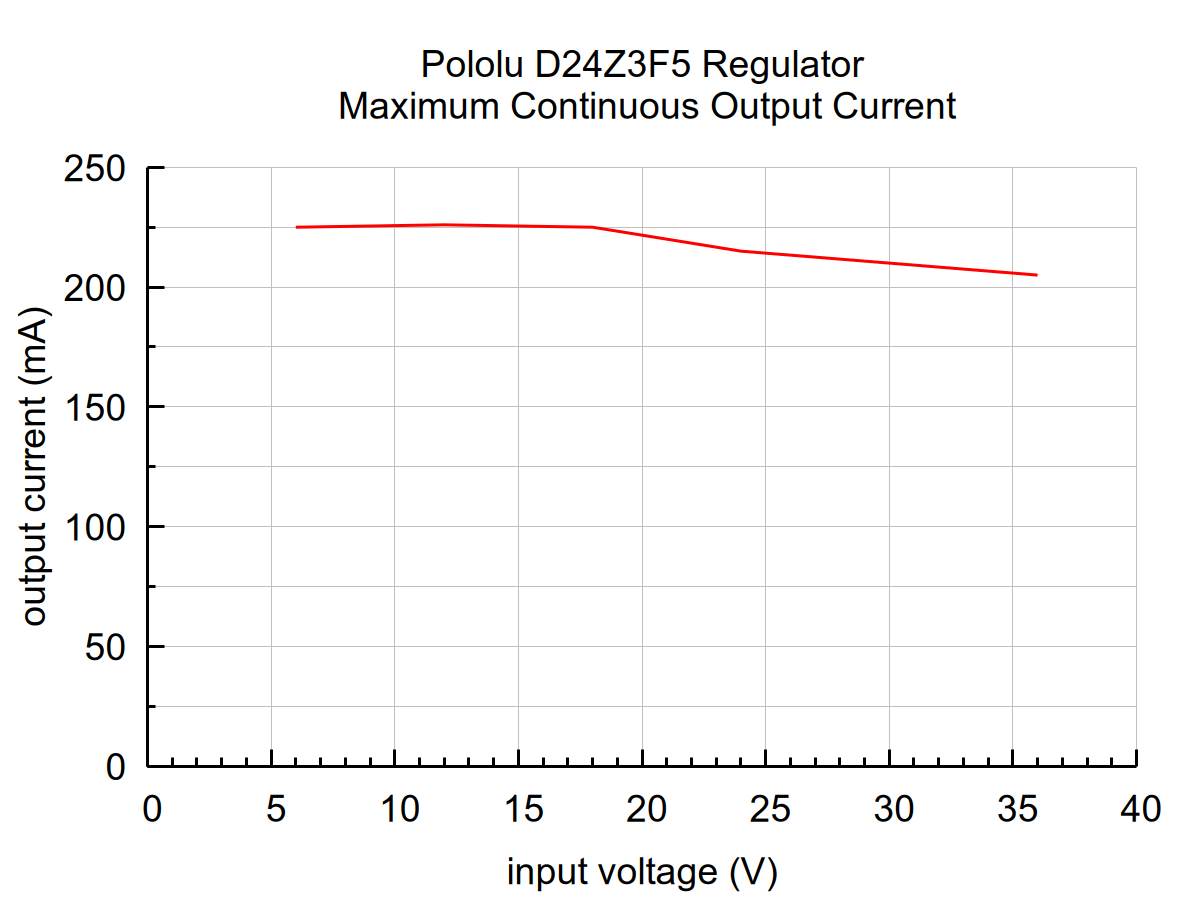

Typical maximum continuous output current of the D24Z3F5 5V output as a function of input voltage. |
|---|
 |
Typical maximum continuous output current of the D24Z3F5 5V output for input voltages under 5.5V. |
|---|
 |

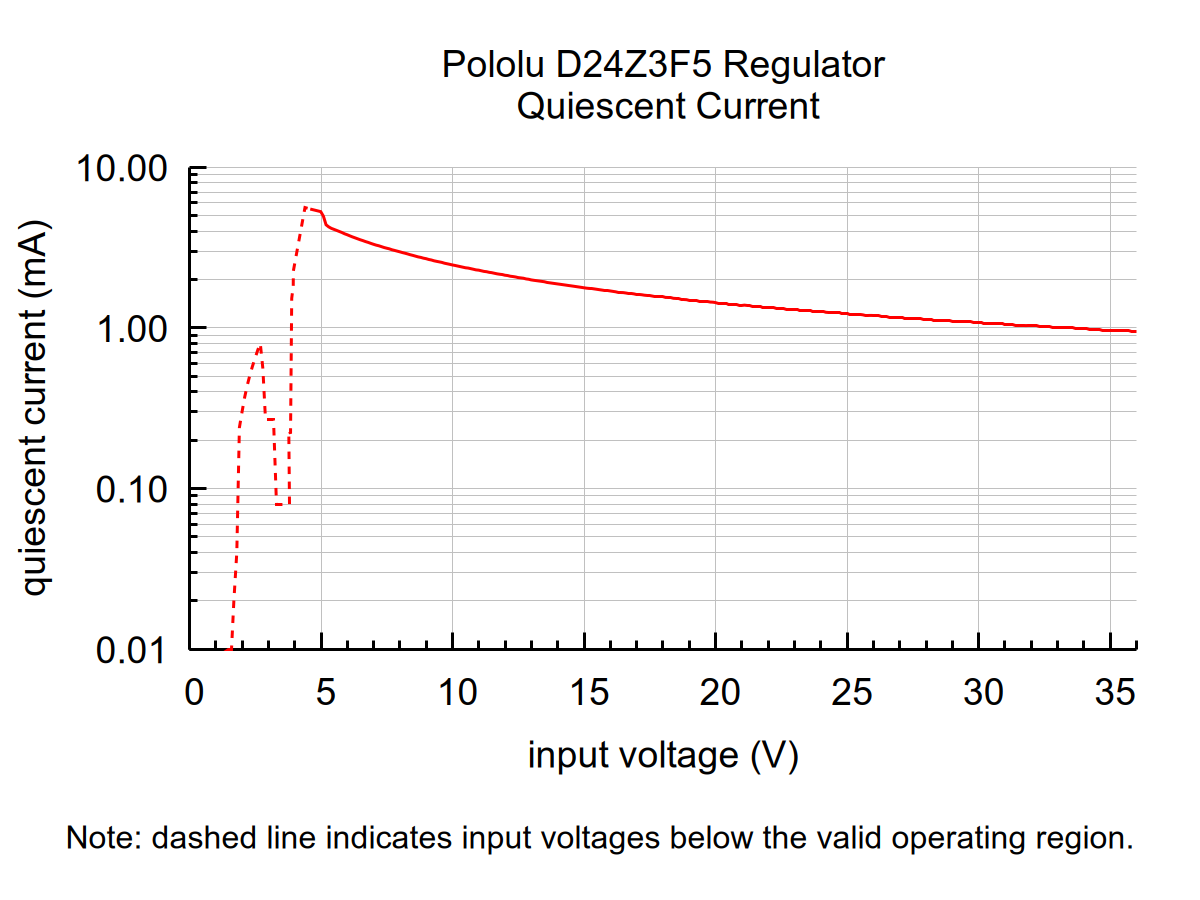

Typical quiescent current of the 5V, 300mA Isolated Step-Down Voltage Regulator D24Z3F5. |
|---|
 |

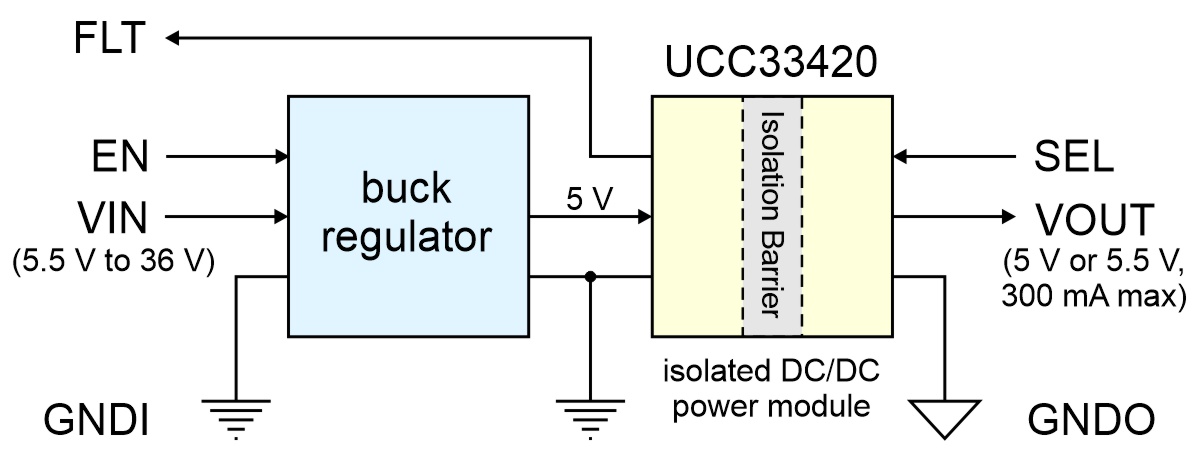

Block diagram of the 5V, 300mA Isolated Step-Down Voltage Regulator D24Z3F5. |
|---|
