Romi Chassis and Accessories
The versatile Romi chassis is a great starting point for your next mobile robot. It is a differential-drive platform with a diameter of 6.5″ (165 mm) and an integrated battery holder for six AA batteries. The drive wheels are located on a diameter of the circular base plate, allowing for turns or spinning in place. A large, fixed ball caster in the rear provides a smooth third point of contact, and a second ball caster (not included) can optionally be added to the front. The chassis uses 70×8mm Pololu wheels and Mini Plastic Gearmotors with extended backshafts to enable quadrature encoders for position feedback.
The Romi chassis has an abundance of general-purpose mounting holes and slots intended for various sizes of screws. These holes can be used for mounting your own electronics or the variety of Romi accessories we have available, such as the Robot Arm for Romi:
The plastic components making up the chassis are available in six colors, either individually (for use as replacement parts or to make custom color combinations) or in kits that include motors and battery contacts.
This animation shows how the parts fit together:
Products in category “Romi Chassis and Accessories”
Empower your Romi robot to manipulate its surroundings with this robotic arm accessory kit! The kit contains everything you need to build the arm, including a micro gripper and three servos—one for controlling the height of the arm, one for controlling the tilt of the gripper, and one for actuating the gripper paddles themselves. All three servos are specially modified to provide access to their feedback potentiometers, enabling higher-level closed-loop control of all three joints.
This Romi Chassis accessory offers a convenient way to expand your Romi robot vertically by adding new tiers. The expansion plate has the same diameter as the base plate, but we made it only a half circle to give you more expansion options. For example, when used as part of the Romi robot arm kit, it supports the arm in the back while leaving the front half of the Romi open. For a full-sized expansion platform, just combine two expansion plates. A mixture of mounting holes and slots give you the flexibility to mount components in a variety of orientations almost anywhere on the plate.
This expansion plate for the Romi chassis is made from black ABS.
Add quadrature encoders to the mini plastic gearmotors on your Romi chassis with this kit that uses a magnetic disc and Hall effect sensors to provide 12 counts per revolution of the motor shaft. The sensors operate from 3.5 V to 18 V and provide digital outputs that can be connected directly to a microcontroller or other digital circuit.

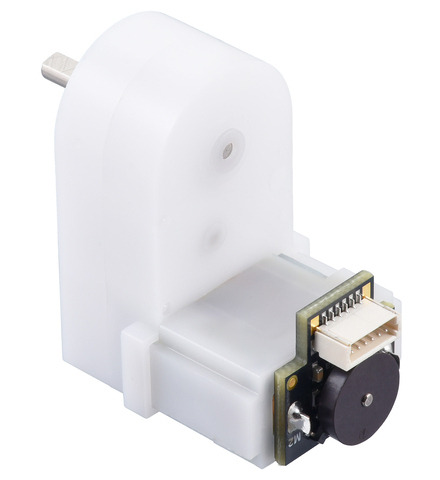

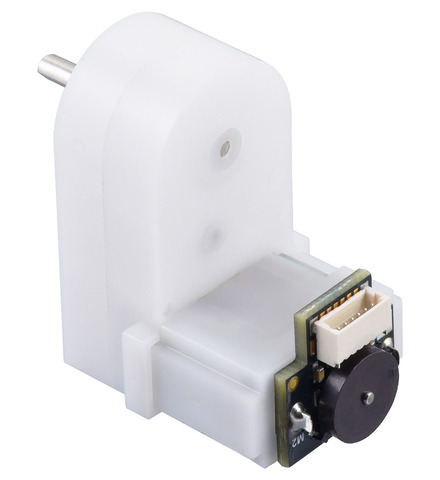

This replacement gearmotor for the Romi/TI-RSLK MAX has an encoder already installed. The assembly is ready to plug into corresponding headers on our various Romi electronics modules, including the Romi 32U4 control board and the Romi Motor Driver and Power Distribution Board. Two of these are included with the Pololu Chassis Kit for TI-RSLK MAX.
The Romi 32U4 Control Board turns the Romi chassis into a programmable robot based on the Arduino-compatible ATmega32U4 MCU. Its features include integrated dual motor drivers, a versatile power circuit, and inertial sensors, as well as connections for quadrature encoders and an optional LCD. The board also has the ability to interface with an added Raspberry Pi, making the foundation for a complete Raspberry Pi-controlled Romi robot.
Use this motor driver and power distribution board to get your Romi chassis running quickly. It offers all of the same features as the smaller Power Distribution board for Romi Chassis — battery contact slots, reverse voltage protection, several power switching options, and easy access to the various power busses — and adds a two-channel motor driver and powerful switching step-down regulator that can supply a continuous 2.5 A at 5 V or 3.3 V. Just add a microcontroller and sensors to complete your Romi robot.
This power distribution board is designed specifically for the Romi chassis as a convenient way to access the chassis’s battery power and pass that on the rest of the electronics that make up your robot. It has slots for soldering directly to the chassis’s battery contacts offers reverse voltage protection, several power switching options, and easy access to the various power busses. Just add your own motor drivers, microcontroller, and sensors to complete your Romi robot.
