Pololu Distance Sensor v2 with Pulse Width Output, 50cm Max

Overview

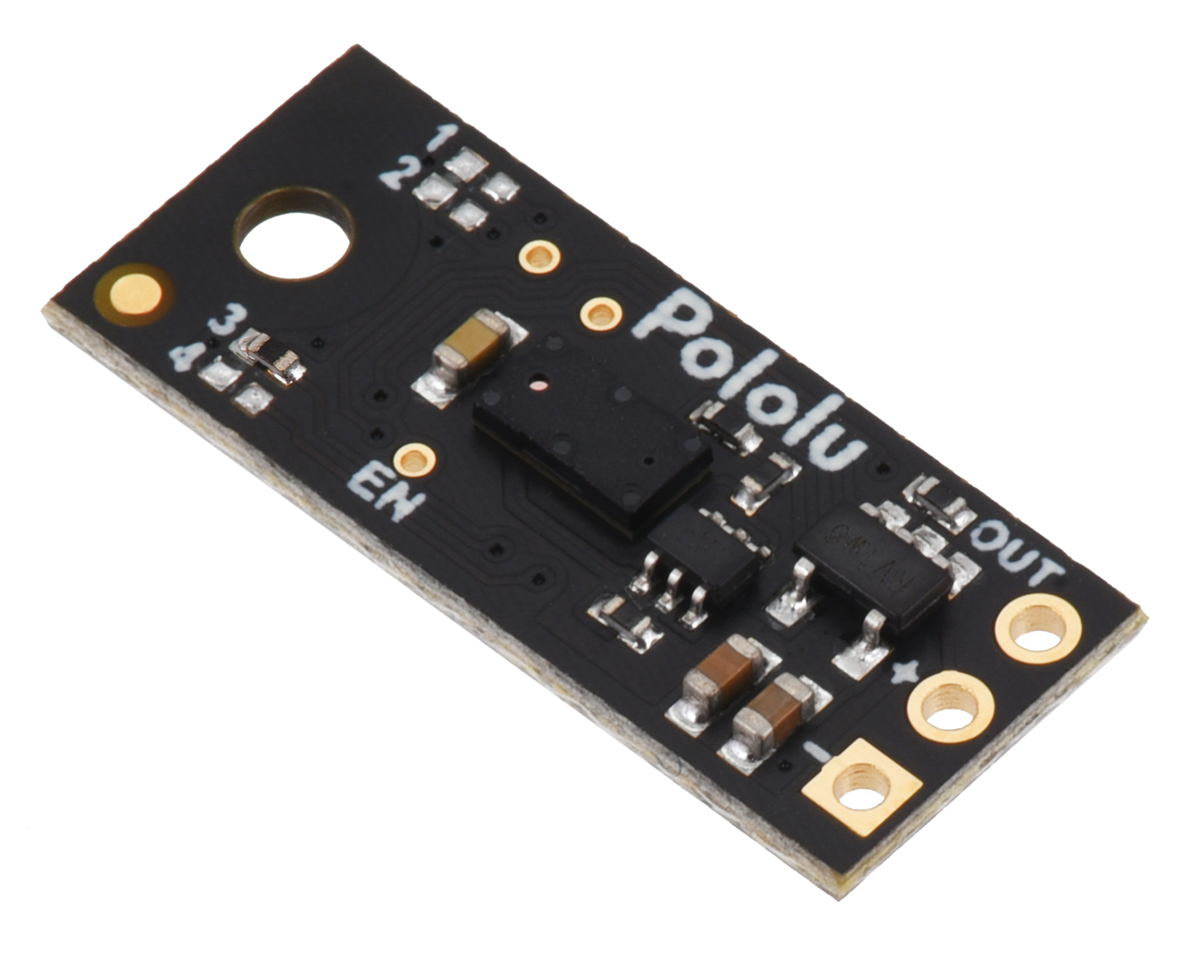

Pololu Digital Distance Sensor v2, 15cm.

This compact sensor makes it possible to measure the distance of objects up to about 50 cm (20″) away using a simple digital pulse width interface (similar to a hobby servo control signal). It uses a short-range lidar module to precisely measure how long it takes for emitted pulses of infrared, eye-safe laser light to reach the nearest object and be reflected back, allowing for 1 mm resolution. As long as the sensor is enabled, it takes continuous distance measurements and encodes the ranges as the widths of high pulses, which can then be timed by a microcontroller using a single digital input.

A camera with no IR filter shows the infrared light emitted by a Pololu Digital Distance Sensor (this light is eye-safe and not visible to the naked eye).

The relationship between measured distance d (in mm) and pulse width t (in µs) is as follows:

     ``d = (3 text( mm)) / (4 text( µs)) * (t  – 1000 text( µs))``

     ``t = 1000 text( µs) + (4 text( µs)) / (3 text( mm)) * d ``

The timing uncertainty is approximately ±5%. As objects approach the sensor, the output pulse width will approach 1.0 ms, while an object detected at 50 cm will produce a 1.667 ms pulse width. The sensor uses a pulse width of 2.0 ms to indicate no detection, and the pulse period T ranges from around 6 ms to 7 ms, depending on the proximity of the detected object.

The maximum detection range depends on object reflectivity and ambient lighting conditions. In our tests, the sensor was able to reliably detect a white sheet of paper out to around 50 cm away, and it could reliably detect a hand out to around 30 cm away. The following graph shows the measured distances of five units versus their actual distances from a white paper target at several different ranges:

This sensor has 0.1″-pitch through holes that are compatible with 0.1″ headers. A functionally identical version is also available with a side-entry connector that works with our 3-pin JST SH-style cables.

Specifications

• Operating voltage: 3.0 V to 5.5 V
• Current consumption: 30 mA (typical) when enabled, 0.4 mA when disabled
• Maximum range: approximately 50 cm (20″)
• Minimum range: < 1 mm
• Resolution: 1 mm
• Minimum update rate: 142 Hz (7 ms period)
• Field of view (FOV): 10° typical; can vary with object reflectance and ambient conditions
• Emitter: eye-safe, 940 nm invisible Class 1 VCSEL (vertical cavity surface-emitting laser)
• Output type: digital pulse width
• Dimensions: 0.85″ × 0.35″ × 0.122″ (21.6 × 8.9 × 3.1 mm); see the dimension diagram (277k pdf) for more information
• Weight: 0.015 oz (0.4 g)

Using the sensor

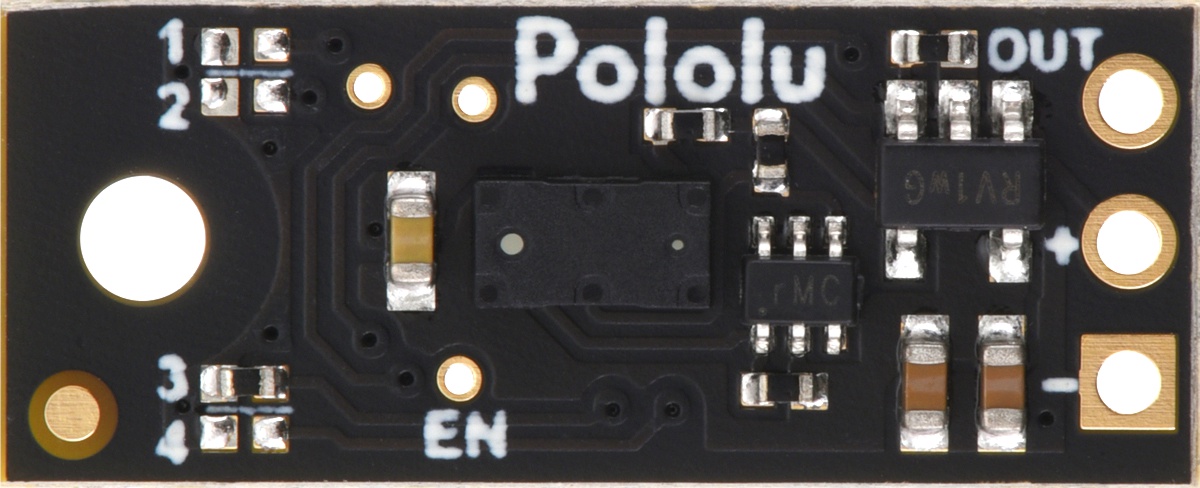

Three connections are necessary to use this module: VIN, GND, and OUT. These pins are accessible through a row of 0.1″-pitch through holes, which work with standard 0.1″ (2.54 mm) male headers and 0.1″ female headers (available separately). The VIN pin should be connected to a 3 V to 5.5 V source, and GND should be connected to 0 volts. The sensor outputs its digital pulses on the OUT pin. The low level of the pulses is 0 V, and the high level is VIN. A red LED on the back side of the board also lights whenever an object is detected (the closer the object, the brighter the LED).

The board has an optional ENABLE pin that can be driven low to put it into a low-power state that consumes approximately 0.4 mA. This pin can be accessed through a via or its neighboring surface-mount pad on the back side labeled “EN” on the silkscreen. The ENABLE pin is pulled up to VIN, enabling the sensor by default.

The board has one mounting hole intended for use with #2 or M2 screws.

Arduino program for reading pulse width output

This is a simple Arduino sketch that reads the output of the Pololu Distance Sensor with Pulse Width Output, 50cm Max and displays the measured distance in millimeters.

// Example Arduino program for reading the Pololu Distance Sensor with Pulse Width Output, 50cm Max

// Change this to match the Arduino pin connected to the sensor's OUT pin.
const uint8_t sensorPin = 2;

void setup()
{
  Serial.begin(115200);
}

void loop()
{
  int16_t t = pulseIn(sensorPin, HIGH);

  if (t == 0)
  {
    // pulseIn() did not detect the start of a pulse within 1 second.
    Serial.println("timeout");
  }
  else if (t > 1850)
  {
    // No detection.
    Serial.println(-1);
  }
  else
  {
    // Valid pulse width reading. Convert pulse width in microseconds to distance in millimeters.
    int16_t d = (t - 1000) * 3 / 4;

    // Limit minimum distance to 0.
    if (d < 0) { d = 0; }

    Serial.print(d);
    Serial.println(" mm");
  }
}

micro:bit MakeCode program for reading pulse width output

We have also created a MakeCode example program for the BBC micro:bit single-board computer that demonstrates how to read and convert the output of the Pololu Distance Sensor with Pulse Width Output, 50cm Max. The program’s output can be viewed in the MakeCode device console, which also plots the readings on a graph. You can open the program in the micro:bit MakeCode editor by clicking this link or the picture below.

Jumper settings for v2 short-range versions

This board features four surface-mount configuration jumpers that determine its operation mode. Different versions of the Pololu Digital Distance Sensors ship with the appropriate jumpers pre-populated with 0 Ω resistors. These resistors can be desoldered from the populated spots or solder bridges can be added across the unpopulated spots to convert one sensor version into another. This sensor can be converted into any other v2 short-range version as listed in the following table. (For more information about how the different output types work, see the product pages for representative versions.)

V2 short-range version jumper settings
Item #		Description	Maximum range(1)	Hysteresis	Resolution	Minimum update rate	Jumper settings (4321)
no connector	side-entry connector
#5550	#5460	Digital output, 5cm	5 cm	35 mm	-	142 Hz	0000
		Digital output, 5cm (high sensitivity)	5 cm	21 mm	-	66 Hz	0001
#5552	#5462	Digital output, 10cm	10 cm	35 mm	-	142 Hz	0010
		Digital output, 10cm (high sensitivity)	10 cm	21 mm	-	66 Hz	0011
#5554	#5464	Digital output, 15cm	15 cm	35 mm	-	142 Hz	0100
		Digital output, 15cm (high sensitivity)	15 cm	21 mm	-	66 Hz	0101
		Digital output, 20cm	20 cm	35 mm	-	142 Hz	0110
		Digital output, 20cm (high sensitivity)	20 cm	21 mm	-	66 Hz	0111
		Digital output, 30cm	30 cm	35 mm	-	142 Hz	1000
		Digital output, 30cm (high sensitivity)	30 cm	21 mm	-	66 Hz	1001
		Digital output, any detect	~100 cm	-	-	142 Hz	1010
		Digital output, any detect (high sensitivity)	~100 cm	-	-	66 Hz	1011
#5562	#5472	Pulse width output, 50cm max	~50 cm	-	1 mm (= 1.33 µs)	142 Hz	1100
		Pulse width output, 50cm max (high sensitivity)	~50 cm	-	1 mm (= 1.33 µs)	66 Hz	1101
		Pulse width output, 100cm max	~100 cm	-	1 mm (= 0.5 µs)	142 Hz	1110
		Pulse width output, 100cm max (high sensitivity)	~100 cm	-	1 mm (= 0.5 µs)	66 Hz	1111
Note 1: Effective range depends on object reflectivity and ambient lighting conditions.

Item numbers in this table indicate versions that we offer for sale as standard products, but we can manufacture the other versions on demand (or even make sensors with custom firmware for you). If you are interested in customization, please contact us.

The Pololu Digital Distance Sensor family

We have several versions of Pololu Digital Distance Sensors with different ranges, operating modes, and connector options:

High/low digital output (indicates detection within specified range; does not provide distance measurement)
Sensor type	Item #		Maximum range(1)	Minimum range	Hysteresis	Minimum update rate	Price
	no connector	side-entry connector
original short‑range (irs16a)	#4050		5 cm	< 5 mm	16 mm	145 Hz	$19.95
	#4052		10 cm		20 mm	115 Hz
	#4054		15 cm		24 mm	95 Hz
v2 short-range	#5550	#5460	5 cm	< 1 mm	35 mm	142 Hz	$19.95
	#5552	#5462	10 cm
	#5554	#5464	15 cm
long-range	#4066	#5480	25 cm	< 1 mm	50 mm	100 Hz	$24.95
	#4067	#5481	50 cm			100 Hz
	#4069	#5483	100 cm			100 Hz
	#4077	#5491	200 cm			30 Hz
Pulse width output (provides distance measurement encoded as the width of a digital pulse)
Sensor type	Item #		Maximum range(1)	Minimum range(2)	Resolution	Minimum update rate	Price
	no connector	side-entry connector
original short-range	#4064		~50 cm	1 cm	3 mm (= 4 µs)	50 Hz	$19.95
v2 short-range	#5562	#5472	~50 cm	< 0.1 cm	1 mm (= 1.33 µs)	142 Hz	$19.95
long-range	#4071	#5485	~130 cm	4 cm	1 mm (= 0.5 µs)	100 Hz	$24.95
	#4079	#5493	~300 cm	4 cm	2 mm (= 0.5 µs)	30 Hz
Note 1: Effective range depends on object reflectivity and ambient lighting conditions. Note 2: Objects closer than the minimum distance can still be detected, but the measured distance might be inaccurate. The minimum detection distance is < 5 mm for the original (irs16a) short-range sensors and < 1 mm for everything else.

The Pololu Digital Distance Sensor family includes several different sensor types. The jumper options are different for the different sensor types, so it is important to be able to identify which type you have if you want to change the jumper settings. The following diagram shows some key visual differences among the different sensor types:

Comparison of the different Pololu Digital Distance Sensor versions.

Within each sensor type, there are digital output versions that just report if an object is within their detection range and pulse width output versions that report the measured distance by encoding it as the width of a repeating digital pulse, similar to hobby servo control signals. The graphs below show some examples of the different possible output signals from the different Pololu Digital Distance Sensor versions.

Comparison to Sharp/Socle Digital Distance Sensors

These Pololu Digital Distance Sensors have the same general form factor and pinout as our carrier boards for the Sharp/Socle GP2Y0D8x digital distance sensors (the versions with through-holes have the same length and width while the versions with JST SH-style connectors are 0.05″ longer). They are available in the same 5 cm, 10 cm, and 15 cm ranges as the Sharp/Socle sensors, in addition to longer ranges of up to several meters. This means they can be used as replacements for these older modules, which are based on sensors that are no longer in production, and the longer-range versions can serve as upgrades that provide enhanced detection and measurement capabilities. The sensors on these newer units are much thinner than the Sharp modules, so the zero-range point is approximately 7 mm closer to the PCB, and the beam angle of the newer units is wider. The pictures below show side-by-side comparisons of the two:
