Pololu Digital Distance Sensors

We have several different versions of Pololu Digital Distance Sensors, all with the same dimensions and pinout:

Digital output
(does not provide distance measurement)
Sensor Maximum
range1
Minimum
range
Minimum
update
rate
Jumper
settings
(4321)
PCB ID Price
#4050: Digital output, 5cm 5 cm < 5 mm 145 Hz 0000 irs16a $12.95
#4052: Digital output, 10cm 10 cm < 5 mm 115 Hz 0010
#4054: Digital output, 15cm 15 cm < 5 mm 95 Hz 0100
#4066: Digital output, 25cm 25 cm < 1 mm 100 Hz 0000 irs17a $17.95
#4067: Digital output, 50cm 50 cm < 1 mm 100 Hz 0001
#4069: Digital output, 100cm 100 cm < 1 mm 100 Hz 0011
#4077: Digital output, 200cm 200 cm < 1 mm 30 Hz 1011

Pulse width output
(provides distance measurement)
Sensor Maximum
range1
Minimum
range2
Resolution Minimum
update
rate
Jumper
settings
(4321)
PCB ID Price
#4064: Pulse width output, 50cm max ~50 cm 1 cm 3 mm 50 Hz 1110 irs16a $12.95
#4071: Pulse width output, 130cm max ~130 cm 4 cm 1 mm 100 Hz 0101 irs17a $17.95
#4079: Pulse width output, 300cm max ~300 cm 4 cm 2 mm 30 Hz 1101

1 Effective range depends on object reflectivity and ambient lighting conditions.
2 Objects closer than the minimum distance can still be detected, but the measured distance might be inaccurate. The minimum detection range is < 5 mm for irs16a boards and < 1 mm for irs17a boards.


These are the output graphs for some of the digital output versions that just report if an object is in their detection range:

The output graph is a bit different for the versions that uses a pulse width to encode the measured distance. The output for these versions is similar to hobby servo control signals and is shown below as a function of time:

Products in category “Pololu Digital Distance Sensors”

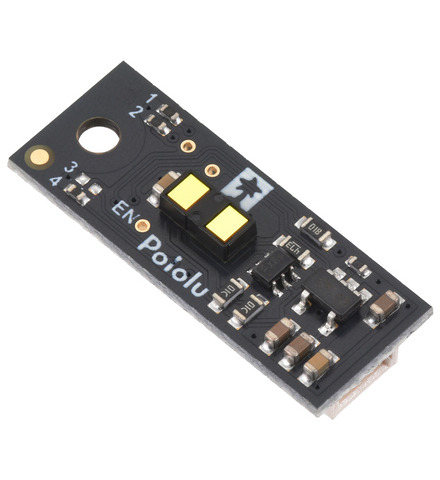

Pololu item #: 4050
Brand: Pololu
Status: Active and Preferred
RoHS 3 compliant
 Free add-on shipping in USA
This item could qualify for free shipping Free shipping in USA over $40
Temporarily out of stock. See product page to backorder.
Out of stock.
Quantity:

This small lidar-based distance sensor detects the presence of objects within 5 cm (2″). It has a single digital output that drives low when an object is being detected; otherwise, it is high. It works over an input voltage range of 3.0 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

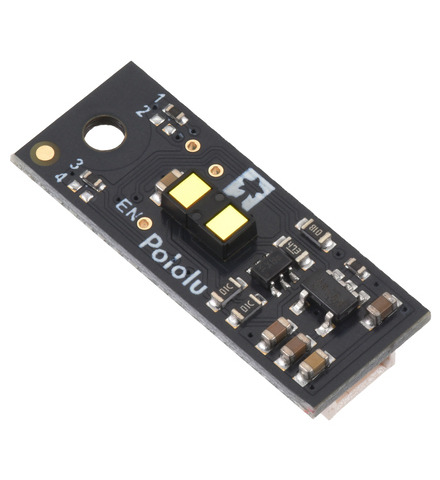

Pololu item #: 4052
Brand: Pololu
Status: Active and Preferred
RoHS 3 compliant
 Free add-on shipping in USA
This item could qualify for free shipping Free shipping in USA over $40
Temporarily out of stock. See product page to backorder.
Out of stock.
Quantity:

This small lidar-based distance sensor detects the presence of objects within 10 cm (4″). It has a single digital output that drives low when an object is being detected; otherwise, it is high. It works over an input voltage range of 3.0 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

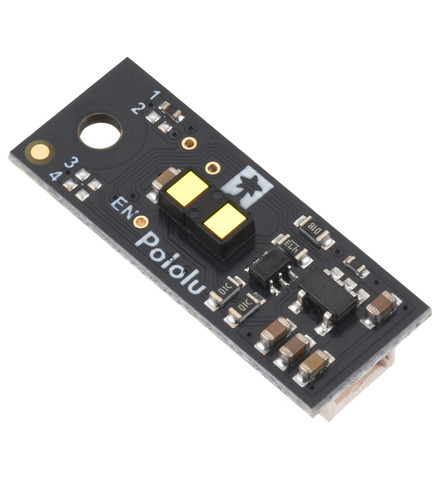

Pololu item #: 4054
Brand: Pololu
Status: Active and Preferred
RoHS 3 compliant
 Free add-on shipping in USA
This item could qualify for free shipping Free shipping in USA over $40
Temporarily out of stock. See product page to backorder.
Out of stock.
Quantity:

This small lidar-based distance sensor detects the presence objects within 15 cm (6″). It has a single digital output that drives low when an object is being detected; otherwise, it is high. It works over an input voltage range of 3.0 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

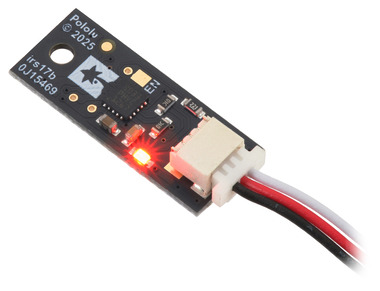

Pololu item #: 4066
Brand: Pololu
Status: Active and Preferred
RoHS 3 compliant
 Free add-on shipping in USA
This item could qualify for free shipping Free shipping in USA over $40
Temporarily out of stock. See product page to backorder.
Out of stock.
Quantity:

This small lidar-based distance sensor detects the presence of objects within 25 cm (10″). It has a single digital output that drives low when an object is being detected; otherwise, it is high. It works over an input voltage range of 3.0 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

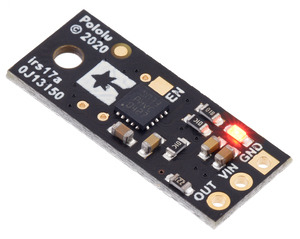

Pololu item #: 4067
Brand: Pololu
Status: Active and Preferred
RoHS 3 compliant
 Free add-on shipping in USA
This item could qualify for free shipping Free shipping in USA over $40
Temporarily out of stock. See product page to backorder.
Out of stock.
Quantity:

This small lidar-based distance sensor detects the presence of objects within 50 cm (20″). It has a single digital output that drives low when an object is being detected; otherwise, it is high. It works over an input voltage range of 3.0 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Pololu item #: 4069
Brand: Pololu
Status: Active and Preferred
RoHS 3 compliant
 Free add-on shipping in USA
This item could qualify for free shipping Free shipping in USA over $40
Temporarily out of stock. See product page to backorder.
Out of stock.
Quantity:

This small lidar-based distance sensor detects the presence of objects within 100 cm (39″). It has a single digital output that drives low when an object is being detected; otherwise, it is high. It works over an input voltage range of 3.0 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Pololu item #: 4077
Brand: Pololu
Status: Active and Preferred
RoHS 3 compliant
 Free add-on shipping in USA
This item could qualify for free shipping Free shipping in USA over $40
Temporarily out of stock. See product page to backorder.
Out of stock.
Quantity:

This small lidar-based distance sensor detects the presence of objects within 200 cm (79″). It has a single digital output that drives low when an object is being detected; otherwise, it is high. It works over an input voltage range of 3.0 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Pololu item #: 4064
Brand: Pololu
Status: Active and Preferred
RoHS 3 compliant
 Free add-on shipping in USA
This item could qualify for free shipping Free shipping in USA over $40
Temporarily out of stock. See product page to backorder.
Out of stock.
Quantity:

This small lidar-based distance sensor reports the distance of objects up to about 50 cm (20″) away with a pulsed signal similar to a hobby servo control signal. A digital microcontroller pin can be used to time the length of each high pulse, which encodes the measured distance. The sensor works over an input voltage range of 3.0 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Note: The maximum range of 50 cm is only achievable for high-reflectance objects in good ambient conditions. Lower-reflectivity targets or poor ambient conditions will reduce the maximum range.

Pololu item #: 4071
Brand: Pololu
Status: Active and Preferred
RoHS 3 compliant
 Free add-on shipping in USA
This item could qualify for free shipping Free shipping in USA over $40
Temporarily out of stock. See product page to backorder.
Out of stock.
Quantity:

This small lidar-based distance sensor reports the distance of objects up to about 130 cm (50″) away with a pulsed signal similar to a hobby servo control signal. A digital microcontroller pin can be used to time the length of each high pulse, which encodes the measured distance. The sensor works over an input voltage range of 3.0 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Note: The maximum range of 130 cm is only achievable for high-reflectance objects in good ambient conditions. Lower-reflectivity targets or poor ambient conditions will reduce the maximum range.

Pololu item #: 4079
Brand: Pololu
Status: Active and Preferred
RoHS 3 compliant
 Free add-on shipping in USA
This item could qualify for free shipping Free shipping in USA over $40
Temporarily out of stock. See product page to backorder.
Out of stock.
Quantity:

This small lidar-based distance sensor reports the distance of objects up to about 300 cm (120″) away with a pulsed signal similar to a hobby servo control signal. A digital microcontroller pin can be used to time the length of each high pulse, which encodes the measured distance. The sensor works over an input voltage range of 3.0 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Note: The maximum range of 300 cm is only achievable for high-reflectance objects in good ambient conditions. Lower-reflectivity targets or poor ambient conditions will reduce the maximum range.
