12V, 125mA Isolated Step-Up Voltage Regulator U5Z9F12
Pololu item #: 5767
Brand: Pololu supply outlook
Status: Active and Preferred
RoHS 3 compliant
Coupons available:
Price break Unit price (US$)
1 9.95
5 9.15
25 8.42
100 7.75

backorders allowed

This step-up voltage regulator consists of a pair of isolated DC-to-DC power modules in front of a step-up (boost) regulator. This enables up to 125 mA continuous at 12 V out from a 5 V input with full galvanic isolation between the input and output. The 5 V output of one isolation IC and the 10 V output of the pair of isolation ICs in series are also available.

Input voltage Output voltages Max continuous output current Size
4.5 V to 5.5 V 12 V 125 mA* 0.45″ × 1.0″
10 V 175 mA*
5 V 300 mA*

* Max current per channel when the other channel currents are zero.

Alternatives available with variations in these parameter(s): output voltage Select variant…

Compare all products in Step-Up (Boost) Voltage Regulators or Isolated DC-DC Power Modules.

 Description Specs (12) Pictures (10) Resources (4) FAQs (0) On the blog (0) Distributors (0)

12V, 125mA Isolated Step-Up Voltage Regulator U5Z9F12.

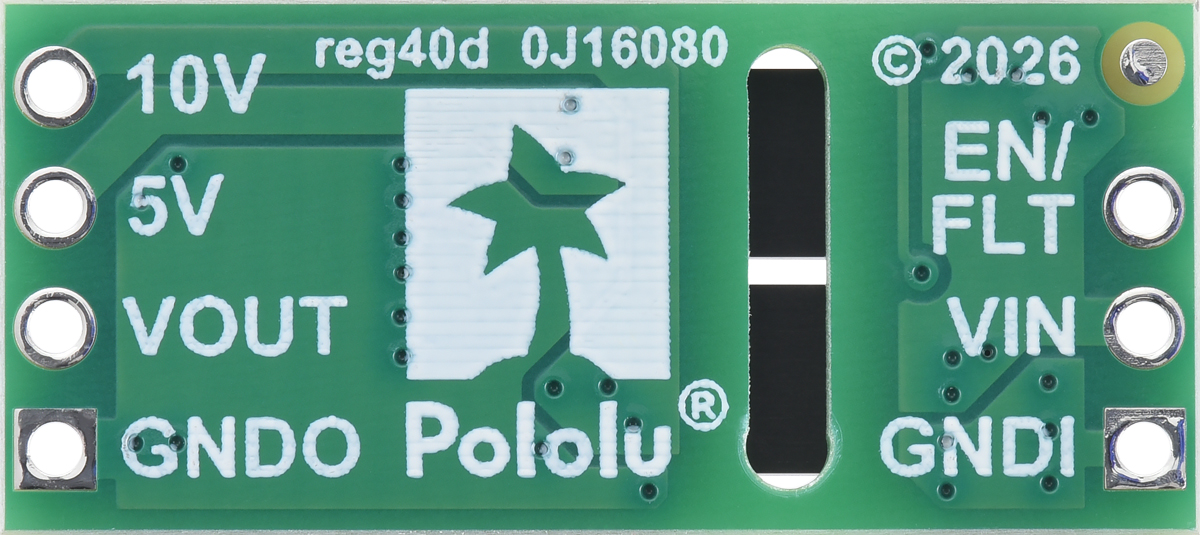

Isolated Step-Up Voltage Regulator U5Z9Fx, bottom view.

Pinout of the Isolated Step-Up Voltage Regulator U5Z9Fx.

Isolated Step-Up Voltage Regulator U5Z9Fx, bottom view with dimensions and a US quarter for size reference.

12V, 125mA Isolated Step-Up Voltage Regulator U5Z9F12, top view.

Isolated Step-Up Voltage Regulator U5Z9Fx, bottom view.

Typical efficiency of the U5Z9F12 12V output as a function of the output current.

Typical quiescent current of the 12V, 100mA Isolated Step-Up Voltage Regulator U5Z9Fx.

Block diagram of the Isolated Step-Up Voltage Regulator U5Z9Fx.

Thermal image showing the two isolation modules heating up during operation.
