12V, 100mA Isolated Step-Up Voltage Regulator U5Z6F12
This step-up voltage regulator consists of an isolated DC-to-DC power module in front of a step-up (boost) regulator. This enables up to 100 mA continuous at 12 V out from a 5 V input with full galvanic isolation between the input and output. The 5 V, 300 mA output of the isolation IC is also available.
| Input voltage | Output voltages | Max continuous output current | Size |
|---|---|---|---|
| 4.5 V to 5.5 V | 12 V | 100 mA* | 0.4″ × 1.0″ |
| 5 V | 300 mA* |
* Max current per channel when the other channel current is zero.
Compare all products in Isolated DC-DC Power Modules or Step-Up (Boost) Voltage Regulators.
| Description | Specs (12) | Pictures (8) | Resources (4) | FAQs (0) | On the blog (0) | Distributors (0) |
|---|
|
12V, 100mA Isolated Step-Up Voltage Regulator U5Z6F12. |
|---|
 |
12V, 100mA Isolated Step-Up Voltage Regulator U5Z6F12. |
|---|
 |
Pinout of the 12V, 100mA Isolated Step-Up Voltage Regulator U5Z6F12. |
|---|
 |

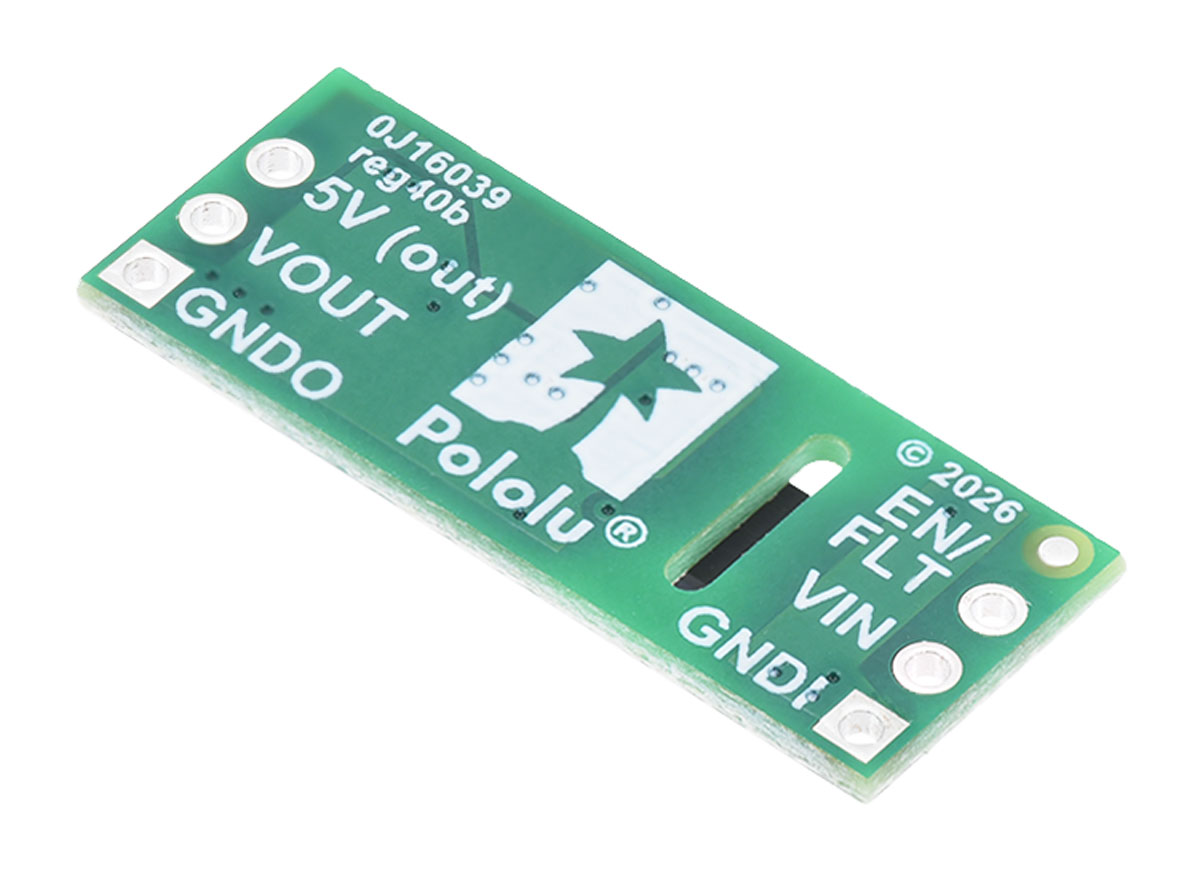

12V, 100mA Isolated Step-Up Voltage Regulator U5Z6F12, bottom view with dimensions and a US quarter for size reference. |
|---|
 |

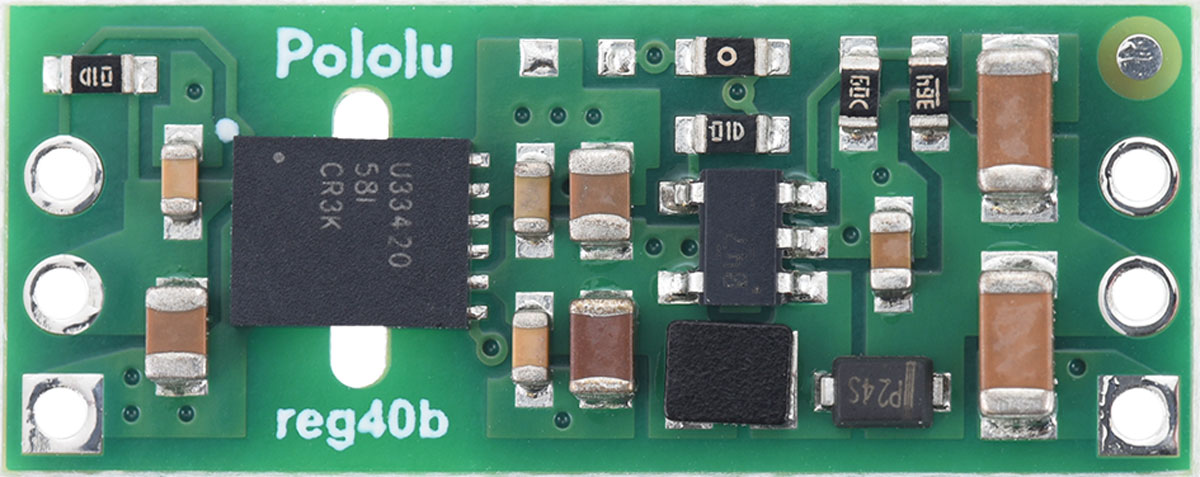

12V, 100mA Isolated Step-Up Voltage Regulator U5Z6F12, top view. |
|---|
 |

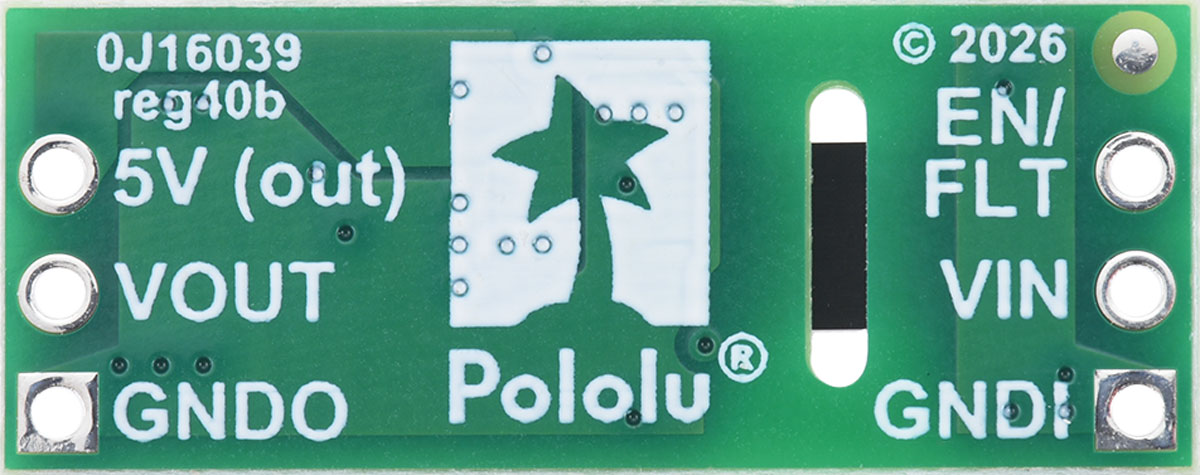

12V, 100mA Isolated Step-Up Voltage Regulator U5Z6F12, bottom view. |
|---|
 |
Typical efficiency of the U5Z6F12 12V output as a function of output current. |
|---|
 |
Typical quiescent current of the 12V, 100mA Isolated Step-Up Voltage Regulator U5Z6F12. |
|---|
