JST PH-Style Cable with Female Pins for 0.1" Housings, 6-Pin, 30cm

Details for item #5641

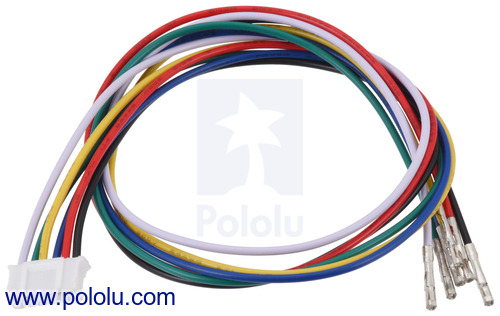

This product is a 6-conductor, 30 cm (12″) cable with a 6-pin female JST PH-type connector (2mm pitch) on one end and female crimp pins for 0.1″ housings on the other.

JST PH-Style Cable with Female Pins for 0.1" Housings, 6-Pin, 30cm.

JST PH-style cable family overview

Our JST PH-style cables are available in a variety of pin counts and lengths. Double-sided versions are available with twisted wires and female JST PH connectors on both ends, and single-sided versions are available with a JST PH connector on one end and female crimp pins for 0.1″ housings on the other.

JST PH-Style Cable, 4-Pin, Female-Female, 16cm.

JST PH-Style Cable with Female Pins for 0.1" Housings, 4-Pin, 30cm.

These crimp pins, which are the same as those on our wires with pre-crimped terminals, are compatible with our assortment of crimp connector housings (see the pictures below for some examples) and work with standard 0.1″ male headers. The crimp pins can be cut off if they are not needed, and remember that the double-sided cables can also be cut in half to get single-sided cables that are 5 cm, 8 cm, and 20 cm long.

Crimped ends of the JST PH-Style Cable with 1×1-pin crimp connector housings.

JST PH-Style Cable with Female Pins for 0.1" Housings, 6-Pin, 12cm with a 1×6-pin crimp connector housing.

The JST PH-style connector has a 2 mm pitch, and the cables are made from 24 AWG wires that conform to UL 1007. They are rated for 2 A and 100 V. For all versions in the following table, the black wire connects to pin 1 and the red wire connects to pin 2. The 4-pin cables are physically compatible with Adafruit’s STEMMA connectors, but note that the wire color order is different (Adafruit’s cables have the black and red wires on pins 4 and 3, respectively).

	Pins	Terminations	Length	Item #	Price
	1×2	double-sided (JST PH to JST PH)	10 cm (4″)	#5603	$1.44
			16 cm (6.3″)	#5604	$1.54
			25 cm (10″)	#5605	$1.70
			40 cm (16″)	#5606	$1.97
			63 cm (25″)	#5607	$2.38
		single-sided (JST PH to 0.1″ crimp pins)	12 cm (4.5″)	#5600	$1.47
			30 cm (12″)	#5601	$1.79
			75 cm (30″)	#5602	$2.60
	1×3	double-sided (JST PH to JST PH)	10 cm (4″)	#5613	$1.88
			16 cm (6.3″)	#5614	$2.05
			25 cm (10″)	#5615	$2.29
			40 cm (16″)	#5616	$2.69
			63 cm (25″)	#5617	$3.31
		single-sided (JST PH to 0.1″ crimp pins)	12 cm (4.5″)	#5610	$1.94
			30 cm (12″)	#5611	$2.42
			75 cm (30″)	#5612	$3.63
	1×4	double-sided (JST PH to JST PH)	10 cm (4″)	#5623	$2.33
			16 cm (6.3″)	#5624	$2.55
			25 cm (10″)	#5625	$2.87
			40 cm (16″)	#5626	$3.41
			63 cm (25″)	#5627	$4.23
		single-sided (JST PH to 0.1″ crimp pins)	12 cm (4.5″)	#5620	$2.41
			30 cm (12″)	#5621	$3.05
			75 cm (30″)	#5622	$4.66
	1×5	double-sided (JST PH to JST PH)	10 cm (4″)	#5633	$2.78
			16 cm (6.3″)	#5634	$3.05
			25 cm (10″)	#5635	$3.46
			40 cm (16″)	#5636	$4.13
			63 cm (25″)	#5637	$5.16
		single-sided (JST PH to 0.1″ crimp pins)	12 cm (4.5″)	#5630	$2.87
			30 cm (12″)	#5631	$3.68
			75 cm (30″)	#5632	$5.70
	1×6	double-sided (JST PH to JST PH)	10 cm (4″)	#5643	$3.23
			16 cm (6.3″)	#5644	$3.56
			25 cm (10″)	#5645	$4.04
			40 cm (16″)	#5646	$4.85
			63 cm (25″)	#5647	$6.08
		single-sided (JST PH to 0.1″ crimp pins)	12 cm (4.5″)	#5640	$3.34
			30 cm (12″)	#5641	$4.31
			75 cm (30″)	#5642	$6.73
