6-Pin JST PH-Style Cables

These 6-conductor, 2mm-pitch JST PH-style cables are available in a variety lengths. Double-sided versions are available with twisted wires and female JST PH connectors on both ends, and single-sided versions are available with a JST PH connector on one end and female crimp pins for 0.1″ housings on the other.

JST PH-Style Cable, 6-Pin, Female-Female, 16cm.

JST PH-Style Cable with Female Pins for 0.1" Housings, 6-Pin, 12cm.

These crimp pins are compatible with our assortment of crimp connector housings and work with standard 0.1″ male headers. The crimp pins can be cut off if they are not needed, and remember that the double-sided cables can also be cut in half to get single-sided cables that are 5 cm, 8 cm, and 20 cm long.

The cables are made from 24 AWG wires that conform to UL 1007, and they are rated for 2 A and 100 V. The color order is the same for all versions in the table below, with the black wire on pin 1 and the red wire on pin 2.

Pins Terminations Length Item # Price
6 double-sided
(JST PH to JST PH)
10 cm (4″) #5643 $3.23
16 cm (6.3″) #5644 $3.56
25 cm (10″) #5645 $4.04
40 cm (16″) #5646 $4.85
63 cm (25″) #5647 $6.08
single-sided
(JST PH to 0.1″ crimp pins)
12 cm (4.5″) #5640 $3.34
30 cm (12″) #5641 $4.31
75 cm (30″) #5642 $6.73

Products in category “6-Pin JST PH-Style Cables”

Pololu item #: 5643
Brand: PCX supply outlook
Status: Active and Preferred
RoHS 3 compliant
Out of stock.
Quantity:

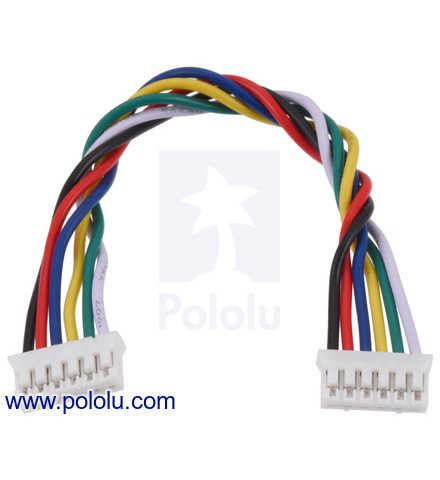

This 6-conductor, 10 cm (4″) cable has 24 AWG wires and 6-pin female JST PH-type connectors (2mm pitch) on both ends

Pololu item #: 5644
Brand: PCX supply outlook
Status: Active and Preferred
RoHS 3 compliant
Out of stock.
Quantity:

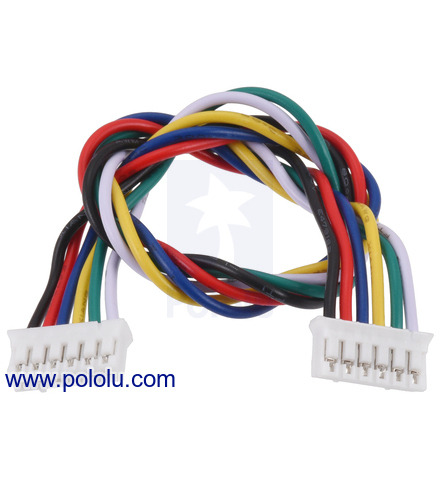

This 6-conductor, 16 cm (6.3″) cable has 24 AWG wires and 6-pin female JST PH-type connectors (2mm pitch) on both ends

Pololu item #: 5645
Brand: PCX supply outlook
Status: Active and Preferred
RoHS 3 compliant
Out of stock.
Quantity:

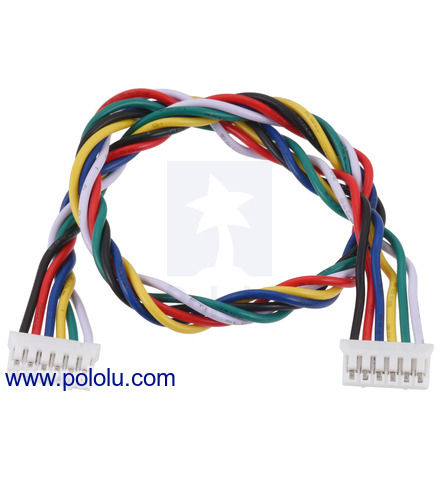

This 6-conductor, 25 cm (10″) cable has 24 AWG wires and 6-pin female JST PH-type connectors (2mm pitch) on both ends

Pololu item #: 5646
Brand: PCX supply outlook
Status: Active and Preferred
RoHS 3 compliant
Out of stock.
Quantity:

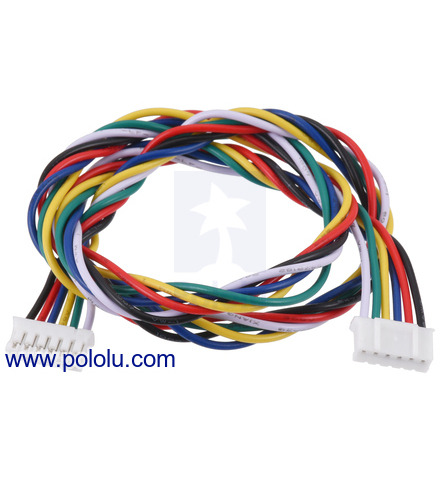

This 6-conductor, 40 cm (16″) cable has 24 AWG wires and 6-pin female JST PH-type connectors (2mm pitch) on both ends

Pololu item #: 5647
Brand: PCX supply outlook
Status: Active and Preferred
RoHS 3 compliant
Out of stock.
Quantity:

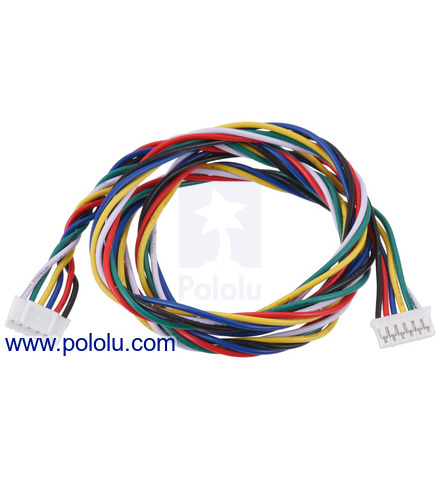

This 6-conductor, 63 cm (25″) cable has 24 AWG wires and 6-pin female JST PH-type connectors (2mm pitch) on both ends

Pololu item #: 5640
Brand: PCX supply outlook
Status: Active and Preferred
RoHS 3 compliant
Out of stock.
Quantity:

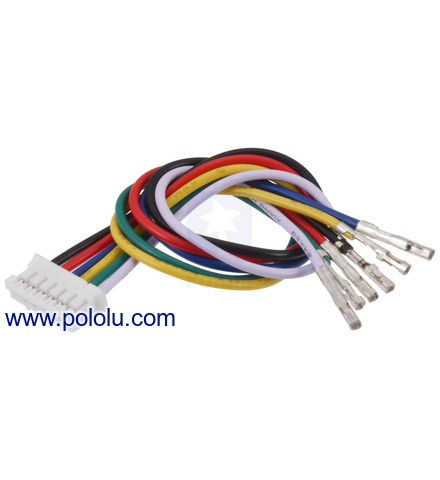

This 6-conductor, 12 cm (4.5″) cable has 24 AWG wires and a 6-pin female JST PH-type connector (2mm pitch) on one end. The other ends of the wires are terminated with female crimp pins for 0.1″ housings that are compatible with standard 0.1″ male headers.

Pololu item #: 5641
Brand: PCX supply outlook
Status: Active and Preferred
RoHS 3 compliant
Out of stock.
Quantity:

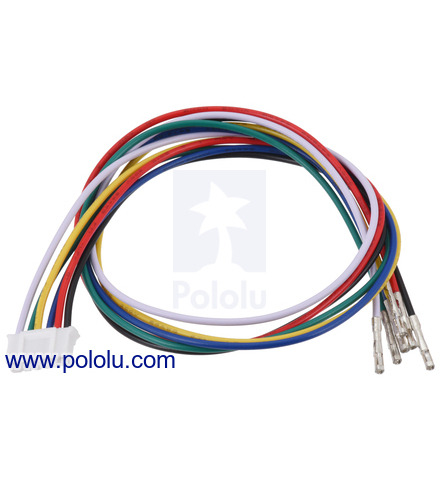

This 6-conductor, 30 cm (12″) cable has 24 AWG wires and a 6-pin female JST PH-type connector (2mm pitch) on one end. The other ends of the wires are terminated with female crimp pins for 0.1″ housings that are compatible with standard 0.1″ male headers.

Pololu item #: 5642
Brand: PCX supply outlook
Status: Active and Preferred
RoHS 3 compliant
Out of stock.
Quantity:

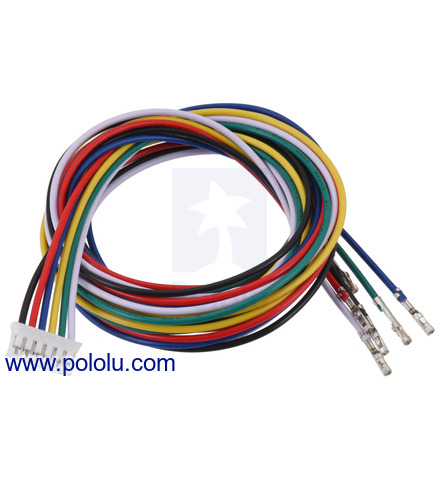

This 6-conductor, 75 cm (30″) cable has 24 AWG wires and a 6-pin female JST PH-type connector (2mm pitch) on one end. The other ends of the wires are terminated with female crimp pins for 0.1″ housings that are compatible with standard 0.1″ male headers.
