3-Pin JST PH-Style Cables
These 3-conductor, 2mm-pitch JST PH-style cables are available in a variety lengths. Double-sided versions are available with twisted wires and female JST PH connectors on both ends, and single-sided versions are available with a JST PH connector on one end and female crimp pins for 0.1″ housings on the other.
|
|
These crimp pins are compatible with our assortment of crimp connector housings and work with standard 0.1″ male headers. The crimp pins can be cut off if they are not needed, and remember that the double-sided cables can also be cut in half to get single-sided cables that are 5 cm, 8 cm, and 20 cm long.
The cables are made from 24 AWG wires that conform to UL 1007, and they are rated for 2 A and 100 V. The color order is the same for all versions in the table below, with the black wire on pin 1, the red wire on pin 2, and the white wire on pin 3.
| Pins | Terminations | Length | Item # | Price | |
|---|---|---|---|---|---|
 |
3 | double-sided (JST PH to JST PH) |
10 cm (4″) | #5613 | $1.88 |
| 16 cm (6.3″) | #5614 | $2.05 | |||
| 25 cm (10″) | #5615 | $2.29 | |||
| 40 cm (16″) | #5616 | $2.69 | |||
| 63 cm (25″) | #5617 | $3.31 | |||
| single-sided (JST PH to 0.1″ crimp pins) |
12 cm (4.5″) | #5610 | $1.94 | ||
| 30 cm (12″) | #5611 | $2.42 | |||
| 75 cm (30″) | #5612 | $3.63 | |||
We also have several 3-pin cable versions intended for use with Sharp distance sensor; these cables have a different color order that matches the sensor pinout (red on pin 1 for power, black on pin 2 for ground, and white on pin 3 for signal):
| Pins | Terminations | Length | Item # | Price | |
|---|---|---|---|---|---|
 |
3 | JST PH to female 0.1″ crimp pins | 30 cm (12″) | #1798 | $2.95 |
| JST PH to male 0.1″ crimp pins | #1798 | $2.95 | |||
| JST PH to unterminated | #117 | $1.95 | |||
Compare all products in this category
Products in category “3-Pin JST PH-Style Cables”
| Pololu item #: 5613 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|

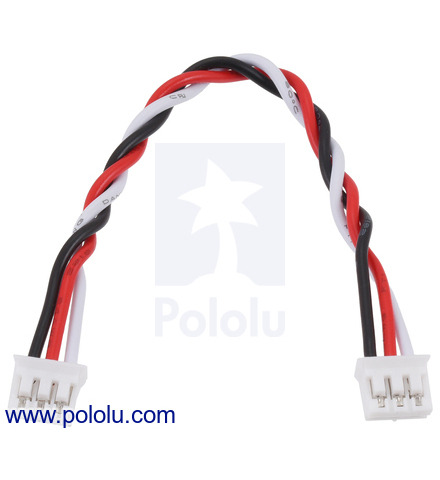

This 3-conductor, 10 cm (4″) cable has 24 AWG wires and 3-pin female JST PH-type connectors (2mm pitch) on both ends
| Pololu item #: 5614 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|

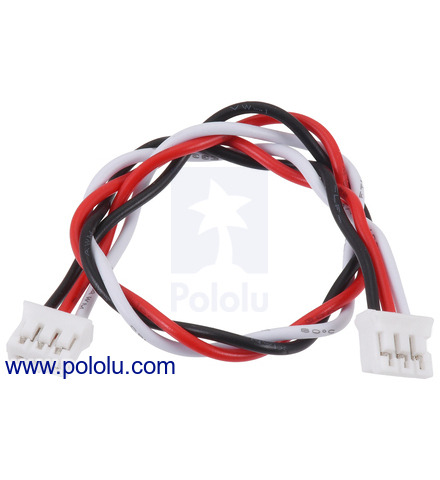

This 3-conductor, 16 cm (6.3″) cable has 24 AWG wires and 3-pin female JST PH-type connectors (2mm pitch) on both ends
| Pololu item #: 5615 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|

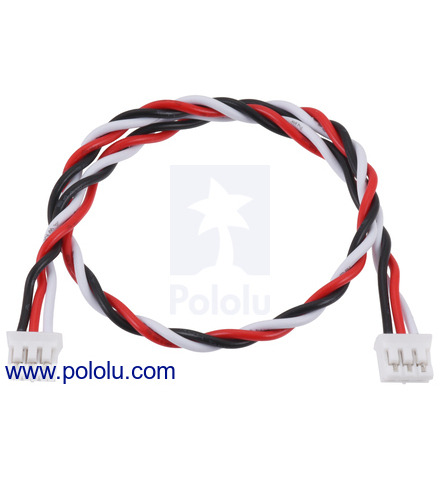

This 3-conductor, 25 cm (10″) cable has 24 AWG wires and 3-pin female JST PH-type connectors (2mm pitch) on both ends
| Pololu item #: 5616 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|

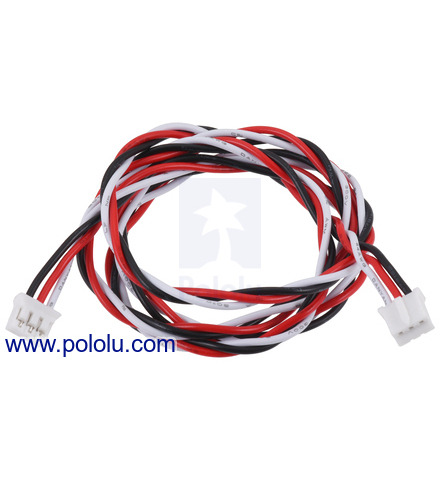

This 3-conductor, 40 cm (16″) cable has 24 AWG wires and 3-pin female JST PH-type connectors (2mm pitch) on both ends
| Pololu item #: 5617 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|

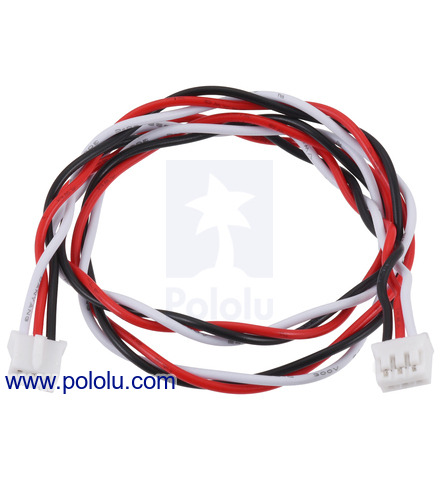

This 3-conductor, 63 cm (25″) cable has 24 AWG wires and 3-pin female JST PH-type connectors (2mm pitch) on both ends
| Pololu item #: 5610 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|

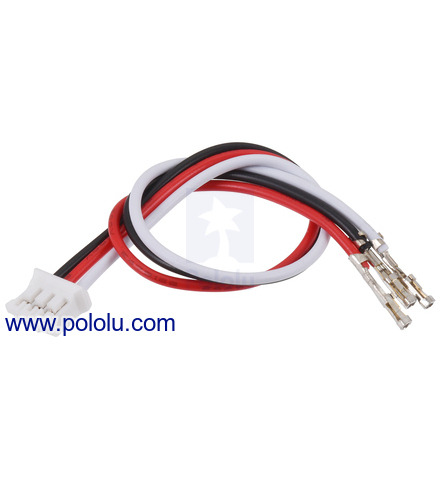

This 3-conductor, 12 cm (4.5″) cable has 24 AWG wires and a 3-pin female JST PH-type connector (2mm pitch) on one end. The other ends of the wires are terminated with female crimp pins for 0.1″ housings that are compatible with standard 0.1″ male headers.
| Pololu item #: 5611 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|
This 3-conductor, 30 cm (12″) cable has 24 AWG wires and a 3-pin female JST PH-type connector (2mm pitch) on one end. The other ends of the wires are terminated with female crimp pins for 0.1″ housings that are compatible with standard 0.1″ male headers.
| Pololu item #: 5612 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|

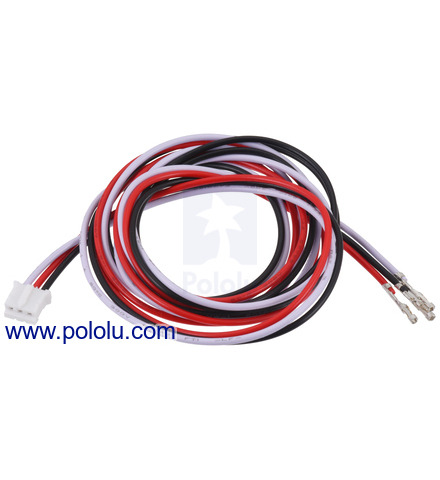

This 3-conductor, 75 cm (30″) cable has 24 AWG wires and a 3-pin female JST PH-type connector (2mm pitch) on one end. The other ends of the wires are terminated with female crimp pins for 0.1″ housings that are compatible with standard 0.1″ male headers.
| Pololu item #: 117 | |
| supply outlook | |
|
|
|
This 30 cm (12″) cable has 26 AWG wires and a 3-pin female JST PH-style connector that works with Sharp analog distance sensors that have mating PH connectors. The other ends of the wires are unterminated; they can be cut to length to match your application.
Note: The wire color order of this cable matches the Sharp distance sensor pinout (red on pin 1 for power, black on pin 2 for ground, and white on pin 3 for signal); this differs from the color order convention followed by most of our other JST PH cables.
| Pololu item #: 1798 | |
| Brand: PCX | supply outlook |
|
|
|
This 30 cm (12″) cable has 26 AWG wires and a 3-pin female JST PH-style connector that works with Sharp analog distance sensors that have mating PH connectors. The other ends of the wire are terminated with female pins for 0.1" housing.
Note: The wire color order of this cable matches the Sharp distance sensor pinout (red on pin 1 for power, black on pin 2 for ground, and white on pin 3 for signal); this differs from the color order convention followed by most of our other JST PH cables.
| Pololu item #: 1799 | |
| Brand: PCX | supply outlook |
|
|
|
30 cm (12″) cable has 26 AWG wires with a 3-pin female JST PH-style connector that works with Sharp analog distance sensors that have mating PH connectors. The other ends of the wire are terminated with male pins for 0.1" housing.
Note: The wire color order of this cable matches the Sharp distance sensor pinout (red on pin 1 for power, black on pin 2 for ground, and white on pin 3 for signal); this differs from the color order convention followed by most of our other JST PH cables.
