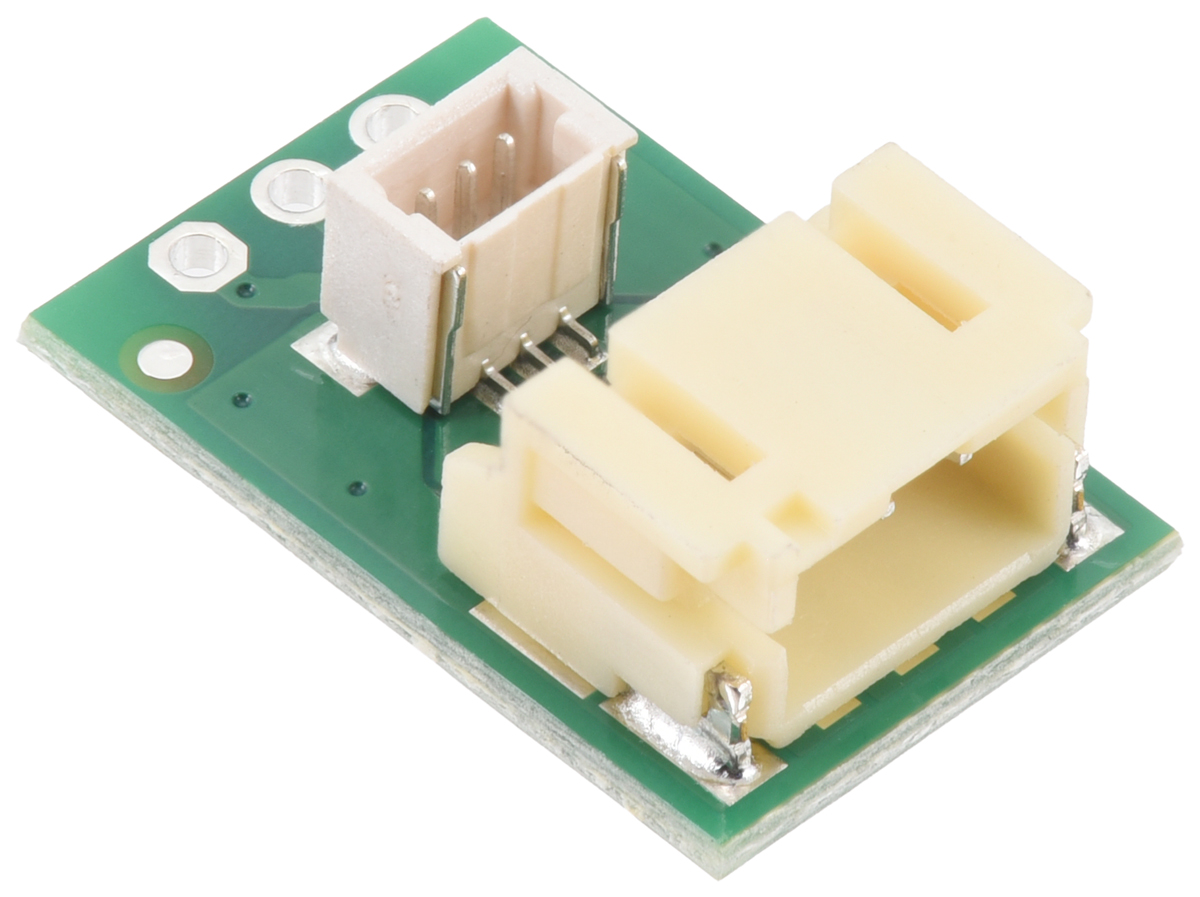

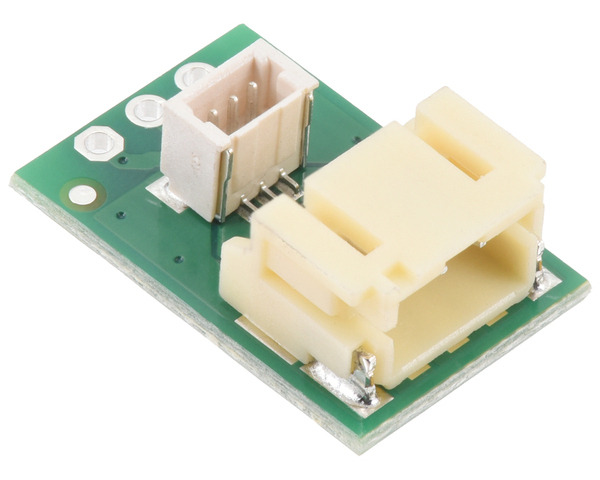

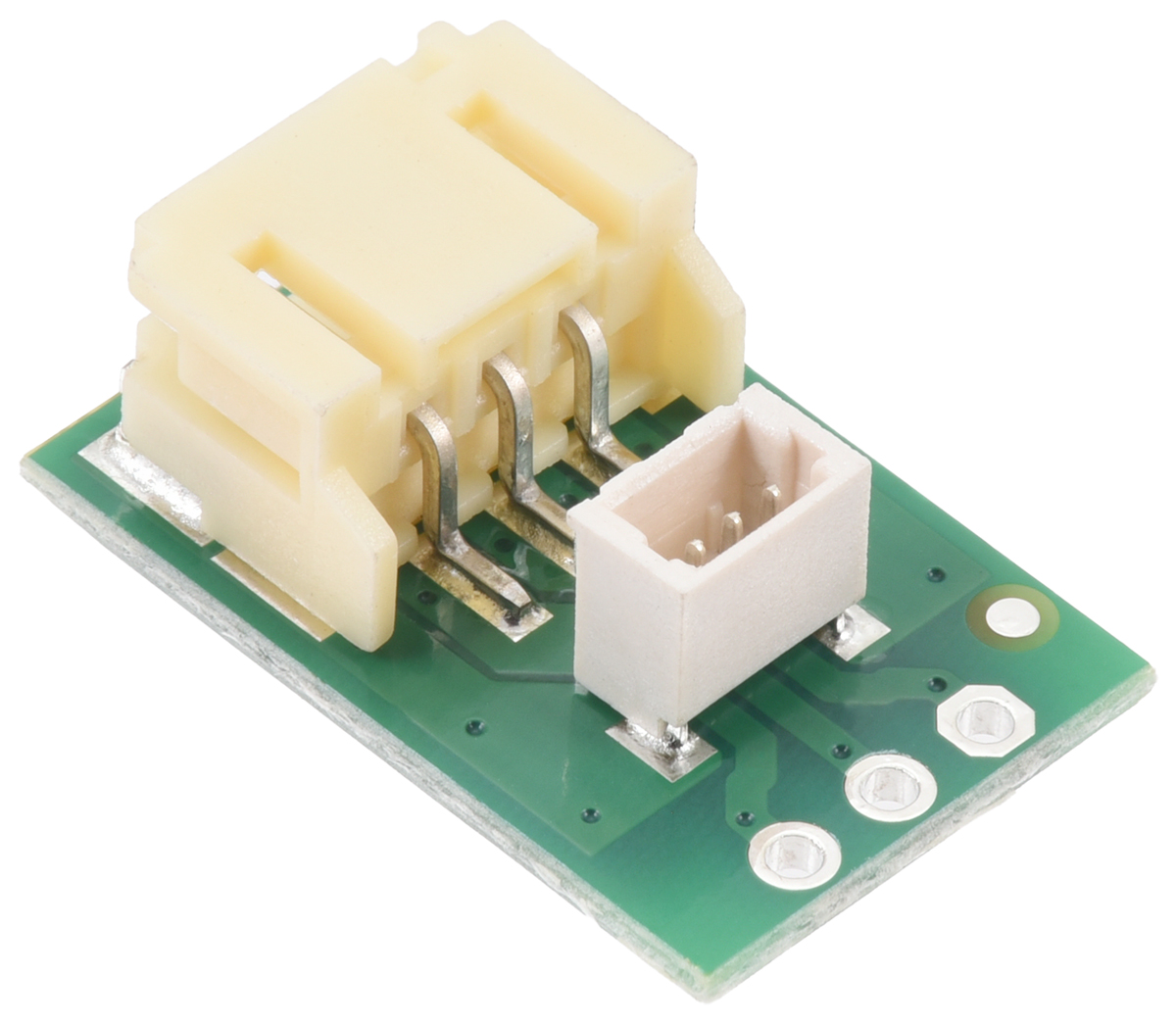

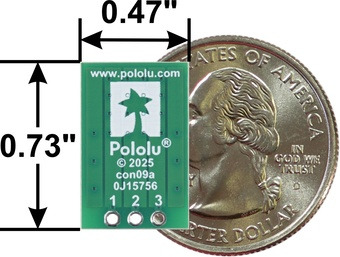

This product is a JST PH-style connector adapter board with a 3-pin, side-entry connector.
We have various cables that work with the 2mm-pitch JST PH-style connector on this breakout board, available in double-sided or single-sided versions of varying lengths. The double-sided versions have twisted wires and female JST PH-type connectors on both ends, and single-sided versions have a female connector on one end female crimp pins for 0.1″ housings on the other:
|
JST PH-Style 3-Pin Cables |
|
Pins |
Terminations |
Length |
Item # |
Price |
|
|
 |
3 |
double-sided
(JST PH to JST PH) |
10 cm (4″) |
#5613 |
$1.88 |
| 16 cm (6.3″) |
#5614 |
$2.05 |
| 25 cm (10″) |
#5615 |
$2.29 |
| 40 cm (16″) |
#5616 |
$2.69 |
| 63 cm (25″) |
#5617 |
$3.31 |
single-sided
(JST PH to 0.1″ crimp pins) |
12 cm (4.5″) |
#5610 |
$1.94 |
| 30 cm (12″) |
#5611 |
$2.42 |
| 75 cm (30″) |
#5612 |
$3.63 |
This board also includes a smaller (1mm-pitch), 3-pin, top-entry JST SH-style connector in parallel with the PH-style connector, offering an additional connection option for your project. The inclusion of both connectors also enables the board to be used as a PH-to-SH adapter. The following cables are compatible with the JST SH-style connector:
|
JST SH-Style 3-Pin Cables |
|
Pins |
Terminations |
Length |
Item # |
Price |
|
|
 |
3 |
double-sided
(female-female) |
10 cm (4″) |
#5513 |
$1.80 |
| 16 cm (6.3″) |
#5514 |
$1.95 |
| 25 cm (10″) |
#5515 |
$2.18 |
| 40 cm (16″) |
#5516 |
$2.55 |
| 63 cm (25″) |
#5517 |
$3.12 |
single-sided
(female-unterminated) |
12 cm (4.5″) |
#5510 |
$1.11 |
| 30 cm (12″) |
#5511 |
$1.56 |
| 75 cm (30″) |
#5512 |
$2.68 |
Breakout for JST PH-style connector family overview
Our JST PH-type connector breakout boards provide access to each pin on a row of 0.1″-pitch through holes, making them compatible with standard solderless breadboards. They are available in a variety of pin counts and connector styles.
| Top entry |
Side entry |
|
|
| 2-pin |
 |
 |
|
|
| 3-pin |
 |
 |
|
|
| 4-pin |
 |
 |
|
|
| 5-pin |
 |
 |
|
|
| 6-pin |
 |
 |
The larger, 2mm-pitch JST PH-style connectors are rated for up to 2 A and are compatible with our female JST PH-style cables. The smaller, 1mm-pitch JST SH-style connectors are rated for up to 1 A and are compatible with our female JST SH-style cables. The boards can serve as breakouts for either connector, or they can serve as JST PH to SH adapters if both are used at the same time. (Note: We also have smaller breakout boards with just the JST SH-style connector for applications where PH connectivity is not required.)
 |
Breakout boards for JST PH-style connectors can be used as JST PH to JST SH adapters. |
|---|
The through-holes work with standard 0.1″ (2.54 mm) male headers and 0.1″ female headers as well as with our 0.1″ screw terminal blocks, all of which are available separately:
 | Breakout boards for JST PH-style connectors in a breadboard. |
|---|
|
 | Breakout boards for JST PH-style connectors are compatible with Pololu’s 0.1″ terminal blocks. |
|---|
|
