Our JST PH-type connector breakout boards provide access to each pin on a row of 0.1″-pitch through holes, making them compatible with standard solderless breadboards. They are available in a variety of pin counts and connector styles.
| Top entry |
Side entry |
|
|
| 2-pin |
 |
 |
|
|
| 3-pin |
 |
 |
|
|
| 4-pin |
 |
 |
|
|
| 5-pin |
 |
 |
|
|
| 6-pin |
 |
 |
The larger, 2mm-pitch JST PH-style connectors are rated for up to 2 A and are compatible with our female JST PH-style cables. The smaller, 1mm-pitch JST SH-style connectors are rated for up to 1 A and are compatible with our female JST SH-style cables. The boards can serve as breakouts for either connector, or they can serve as JST PH to SH adapters if both are used at the same time. (Note: We also have smaller breakout boards with just the JST SH-style connector for applications where PH connectivity is not required.)

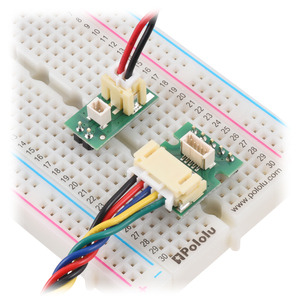

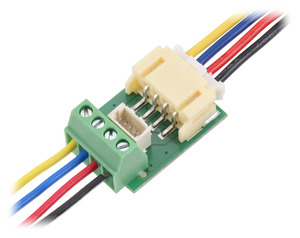

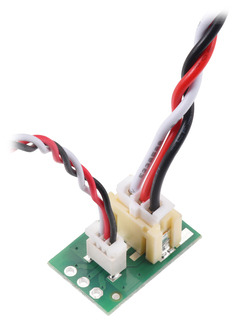

As shown in the pictures above, the through-holes work with standard 0.1″ (2.54 mm) male headers and 0.1″ female headers as well as with our 0.1″ screw terminal blocks, all of which are available separately.
Compare all products in this category
Products in category “JST PH-Style Connector Boards”

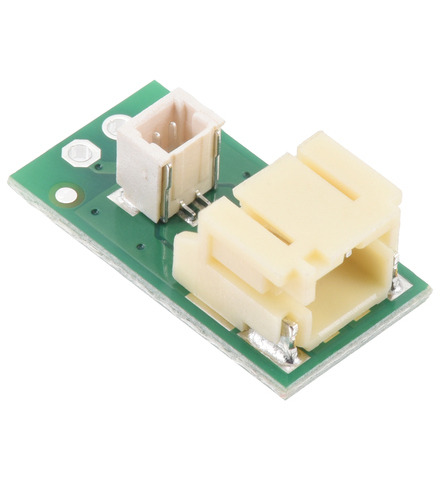

This simple board serves as an adapter between a JST PH-style 2-pin, top-entry connector and breadboard-compatible 0.1″-pitch through holes. The PH connector, which has a 2 mm pitch and is rated for 2 A, is compatible with our assortment of 2-pin female JST PH-style cables. For added versatility, the board also includes a smaller (1mm-pitch), 2-pin, top-entry JST SH-style connector that is compatible with our 2-pin female JST SH-style cables.
This simple board serves as an adapter between a JST PH-style 2-pin, side-entry connector and breadboard-compatible 0.1″-pitch through holes. The PH connector, which has a 2 mm pitch and is rated for 2 A, is compatible with our assortment of 2-pin female JST PH-style cables. For added versatility, the board also includes a smaller (1mm-pitch), 2-pin, top-entry JST SH-style connector that is compatible with our 2-pin female JST SH-style cables.
This simple board serves as an adapter between a JST PH-style 3-pin, top-entry connector and breadboard-compatible 0.1″-pitch through holes. The PH connector, which has a 2 mm pitch and is rated for 2 A, is compatible with our assortment of 3-pin female JST PH-style cables. For added versatility, the board also includes a smaller (1mm-pitch), 3-pin, top-entry JST SH-style connector that is compatible with our 3-pin female JST SH-style cables.
This simple board serves as an adapter between a JST PH-style 3-pin, side-entry connector and breadboard-compatible 0.1″-pitch through holes. The PH connector, which has a 2 mm pitch and is rated for 2 A, is compatible with our assortment of 3-pin female JST PH-style cables. For added versatility, the board also includes a smaller (1mm-pitch), 3-pin, top-entry JST SH-style connector that is compatible with our 3-pin female JST SH-style cables.

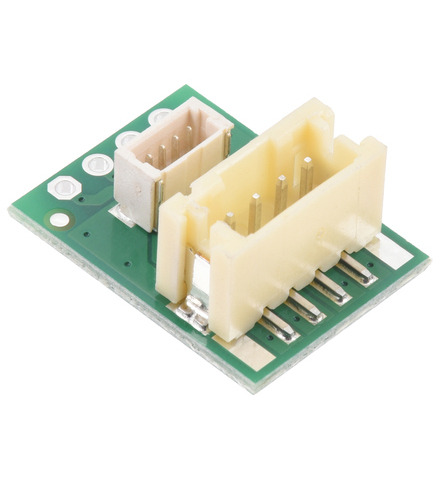

This simple board serves as an adapter between a JST PH-style 4-pin, top-entry connector and breadboard-compatible 0.1″-pitch through holes. The PH connector, which has a 2 mm pitch and is rated for 2 A, is compatible with our assortment of 4-pin female JST PH-style cables. For added versatility, the board also includes a smaller (1mm-pitch), 4-pin, top-entry JST SH-style connector that is compatible with our 4-pin female JST SH-style cables.
This simple board serves as an adapter between a JST PH-style 4-pin, side-entry connector and breadboard-compatible 0.1″-pitch through holes. The PH connector, which has a 2 mm pitch and is rated for 2 A, is compatible with our assortment of 4-pin female JST PH-style cables. For added versatility, the board also includes a smaller (1mm-pitch), 4-pin, top-entry JST SH-style connector that is compatible with our 4-pin female JST SH-style cables.
This simple board serves as an adapter between a JST PH-style 5-pin, top-entry connector and breadboard-compatible 0.1″-pitch through holes. The PH connector, which has a 2 mm pitch and is rated for 2 A, is compatible with our assortment of 5-pin female JST PH-style cables. For added versatility, the board also includes a smaller (1mm-pitch), 5-pin, top-entry JST SH-style connector that is compatible with our 5-pin female JST SH-style cables.

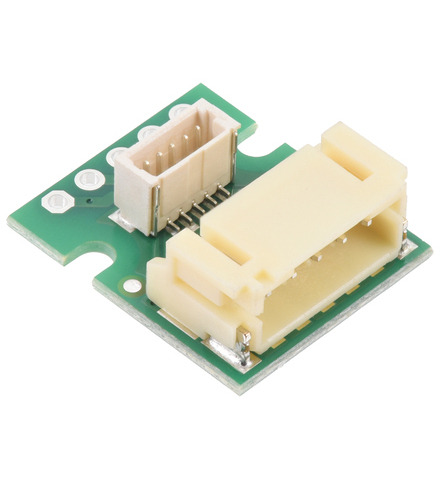

This simple board serves as an adapter between a JST PH-style 5-pin, side-entry connector and breadboard-compatible 0.1″-pitch through holes. The PH connector, which has a 2 mm pitch and is rated for 2 A, is compatible with our assortment of 5-pin female JST PH-style cables. For added versatility, the board also includes a smaller (1mm-pitch), 5-pin, top-entry JST SH-style connector that is compatible with our 5-pin female JST SH-style cables.
This simple board serves as an adapter between a JST PH-style 6-pin, top-entry connector and breadboard-compatible 0.1″-pitch through holes. The PH connector, which has a 2 mm pitch and is rated for 2 A, is compatible with our assortment of 6-pin female JST PH-style cables. For added versatility, the board also includes a smaller (1mm-pitch), 6-pin, top-entry JST SH-style connector that is compatible with our 6-pin female JST SH-style cables.

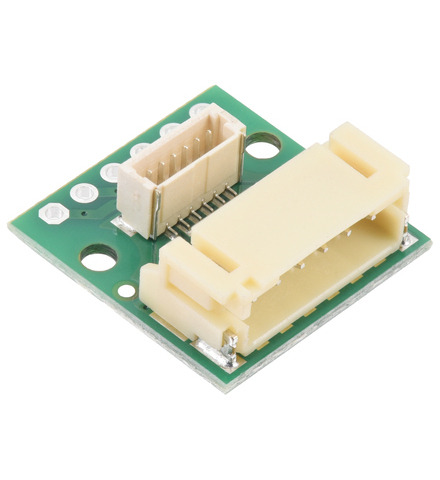

This simple board serves as an adapter between a JST PH-style 6-pin, side-entry connector and breadboard-compatible 0.1″-pitch through holes. The PH connector, which has a 2 mm pitch and is rated for 2 A, is compatible with our assortment of 6-pin female JST PH-style cables. For added versatility, the board also includes a smaller (1mm-pitch), 6-pin, top-entry JST SH-style connector that is compatible with our 6-pin female JST SH-style cables.
