5-Pin JST SH-Style Cables

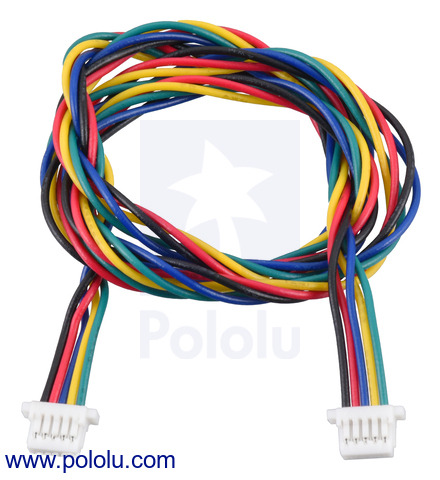

These 5-conductor, 1mm-pitch JST SH-style cables are available in a variety lengths. Double-sided versions are available with twisted wires and female connectors on both ends, and single-sided versions are available with a female connector on one end and unterminated wires on the other. The single-ended versions can easily be cut to shorter if desired, and remember that the double-sided cables can also be cut in half to get single-sided cables that are 5 cm, 8 cm, and 20 cm long.
The cables are made from 28 AWG wires that conform to UL 1571, and the black wire is pin 1. They are rated for 1 A and 50 V.
| Pins | Terminations | Length | Item # | Price | |
|---|---|---|---|---|---|
 |
5 | double-sided (female-female) |
10 cm (4″) | #5533 | $2.81 |
| 16 cm (6.3″) | #5534 | $3.06 | |||
| 25 cm (10″) | #5535 | $3.43 | |||
| 40 cm (16″) | #5536 | $4.05 | |||
| 63 cm (25″) | #5537 | $5.01 | |||
| single-sided (female-unterminated) |
12 cm (4.5″) | #5530 | $1.77 | ||
| 30 cm (12″) | #5531 | $2.52 | |||
| 75 cm (30″) | #5532 | $4.38 | |||
We have compatible JST SH-style connector breakout boards, available in top-entry and side-entry versions, that work as adapters between these cables and breadboard-compatible 0.1″-pitch through holes.
|
|
|
Compare all products in this category
Products in category “5-Pin JST SH-Style Cables”
| Pololu item #: 5533 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
This 5-conductor, 10 cm (4″) cable has 28 AWG wires and 5-pin female JST SH-type connectors (1mm pitch) on both ends
| Pololu item #: 5534 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|
This 5-conductor, 16 cm (6.3″) cable has 28 AWG wires and 5-pin female JST SH-type connectors (1mm pitch) on both ends
| Pololu item #: 5535 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|
This 5-conductor, 25 cm (10″) cable has 28 AWG wires and 5-pin female JST SH-type connectors (1mm pitch) on both ends
| Pololu item #: 5536 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|
This 5-conductor, 40 cm (16″) cable has 28 AWG wires and 5-pin female JST SH-type connectors (1mm pitch) on both ends
| Pololu item #: 5537 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|
This 5-conductor, 63 cm (25″) cable has 28 AWG wires and 5-pin female JST SH-type connectors (1mm pitch) on both ends
| Pololu item #: 5530 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|
This 5-conductor, 12 cm (4.5″) cable has 28 AWG wires and a 5-pin female JST SH-type connector (1mm pitch) on one end. The other ends of the wires are unterminated; they can be cut to length to match your application.
| Pololu item #: 5531 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|
This 5-conductor, 30 cm (12″) cable has 28 AWG wires and a 5-pin female JST SH-type connector (1mm pitch) on one end. The other ends of the wires are unterminated; they can be cut to length to match your application.
| Pololu item #: 5532 | |
| Brand: PCX | supply outlook |
| Status: Active and Preferred | |
|
|
|
This 5-conductor, 75 cm (30″) cable has 28 AWG wires and a 5-pin female JST SH-type connector (1mm pitch) on one end. The other ends of the wires are unterminated; they can be cut to length to match your application.
