Breakout for JST SH-Style Connector, 2-Pin Male Top-Entry (2-Pack)

Details for item #4810

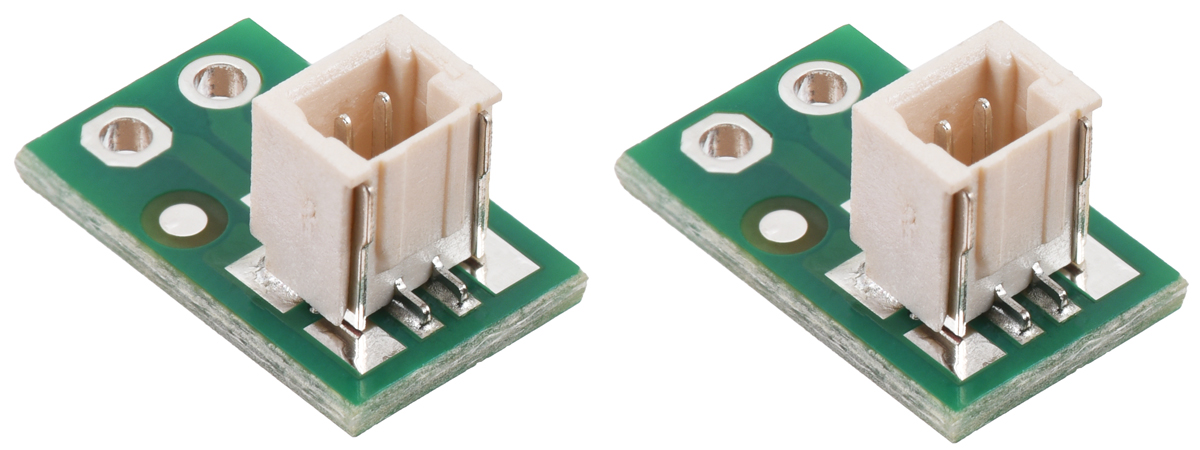

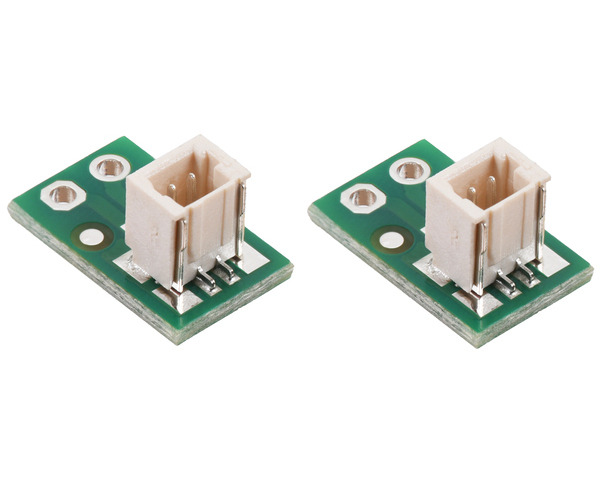

This product is a 2-pack of JST SH-style connector adapter boards featuring a top-entry connector.

We have various cables that work with these breakout boards that are available in double-sided or single-sided versions of varying lengths. The double-sided versions have twisted wires and female JST SH-type connectors on both ends, and single-sided versions have a female connector on one end and unterminated wires on the other.

	Pins	Terminations	Length	Item #	Price
	2	double-sided (female-female)	10 cm (4″)	#5503	$1.30
			16 cm (6.3″)	#5504	$1.40
			25 cm (10″)	#5505	$1.55
			40 cm (16″)	#5506	$1.80
			63 cm (25″)	#5507	$2.18
		single-sided (female-unterminated)	12 cm (4.5″)	#5500	$0.79
			30 cm (12″)	#5501	$1.08
			75 cm (30″)	#5502	$1.83

Breakout for JST SH-style connector family overview

Our JST SH-type connector breakout boards provide access to each pin on a row of 0.1″-pitch through holes, making them compatible with standard solderless breadboards. They are available in a variety of pin counts and connector styles.

Top entry	Side entry
2-pin
3-pin
4-pin
5-pin
6-pin

The connectors are rated for up to 1 A and 50 V and are compatible with our female JST SH-style cables. The through-holes work with standard 0.1″ (2.54 mm) male headers and 0.1″ female headers, which are available separately:

Additionally, all versions of these boards except the 6-pin side-entry variation will work with our 0.1″ screw terminal blocks.
