Overview
These header strips have a 0.1″ (2.54 mm) pitch and are commonly used as low-cost connectors. The standard spacing allows use with solderless breadboards, prototyping PCBs, female headers, and our premium and pre-crimped jumper wires. The single-row header strips are available in a variety of lengths, and these are also easy to snap into smaller strips to fit specific application requirements. The double- and triple-row strips, which are only available in 40-pin lengths, can also be broken into smaller strips, but it takes a little more effort, and it is sometimes easier to use wire/diagonal cutters.
Details for item #4266

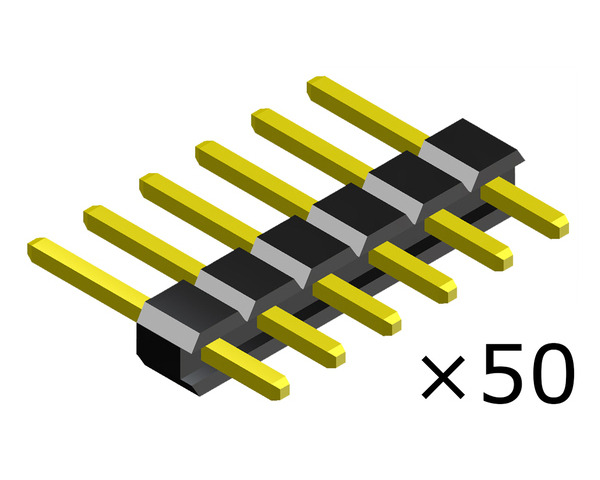

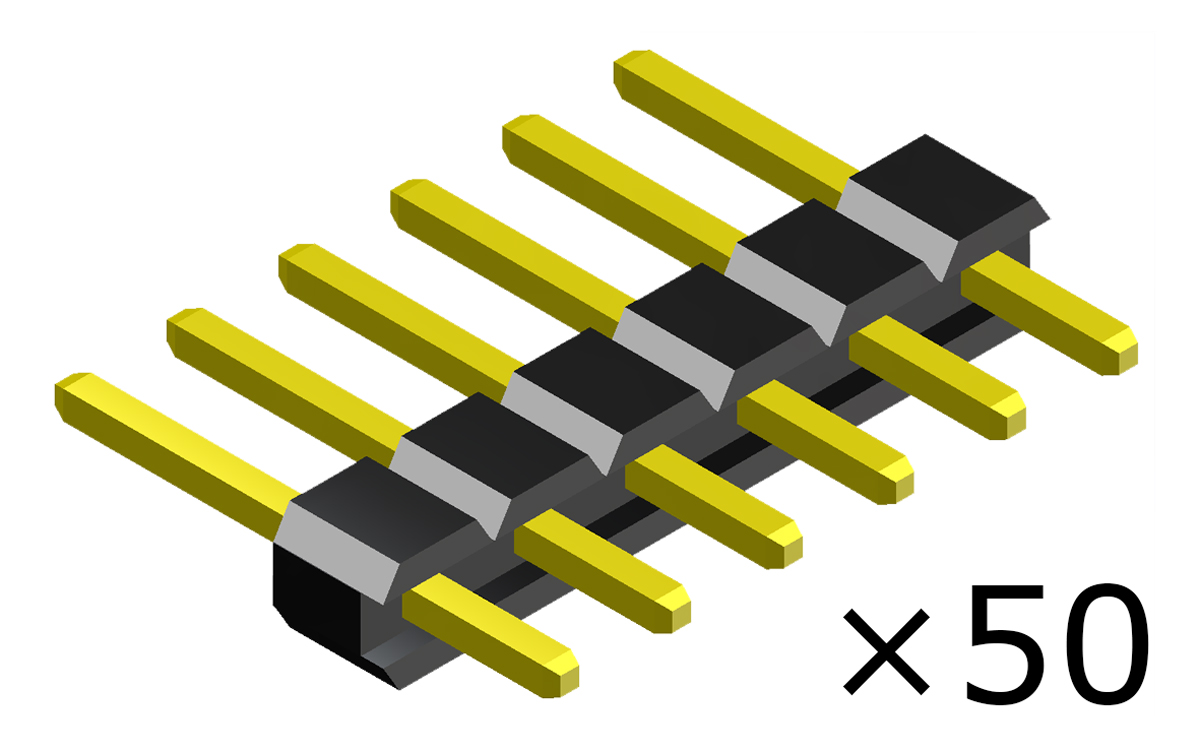

 | 0.100″ (2.54 mm) Breakaway Male Header: 1×6-Pin, Straight, Black, 50-Pack. |
|---|
|
 | Dimension diagram of 0.100" (2.54 mm) breakaway male header, straight, single-row. |
|---|
|

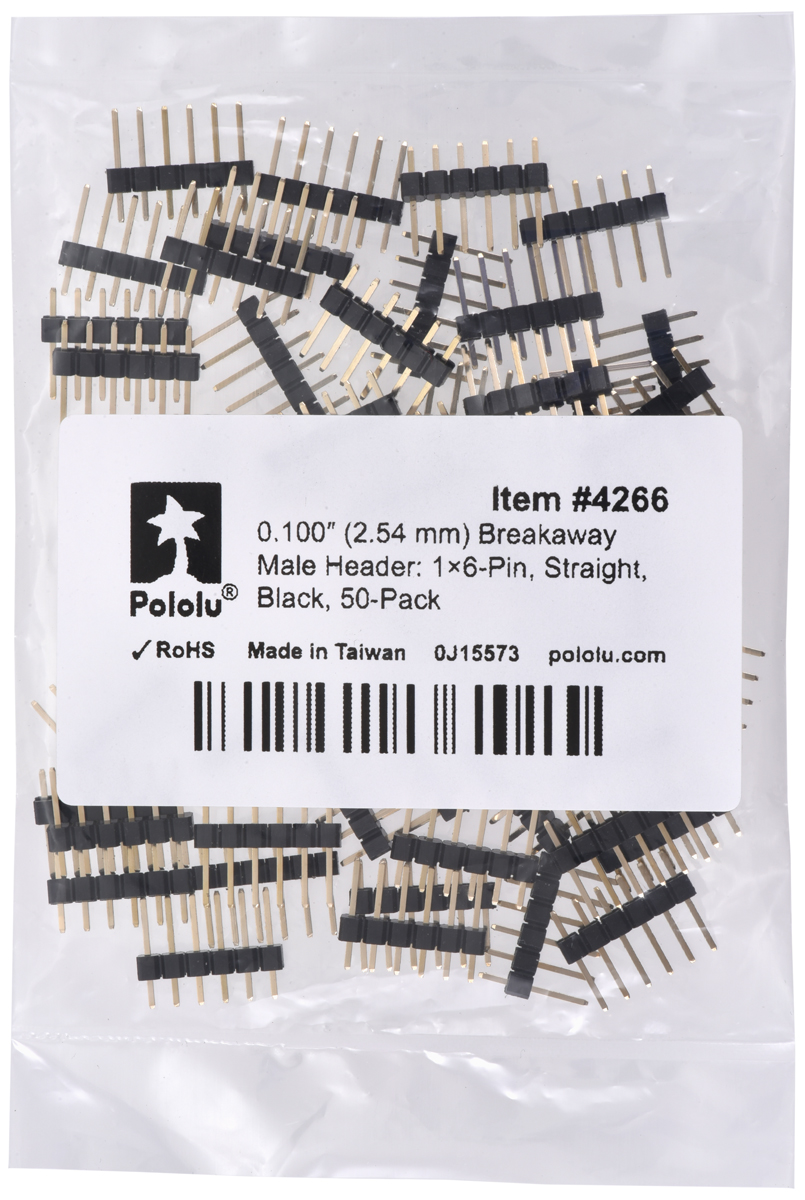

This connector is a 50-pack of 1×6-pin, straight male header strips. The strips have a standard-color (black) plastic base.
All available breakaway header options
Straight, Single-Row:
|
| Dimension diagram of 0.100" (2.54 mm) breakaway male header, straight, single-row. |
|---|
|
| Straight |
|
| Item # |
Pins |
Pack
Quantity |
Color |
Pack
Price |
| 4262 |
1×2 |
100 |
black |
$2.79 |
| 4263 |
1×3 |
100 |
$3.95 |
| 4264 |
1×4 |
50 |
$2.79 |
| 4265 |
1×5 |
50 |
$3.39 |
| 4266 |
1×6 |
50 |
$3.95 |
| 4267 |
1×7 |
50 |
$4.49 |
| 4268 |
1×8 |
50 |
$4.95 |
| 4269 |
1×9 |
25 |
$3.09 |
| 4270 |
1×10 |
25 |
$3.39 |
| 4271 |
1×11 |
25 |
$3.75 |
| 4272 |
1×12 |
25 |
$3.95 |
| 4276 |
1×16 |
25 |
$4.95 |
| 965 |
1×40 |
1 |
$0.95 |
| 2665 |
1×40 |
1 |
red |
$1.09 |
| 2666 |
1×40 |
1 |
yellow |
$1.09 |
| 2667 |
1×40 |
1 |
blue |
$1.09 |
| 2664 |
1×40 |
1 |
white |
$1.09 |
 |
1×40-Pin, Straight. |
|---|
Both sides of this strip are long, allowing for unique connections that cannot be made with standard male header strips. For example, this header can be used as a female-to-male adapter, and both sides are compatible with wire wrap. This version is only available as an individual, 1×40 strip that can be cut or broken into smaller strips.
|
 | Dimension diagram of 0.100" (2.54 mm) breakaway male header, straight, double-sided, single-row. |
|---|
|
|
 | Dimension diagram of 0.100" (2.54 mm) breakaway male header, straight, double-row. |
|---|
|
Right-Angle, Single-Row:
|
 | Dimension diagram of 0.100" (2.54 mm) breakaway male header, right-angle, single-row. |
|---|
|
| Right-Angle |
|
| Item # |
Pins |
Pack
Quantity |
Color |
Pack
Price |
| 4362 |
1×2 |
100 |
black |
$3.95 |
| 4363 |
1×3 |
100 |
$5.75 |
| 4364 |
1×4 |
50 |
$3.95 |
| 4365 |
1×5 |
50 |
$4.95 |
| 4366 |
1×6 |
50 |
$5.75 |
| 4367 |
1×7 |
50 |
$6.59 |
| 4368 |
1×8 |
50 |
$7.49 |
| 4369 |
1×9 |
25 |
$4.49 |
| 4370 |
1×10 |
25 |
$4.95 |
| 4371 |
1×11 |
25 |
$5.29 |
| 4372 |
1×12 |
25 |
$5.75 |
| 4376 |
1×16 |
25 |
$7.49 |
| 965 |
1×40 |
1 |
$1.25 |
|
 | Dimension diagram of 0.100" (2.54 mm) breakaway male header, right-angle, double-row. |
|---|
|
|
 | Dimension diagram of 0.100" (2.54 mm) breakaway male header, right-angle, triple-row. |
|---|
|
