0.100" (2.54 mm) Extended Male Header: 2×7-Pin, 17.1 mm

Pololu item #: 1113
Brand: Pololu supply outlook
RoHS 3 compliant

Price break Unit price (US$)
1 0.89
10 0.80


backorders allowed

This custom connector is a double-row, 14-pin, extended (17.1 mm) male header strip. We use this header to connect the LCD on the 3pi robot to the main PCB.

 Description Specs (0) Pictures (0) Resources (0) FAQs (0) On the blog (0)

This connector is a double-row, 14-pin, extended male header strip. The extra-long pins have a length of 17.1 mm, which is 5.45 mm longer than typical 0.1" straight male header pins. The standard 0.1" spacing allows use with perforated prototyping PCBs and female headers.

This connector was specifically designed for connecting the LCD on the 3pi robot to the main PCB so that it can extend out over the rear battery holder. .

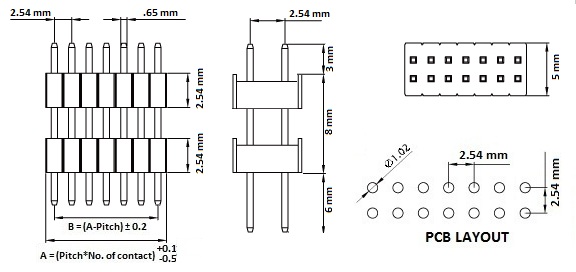

Dimension diagram of 0.100" (2.54 mm) extended male header: 2×7-pin, 17.1 mm.
