Voltage Regulators and Power Supplies » Step-Down (Buck) Voltage Regulators » D42V55Fx Step-Down Voltage Regulators »
18V, 4A Step-Down Voltage Regulator D42V55F18
| Output voltage | Typical max output current1 | Input voltage range2 |
|---|---|---|
| 18 V | 4 A | 18 V – 60 V |
Note 1: Typical continuous output current at 42 V in. Actual achievable continuous output current is a function of input voltage and is limited by thermal dissipation. See the output current graphs on the product pages for more information.
Note 2: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information.
Alternatives available with variations in these parameter(s): output voltage Select variant…
Compare all products in D42V55Fx Step-Down Voltage Regulators.
| Description | Specs (11) | Pictures (10) | Resources (3) | FAQs (0) | On the blog (0) | Distributors (0) |
|---|
|
18V, 4A Step-Down Voltage Regulator D42V55F18. |
|---|
 |

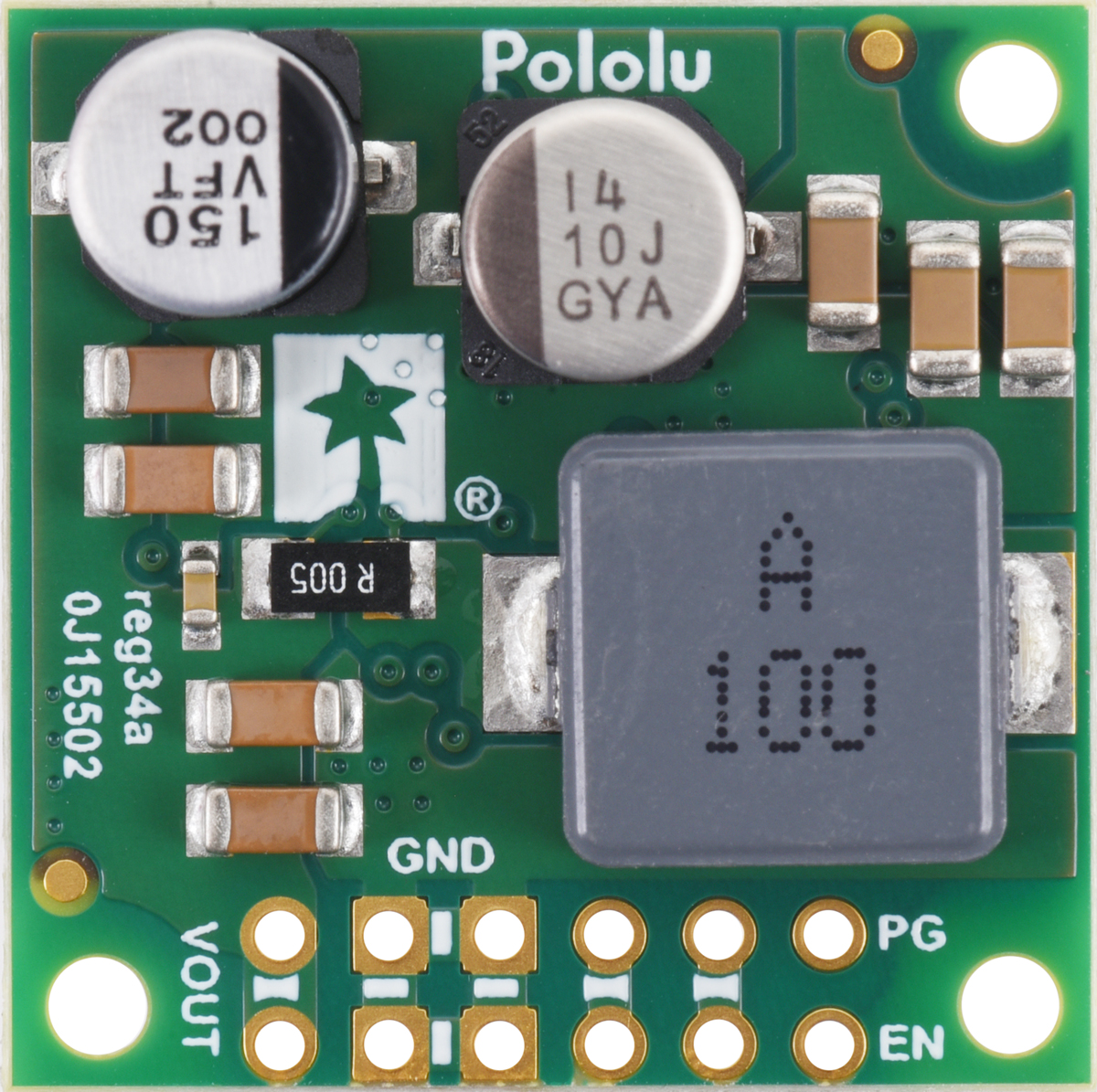

18V, 4A Step-Down Voltage Regulator D42V55F18, top view. |
|---|
 |

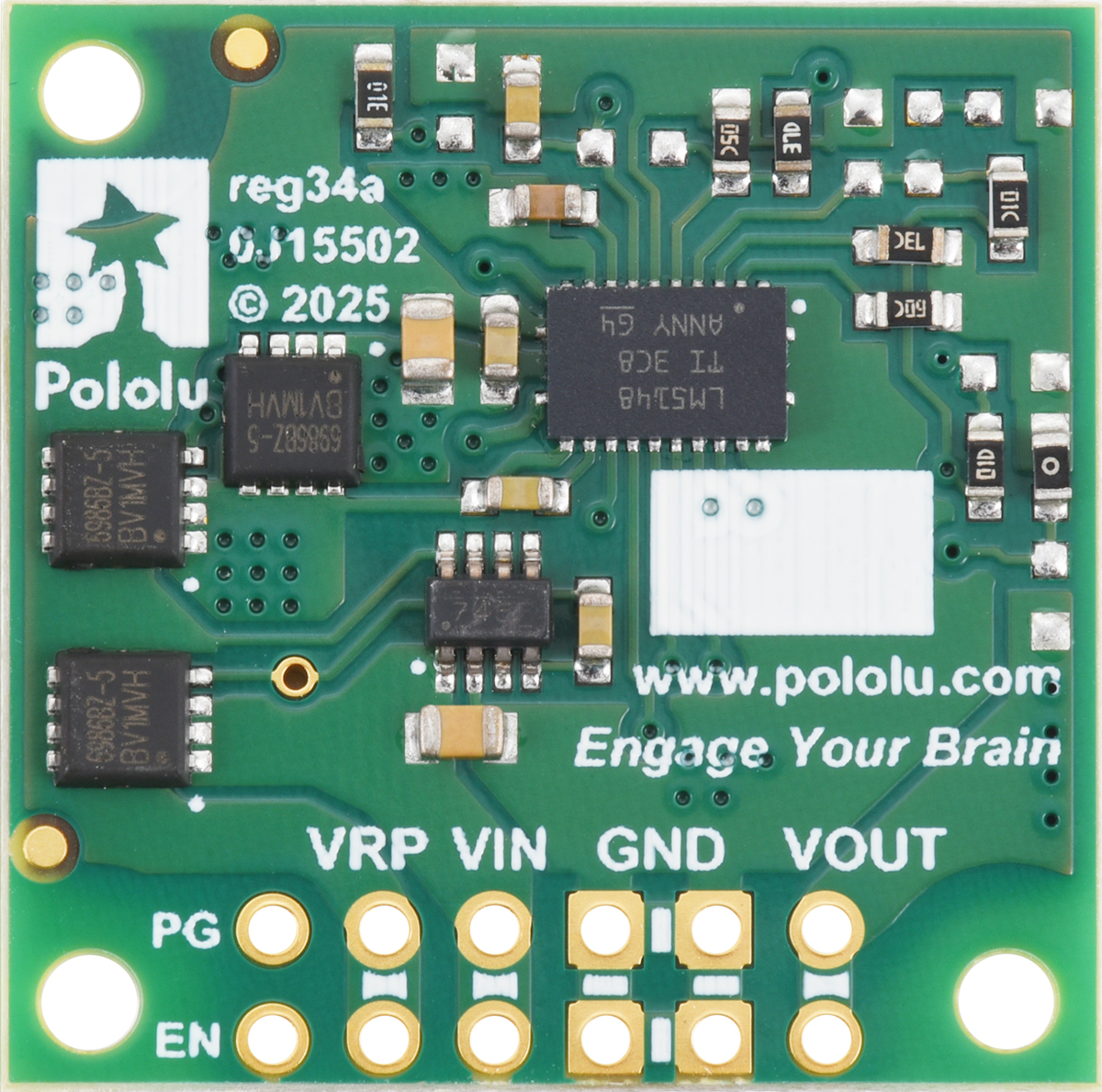

18V, 4A Step-Down Voltage Regulator D42V55F18, bottom view. |
|---|
 |
Side view of the Step-Down Voltage Regulator D42V55Fx (versions with output voltages of 18V or 24V). |
|---|
 |
Step-Down Voltage Regulator D42V55Fx, bottom view with dimensions. |
|---|
 |
Pinout of the Step-Down Voltage Regulator D42V55Fx. |
|---|
 |

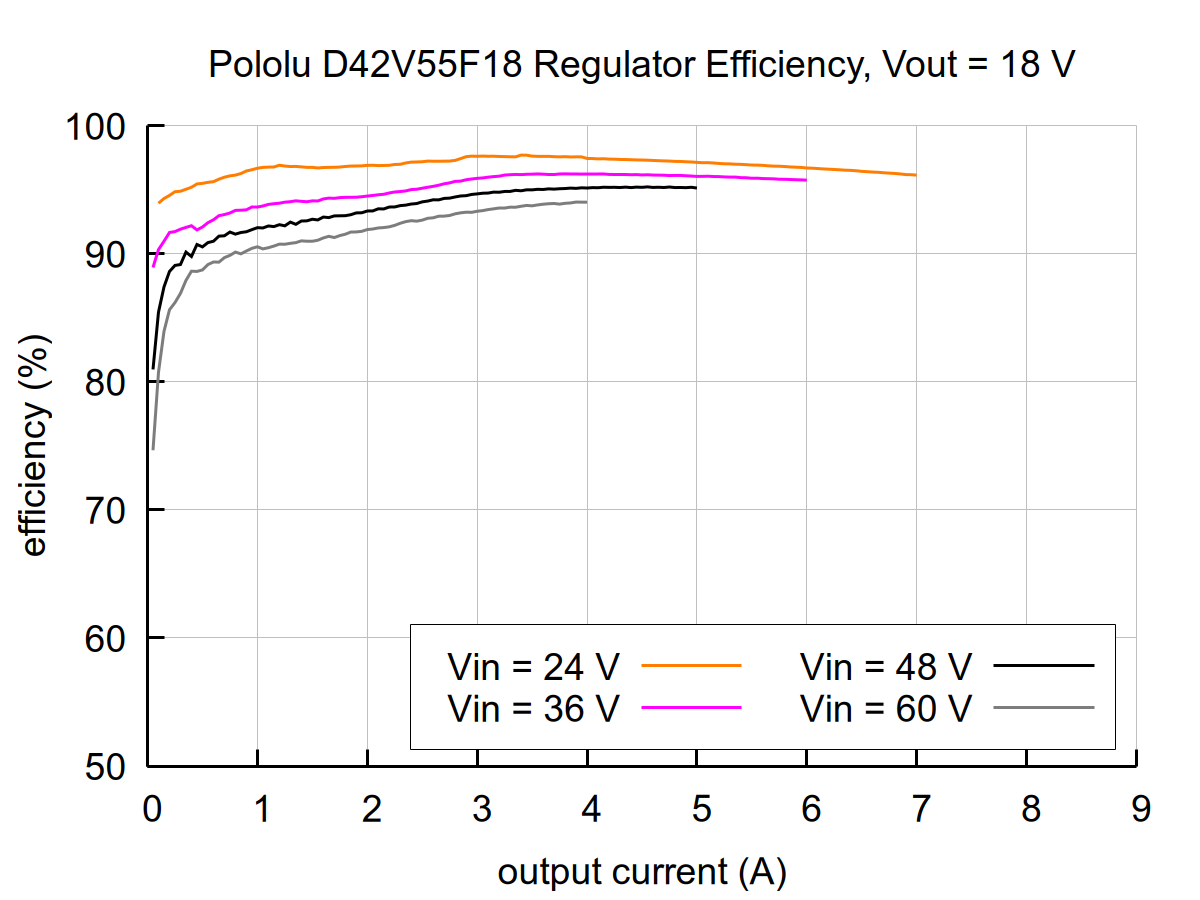

Typical efficiency of the 18V, 4A Step-Down Voltage Regulator D42V55F18. |
|---|
 |
Typical maximum continuous output current of the Step-Down Voltage Regulator D42V55Fx. |
|---|
 |
Typical quiescent current of the Step-Down Voltage Regulator D42V55Fx. |
|---|
 |
Typical dropout voltage of the Step-Down Voltage Regulator D42V55Fx (5V output versions and above). |
|---|
