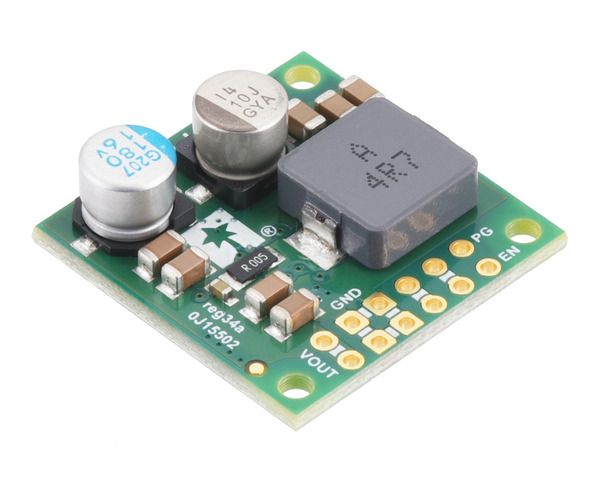

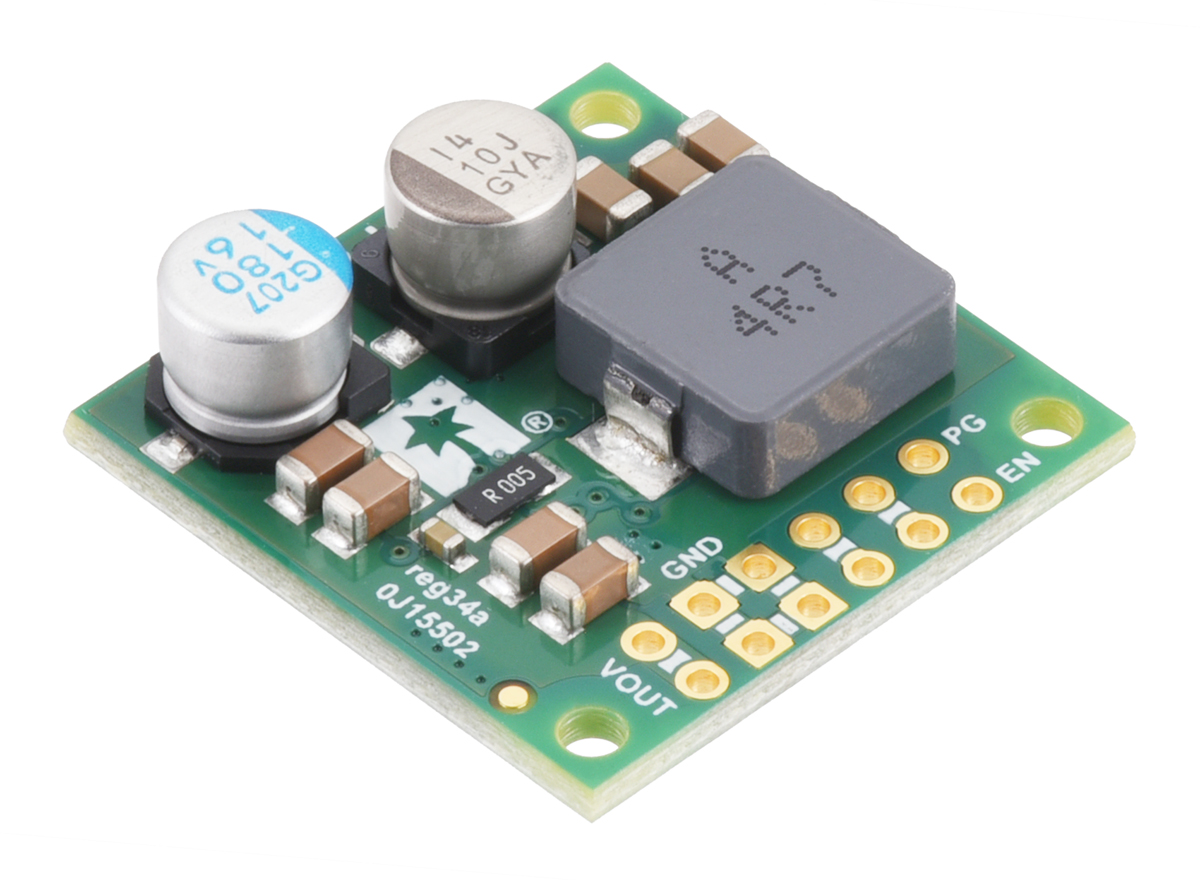

9V, 5A Step-Down Voltage Regulator D42V55F9

Overview

The D42V55Fx family of synchronous buck (step-down) voltage regulators generates lower output voltages from input voltages as high as 60 V. They are switching regulators (also called switched-mode power supplies (SMPS) or DC-to-DC converters), which makes them much more efficient than linear voltage regulators, especially when the difference between the input and output voltage is large. These regulators can typically support continuous output currents between 3 A and 8 A, depending on the input voltage and output voltage (see the Maximum continuous output current section below). In general, the available output current is higher for the lower-voltage versions than it is for the higher-voltage versions, and it decreases as the input voltage increases.

This family includes ten versions with fixed output voltages ranging from 3.3 V to 24 V:

Regulator	Output voltage	Typical max output current(1)	Input voltage range(2)	Size
#5570: D42V55F3	3.3 V	6 A	3.5 V – 60 V	1″ × 1″
#5571: D42V55F5	5 V	6 A	5 V – 60 V
#5572: D42V55F5.3	5.3 V	6 A	5.3 V – 60 V
#5573: D42V55F6	6 V	5.5 A	6 V – 60 V
#5574: D42V55F7	7.5 V	5 A	7.5 V – 60 V
#5575: D42V55F8	8.4 V	5 A	8.4 V – 60 V
#5576: D42V55F9	9 V	5 A	9 V – 60 V
#5577: D42V55F12	12 V	4.5 A	12 V – 60 V
#5578: D42V55F18	18 V	4 A	18 V – 60 V
#5579: D42V55F24	24 V	4 A	24 V – 60 V
Note 1: Typical continuous output current at 36 V in. Actual achievable continuous output current is a function of input voltage and is limited by thermal dissipation. See the output current graphs on the product pages for more information.
Note 2: Minimum input voltage is subject to dropout voltage considerations; see the dropout voltage section of product pages for more information.

The regulators have input reverse voltage protection and over-current protection. A thermal shutdown feature also helps prevent damage from overheating and a soft-start feature limits the inrush current and gradually ramps the output voltage on startup.

We manufacture these boards in-house at our Las Vegas facility, so we can make these regulators with customized components to better meet the needs of your project, such as by customizing the output voltage. If you are interested in customization, please contact us.

If you do not need quite as much current, consider the very similar D36V28Fx or D30V30Fx families of step-down voltage regulators, which can deliver up to around 4 A in a wide range of output voltages.

Details for item #5576

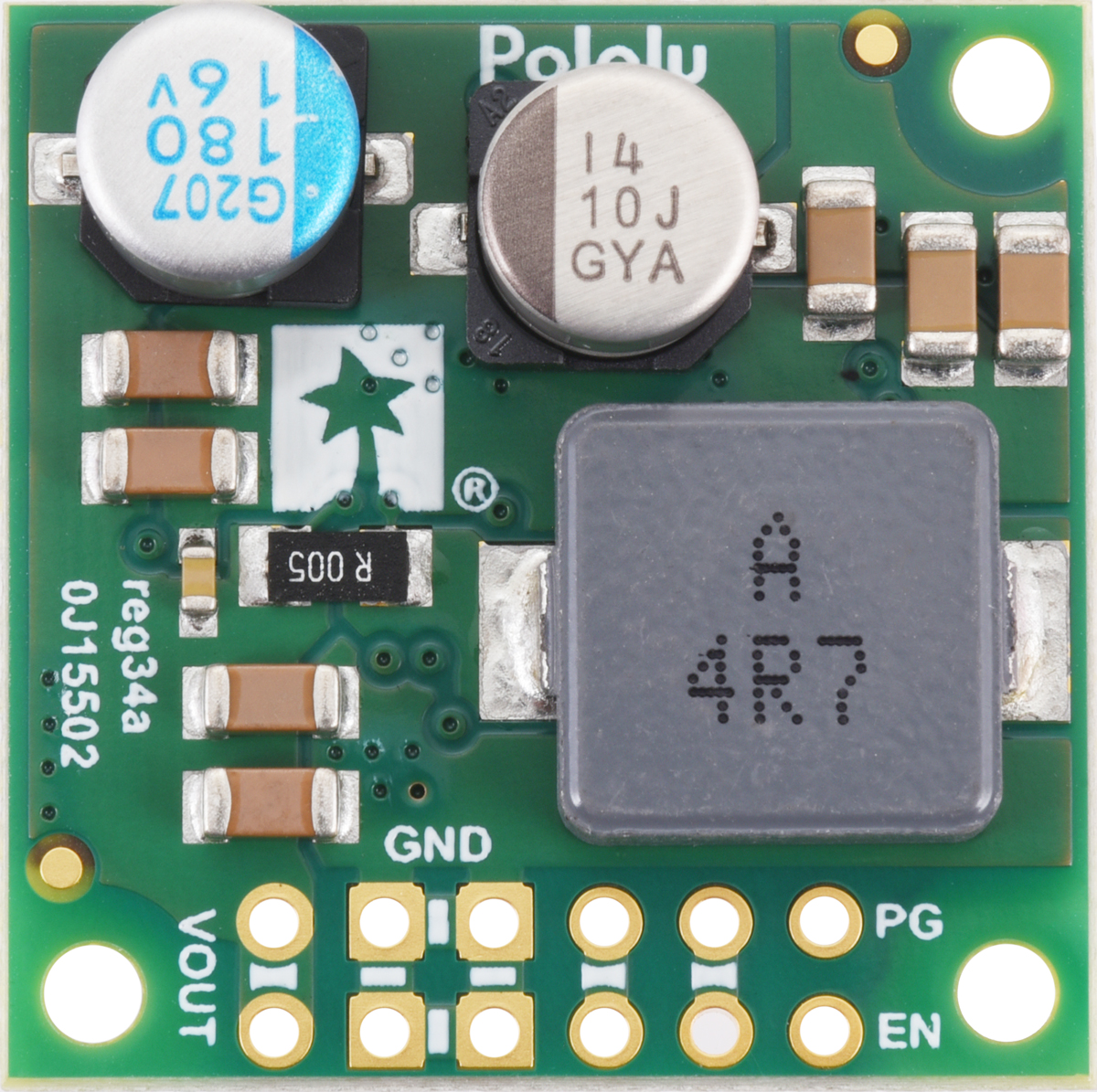

9V, 5A Step-Down Voltage Regulator D42V55F9, top view.

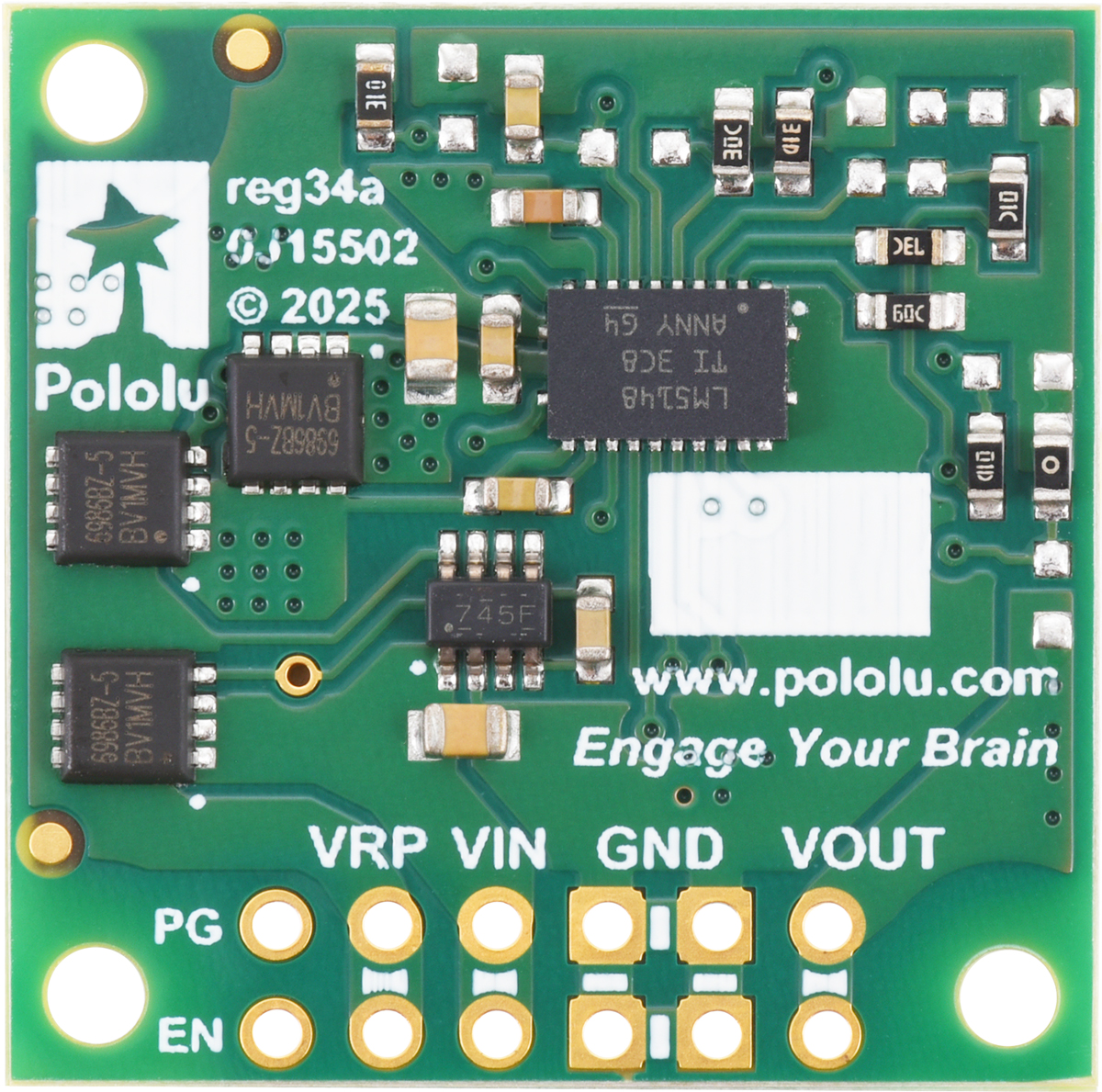

9V, 5A Step-Down Voltage Regulator D42V55F9, bottom view.

Features

• Input voltage: 9 V to 60 V (minimum input subject to dropout voltage considerations; see the dropout voltage section for details)
• Output voltage: 9 V with 3% accuracy
• Typical maximum continuous output current: 3.5 A to 7 A (see the maximum continuous output current graph below)
• Typical efficiency of 80% to 95%, depending on input voltage, output voltage, and load (see the efficiency graph below)
• Switching frequency: ~400 kHz under heavy loads
• < 0.2 mA typical no-load quiescent current (see the quiescent current graph below)
• Optional enable input for disconnecting the load and putting the regulator into a low-power state that typically draws under 0.1 mA
• Power-good output can be used for sequencing, fault detection, and voltage monitoring
• Soft-start feature limits inrush current and gradually ramps output voltage
• Integrated reverse-voltage protection, over-current protection, and over-temperature shutoff

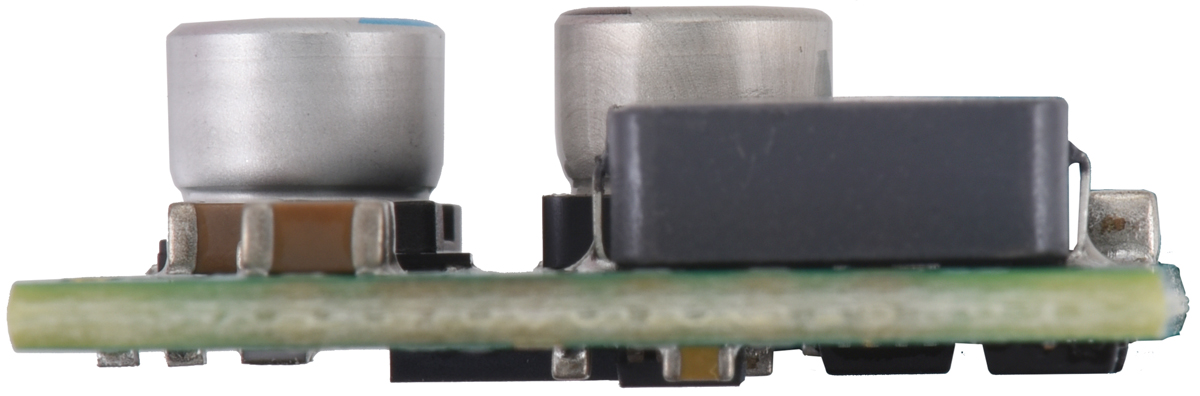

• Compact size: 1″ × 1″ × 0.355″ (25.4 mm × 25.4 mm × 9 mm)
• Three 0.086″ mounting holes for #2 or M2 screws

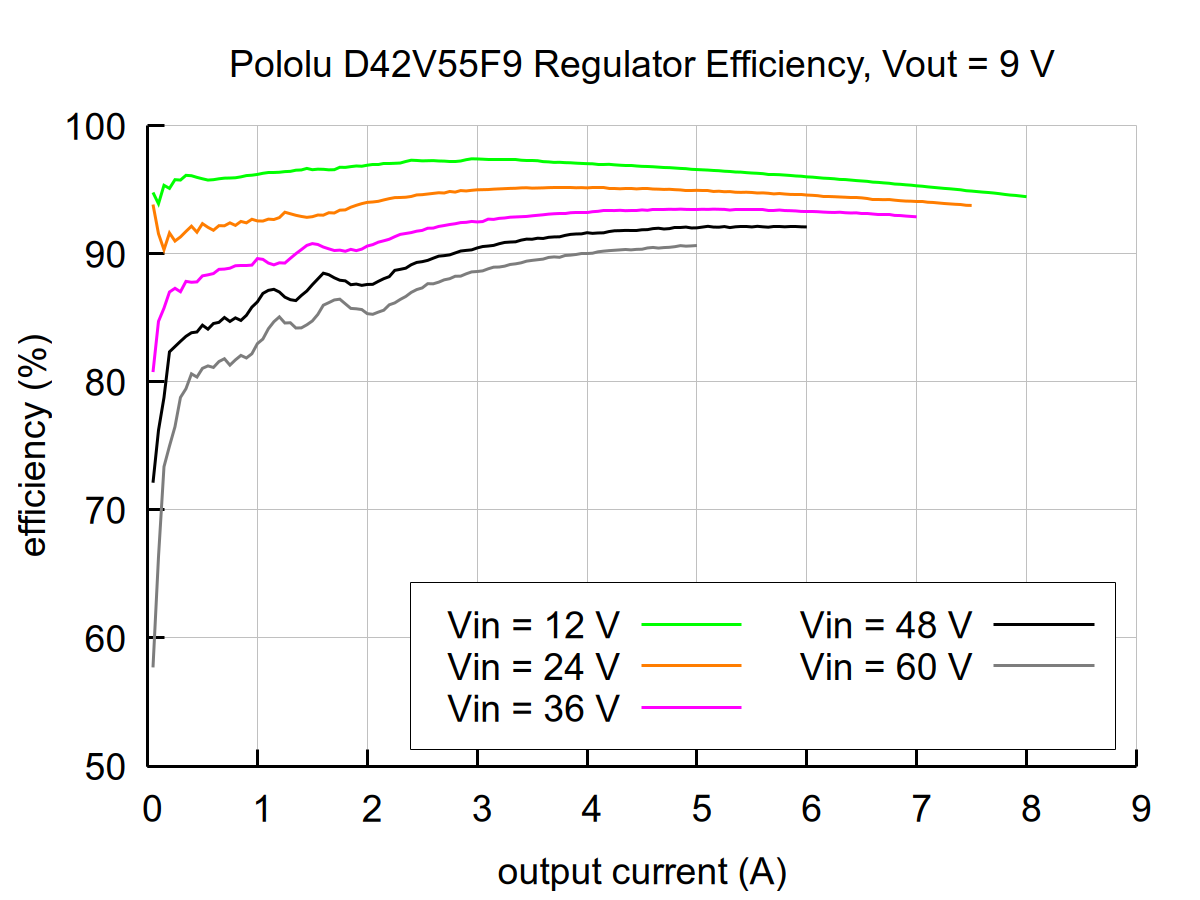

Typical efficiency

The efficiency of a voltage regulator, defined as (Power out)/(Power in), is an important measure of its performance, especially when battery life or heat are concerns.

Connections

This regulator has six connections, some of which are duplicated on multiple pins:

All of the connections are arranged on a 0.1″ grid for compatibility with solderless breadboards, 0.1″ male headers, and 0.1″ female headers. The power connections (VOUT, GND, VIN, and VRP) are duplicated across both rows of through-holes, allowing two header pins to be used for each connection. Note that the EN and PG pins are not duplicated and are adjacent on different rows, so if you intend to use the regulator on a breadboard, be careful to avoid installing header pins in a way that shorts EN to PG. The PG connection is the only one not accessible along the edge of the board.

Maximum continuous output current

The maximum achievable output current of these regulators varies with the input voltage but also depends on other factors, including the ambient temperature, air flow, and heat sinking. The graph below shows maximum output currents that these regulators can deliver continuously at room temperature in still air and without additional heat sinking.

During normal operation, this product can get hot enough to burn you. Take care when handling this product or other components connected to it.

This regulator has a protection feature that gracefully limits the output current, which can help protect it from thermal damage in applications loads that exceed the regulator’s capabilities. However, this limiting is insufficient to cover all possible combinations of input voltage, output voltage, and load, so we recommend you take precautions to ensure that the continuously applied loads of your application will not exceed the currents shown in the above graph. If your application has the potential to expose the regulator to higher loads, please consider using additional external protective components such as fuses or circuit breakers.

Quiescent current

The quiescent current is the current the regulator uses just to power itself, and the graph below shows this for the different regulator versions as a function of the input voltage. The module’s EN input can be driven low to put the board into a low-power state where it draws approximately 50 µA plus 1 µA per volt on VIN (note that for high input voltages, this current draw can exceed the quiescent current draw of the regulator).

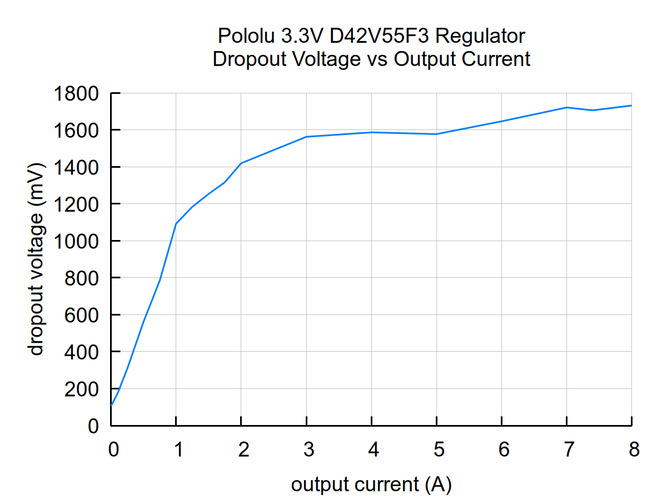

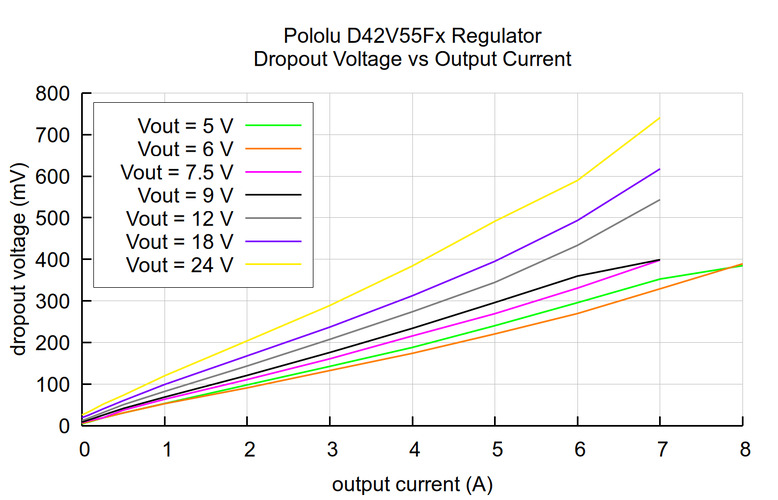

Typical dropout voltage

The dropout voltage of a step-down regulator is the minimum amount by which the input voltage must exceed the regulator’s target output voltage in order to ensure the target output can be achieved. For example, if a 5 V regulator has a 1 V dropout voltage, the input must be at least 6 V to ensure the output is the full 5 V. Generally speaking, the dropout voltage increases as the output current increases. The graphs below shows the dropout voltages for the different members of this regulator family:
