Isolated DC-DC Power Module, UCC33420, 5V/5.5V, 300mA
This power module is based on the TI UCC33420 and provides regulated, galvanically isolated DC-to-DC power. The output voltage is set to 5 V by default and can be changed to 5.5 V through a selection pin. Power specs:
| Input voltage | Output voltage | Max continuous output current |
|---|---|---|
| 4.5 V to 5.5 V | 5 V (default) or 5.5 V (selectable) | 300 mA |
Compare all products in Isolated DC-DC Power Modules or Isolation.
| Description | Specs (10) | Pictures (6) | Resources (4) | FAQs (0) | On the blog (0) | Distributors (0) |
|---|
|
Isolated DC-DC Power Module, UCC33420, 5V/5.5V, 300mA. |
|---|
 |
Pinout of the Isolated DC-DC Power Module, UCC33420, 5V/5.5V, 300mA. |
|---|
 |
Isolated DC-DC Power Module, UCC33420, 5V/5.5V, 300mA, basic dimensions with US quarter for size reference. |
|---|
 |

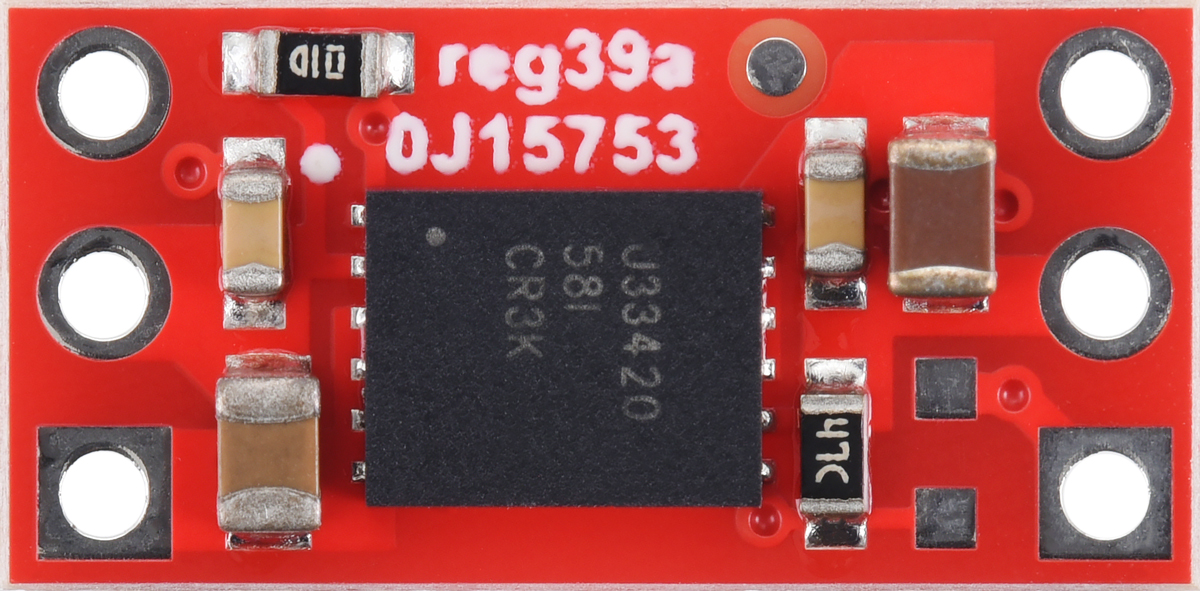

Isolated DC-DC Power Module, UCC33420, 5V/5.5V, 300mA, top view. |
|---|
 |

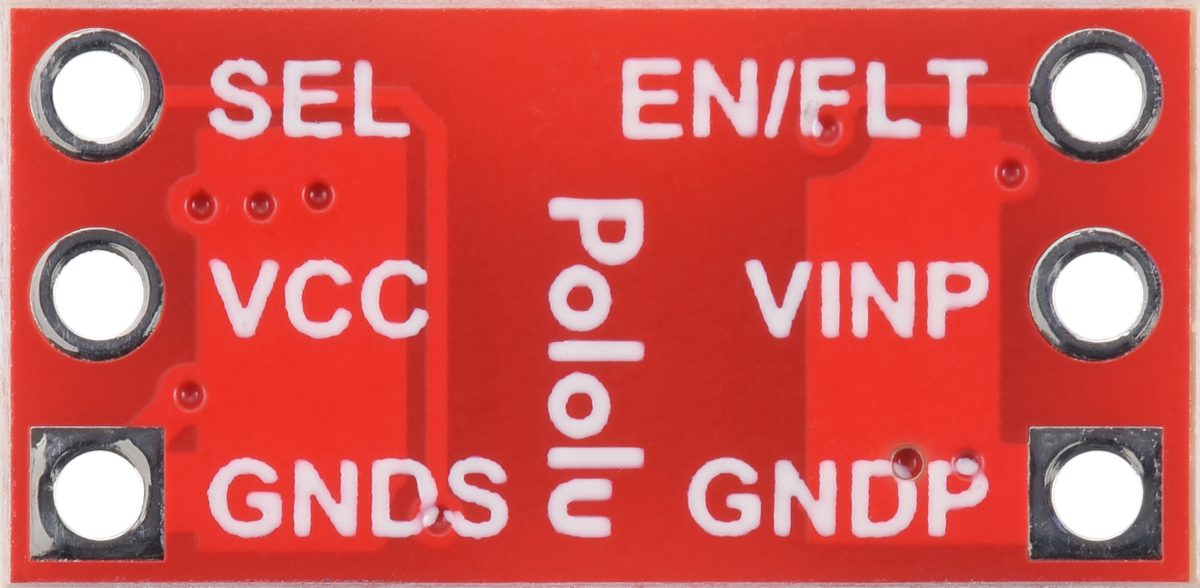

Isolated DC-DC Power Module, UCC33420, 5V/5.5V, 300mA, bottom view. |
|---|
 |
Schematic diagram of the Isolated DC-DC Power Module, UCC33420, 5V/5.5V, 300mA. |
|---|
