RC Servos

The DSP33 from Power HD is a very fast sub-micro servo with digital control electronics for increased performance. At just 3 g, it is one of the smallest and lightest servos we carry, making it a great tiny actuator for robotic or RC mechanisms that need to be quick and very light. This servo features a light, 3"-long cable terminated by a special 1.5mm-pitch ZH-style JST connector intended for very small RC receivers. Servo horns and associated hardware are included.

Key specs at 6 V: 0.07 sec/60°, 5 oz-in (0.35 kg-cm), 3 g.

This generic sub-micro servo is one of the lightest servos we carry, weighing just 3.7 g (0.13 oz) without the lead. It is intended for use between 4.8 and 6 V (i.e. with 4- or 5-cell NiMH or NiCD battery packs). Servo horns and associated hardware are included.

Key specs at 6 V: 0.07 sec/60°, 6 oz-in (0.4 kg-cm), 3.7 g (0.13 oz).

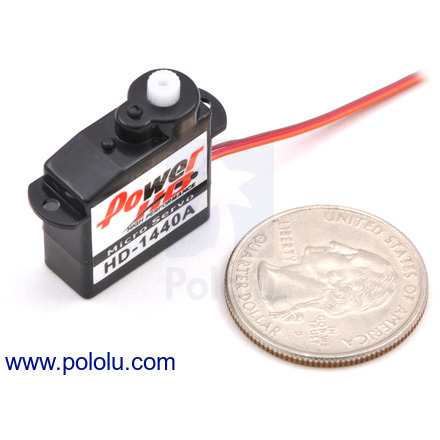

The HD-1440A analog servo from Power HD is one of the smallest servos we carry and is a great, inexpensive, tiny actuator for a small robot mechanism. Servo horns and associated hardware are included.

Key specs at 6 V: 0.10 sec/60°, 11 oz-in (0.8 kg-cm), 4.4 g.

The FS0307 analog sub-micro servo from FEETECH is a great tiny actuator for a small robot mechanism. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 6 V: 0.09 sec/60°, 8 oz-in (0.6 kg-cm), 4.4 g.

The FS0403 analog sub-micro servo from FEETECH is a great tiny actuator for a small robot mechanism. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 6 V: 0.08 sec/60°, 10 oz-in (0.7 kg-cm), 5 g.

This version of the FS0403 sub-micro servo from FEETECH is specially modified to provide access to the feedback potentiometer through a fourth (green) wire, allowing you to directly measure the position of the output. This extra information enables more complex robotics applications, such as determining when the servo has reached its target, detecting when the output is blocked, or implementing your own higher-level closed-loop position control.

Key specs at 6 V: 0.08 sec/60°, 10 oz-in (0.7 kg-cm), 6 g.

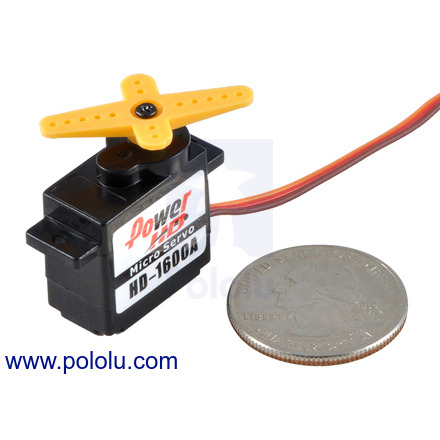

The HD-1600A analog servo from Power HD is a great general-purpose micro servo at a great price. Servo horns and associated hardware are included.

Key specs at 6 V: 0.10 sec/60°, 18 oz-in (1.3 kg-cm), 6.0 g.

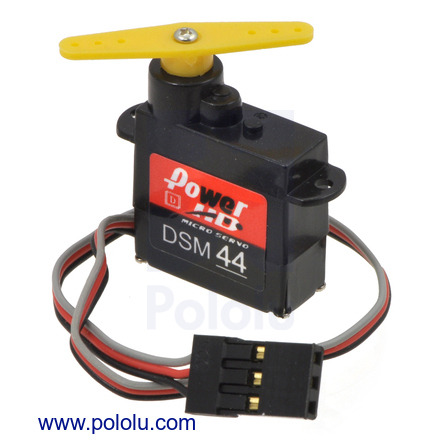

The DSM44 digital servo from Power HD is a micro servo with digital control electronics for enhanced performance and metal gears for increased durability. It is a great tiny actuator for robotic or RC mechanisms that need to be light, quick, and strong. Servo horns and associated hardware are included.

Key specs at 6 V: 0.07 sec/60°, 22 oz-in (1.6 kg-cm), 6 g.

The HD-1800A analog servo from Power HD is a great general-purpose micro servo at a great price. Servo horns and associated hardware are included.

Key specs at 6 V: 0.08 sec/60°, 18 oz-in (1.3 kg-cm), 8.0 g.

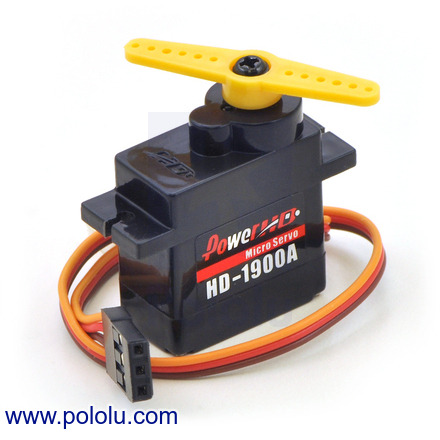

The HD-1900A analog servo from Power HD is a great general-purpose micro servo. Servo horns and associated hardware are included.

Key specs at 6 V: 0.08 sec/60°, 21 oz-in (1.5 kg-cm), 9.0 g.

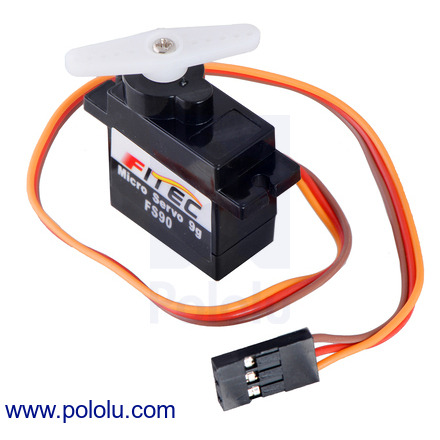

The FS90 analog servo from FEETECH is a great general-purpose micro servo at a great price. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 6 V: 0.10 sec/60°, 21 oz-in (1.5 kg-cm), 9.0 g.

This version of the FS90 micro servo from FEETECH is specially modified to provide access to the feedback potentiometer through a fourth (green) wire, allowing you to directly measure the position of the output. This extra information enables more complex robotics applications, such as determining when the servo has reached its target, detecting when the output is blocked, or implementing your own higher-level closed-loop position control.

Key specs at 6 V: 0.10 sec/60°, 21 oz-in (1.5 kg-cm), 13 g.

The HD-1810MG digital servo from Power HD is a miniature servo with digital control electronics for increased performance. The output shaft is supported by a ball bearing, and the gear train and part of the case are metal for increased durability. Servo horns and associated hardware are included.

Key specs at 6 V: 0.13 sec/60°, 54 oz-in (3.9 kg-cm), 16 g.

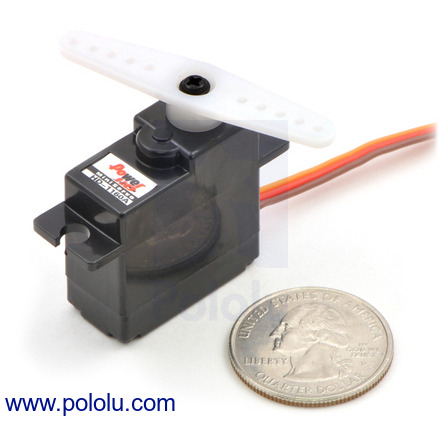

The HD-1160A is an inexpensive, general-purpose miniature analog servo from Power HD. Servo horns and associated hardware are included.

Key specs at 6 V: 0.11 sec/60°, 37 oz-in (2.7 kg-cm), 17 g.

The FT1117 from FEETECH is a miniature-sized servo with the same output spline as standard servos, making it compatible with standard-sized servo horns, and the gear train is made primarily of metal gears. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 6 V: 0.11 sec/60°, 50 oz-in (3.5 kg-cm), 20 g.

This version of the FT1117M miniature servo from FEETECH is specially modified to provide access to the feedback potentiometer through a fourth (green) wire, allowing you to directly measure the position of the output. This extra information enables more complex robotics applications, such as determining when the servo has reached its target, detecting when the output is blocked, or implementing your own higher-level closed-loop position control.

Key specs at 6 V: 0.11 sec/60°, 50 oz-in (3.5 kg-cm), 22 g.

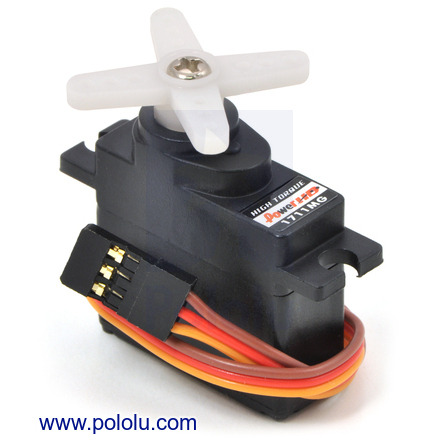

The HD-1711MG from Power HD is a miniature-sized servo with the same output spline as standard servos, making it compatible with standard-sized servo horns. The gear train is a mixture of metal and plastic gears to keep the servo light but strong, and the output shaft is supported by a ball bearing. Servo horns and associated hardware are included.

Key specs at 6 V: 0.11 sec/60°, 50 oz-in (3.5 kg-cm), 18.5 g.

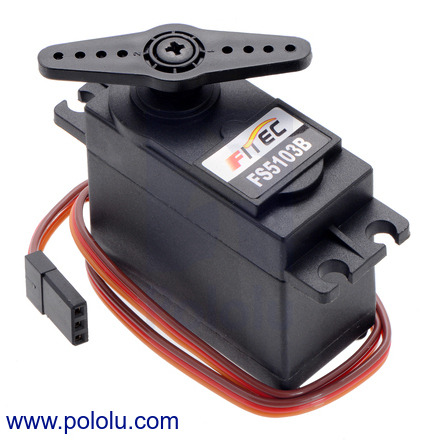

The FS5103B is a general-purpose, low-cost standard analog servo from FEETECH. Two ball bearings help reduce friction and improve performance. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 6 V: 0.16 sec/60°, 53 oz-in (3.8 kg-cm), 40 g.

This version of the FS5103B standard servo from FEETECH is specially modified to provide access to the feedback potentiometer through a fourth (green) wire, allowing you to directly measure the position of the output. This extra information enables more complex robotics applications, such as determining when the servo has reached its target, detecting when the output is blocked, or implementing your own higher-level closed-loop position control.

Key specs at 6 V: 0.16 sec/60°, 53 oz-in (3.8 kg-cm), 43 g.

The 3001HB is a great, general-purpose, low-cost standard analog servo from Power HD. Two ball bearings help reduce friction and improve performance. This is one of our most popular standard-size servos. Servo horns and associated hardware are included.

Key specs at 6 V: 0.12 sec/60°, 61 oz-in (4.4 kg-cm), 43 g.

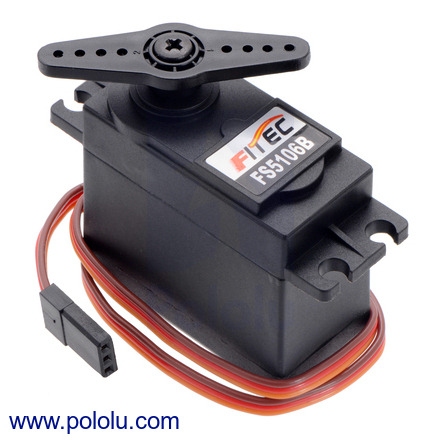

The FS5106B is a general-purpose, low-cost standard analog servo from FEETECH. Two ball bearings help reduce friction and improve performance. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 6 V: 0.16 sec/60°, 83 oz-in (6 kg-cm), 41 g.

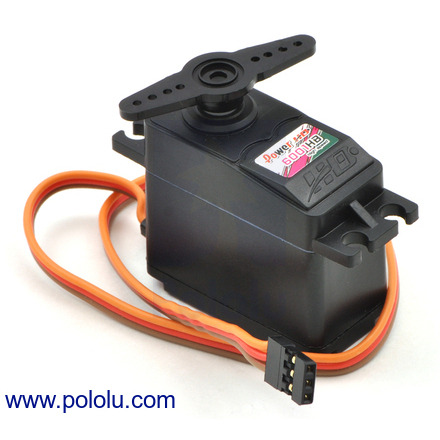

The 6001HB is a low-cost, standard analog servo from Power HD that gives you plenty of torque without sacrificing speed. Two ball bearings help reduce friction and improve performance. Servo horns and associated hardware are included.

Key specs at 6 V: 0.14 sec/60°, 93 oz-in (6.7 kg-cm), 43 g.

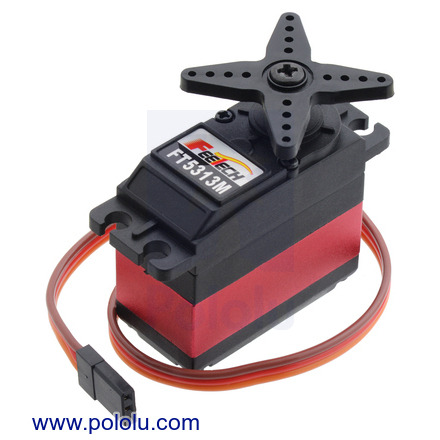

The FT5313M is a standard-size digital servo from FEETECH that is capable of delivering extra-high torque normally associated with more expensive or larger servos thanks to its powerful coreless motor and an all-metal gear train. The output shaft is supported by two ball bearings for reduced friction. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 6 V: 0.10 sec/60°, 190 oz-in (13.8 kg-cm), 60 g.

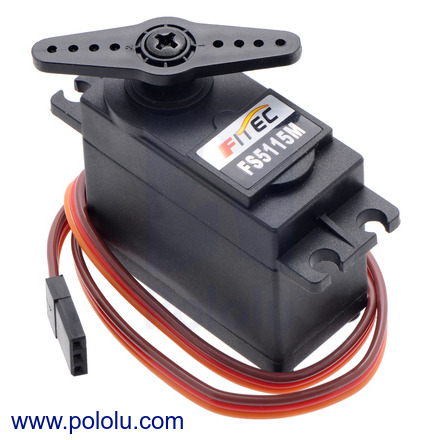

The FS5115M is a standard-size analog servo from FEETECH that has an all-metal gear train and delivers extra-high torque normally associated with much more expensive or larger servos. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 6 V: 0.16 sec/60°, 215 oz-in (15.5 kg-cm), 58 g.

This version of the FS5115M high-torque servo from FEETECH is specially modified to provide access to the feedback potentiometer through a fourth (green) wire, allowing you to directly measure the position of the output. This extra information enables more complex robotics applications, such as determining when the servo has reached its target, detecting when the output is blocked, or implementing your own higher-level closed-loop position control.

Key specs at 6 V: 0.16 sec/60°, 215 oz-in (15.5 kg-cm), 60 g.

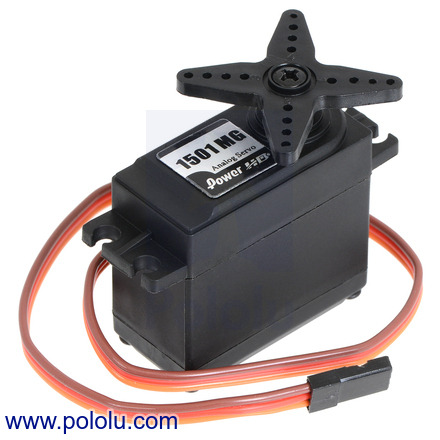

The 1501MG is a metal-geared analog servo from Power HD that delivers extra-high torque normally associated with much more expensive or larger servos. This is one of our most popular standard-size servos. Servo horns and associated hardware are included.

Key specs at 6 V: 0.14 sec/60°, 240 oz-in (17 kg-cm), 60 g.

The FT5121M is a standard-size digital servo from FEETECH that is capable of delivering extra-high torque normally associated with more expensive or larger servos thanks to its powerful coreless motor and an all-metal gear train. The output shaft is supported by two ball bearings for reduced friction. The FT5121M is a high-voltage servo, offering an operating voltage range of 6 V to 7.4 V. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 7.4 V: 0.12 sec/60°, 285 oz-in (20.5 kg-cm), 60 g.

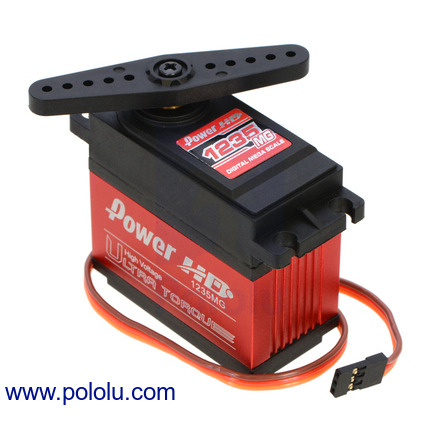

The Power HD 1235MG servo is all about torque. This 1/4-scale servo can deliver an incredible 560 oz-in of torque at 7.4 V or 490 oz-in at 6 V, and it features an all-metal gear train, digital control electronics, and two ball bearings on the output shaft. Unlike typical hobby servos, the 1235MG has an operating voltage range of 6 V to 7.4 V. Servo horns and associated hardware are included.

Key specs at 7.4 V: 0.18 sec/60°, 560 oz-in (40 kg-cm), 170 g.

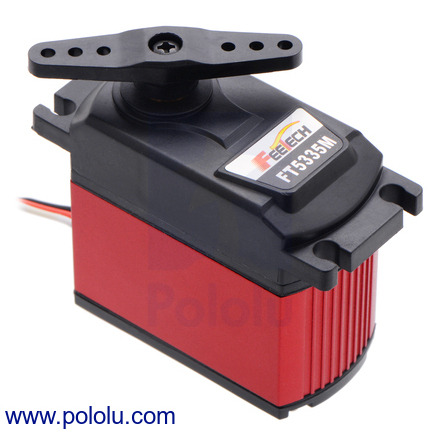

The FEETECH FT5335M servo is all about torque. This 1/4-scale digital servo can deliver an incredible 550 oz-in of torque at 7.4 V or 480 oz-in at 6 V thanks to its powerful motor and all-metal gear train. The FT5335M is a high-voltage servo, offering an operating voltage range of 6 V to 7.4 V. Servo horns and associated hardware are included. This servo can work with both 5 V and 3.3 V servo signals.

Key specs at 7.4 V: 0.18 sec/60°, 550 oz-in (40 kg-cm), 180 g.

This version of the 1/4-scale FT5335M ultra-high-torque, high-voltage digital giant servo from FEETECH is specially modified to provide access to the feedback potentiometer through a fourth (green) wire, allowing you to directly measure the position of the output. This extra information enables more complex robotics applications, such as determining when the servo has reached its target, detecting when the output is blocked, or implementing your own higher-level closed-loop position control.

Key specs at 7.4 V: 0.18 sec/60°, 550 oz-in (40 kg-cm), 180 g.

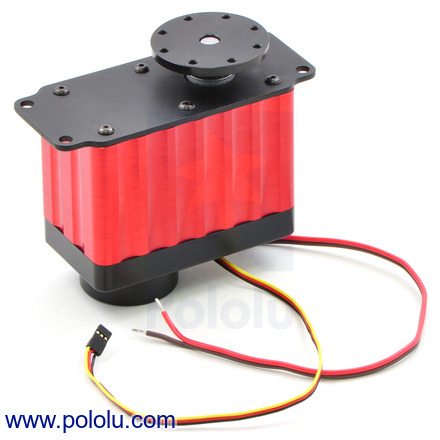

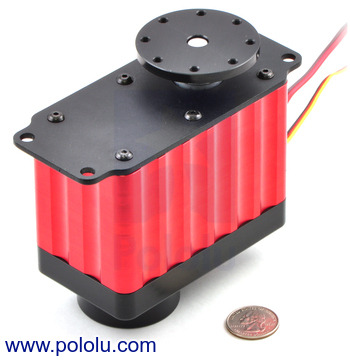

The i00600 Torxis is an ultra-high-torque servo that can deliver a continuous duty torque of up to 1600 oz-in (115 kg-cm) at 12 V. This monster servo is controlled via the standard radio-controlled hobby servo interface and can travel 90 degrees in 1.5 seconds. The Torxis servo’s strength makes it suitable for applications that are too demanding even for giant-scale servos, and its 0.125"-thick mounting flange and aluminum main housing make it rugged enough for the rigors of a factory environment.

The i00800 Torxis is an ultra-high-torque servo that can deliver a continuous duty torque of up to 800 oz-in (57 kg-cm) at 12 V. This monster servo is controlled via the standard radio-controlled hobby servo interface and can travel 90 degrees in 0.75 seconds. The Torxis servo’s strength makes it suitable for applications that are too demanding even for giant-scale servos, and its 0.125"-thick mounting flange and aluminum main housing make it rugged enough for the rigors of a factory environment.
