Pololu G2 High-Power Motor Driver 24v30 CS
This discrete MOSFET H-bridge motor driver enables bidirectional control of one high-power brushed DC motor. The 1.9″ × 1.7″ board supports a wide 6.5 V to 40 V voltage range and is efficient enough to deliver up to around 30 A continuous without a heat sink. Additional features include reverse-voltage protection, basic current limiting, and an on-board current sensor that provides a direct measurement of the motor current.
Compare all products in Pololu High-Power Motor Drivers or Single-Channel G2 and H2 High-Power Motor Drivers.
| Description | Specs (14) | Pictures (12) | Resources (3) | FAQs (1) | On the blog (0) | Distributors (0) |
|---|
|

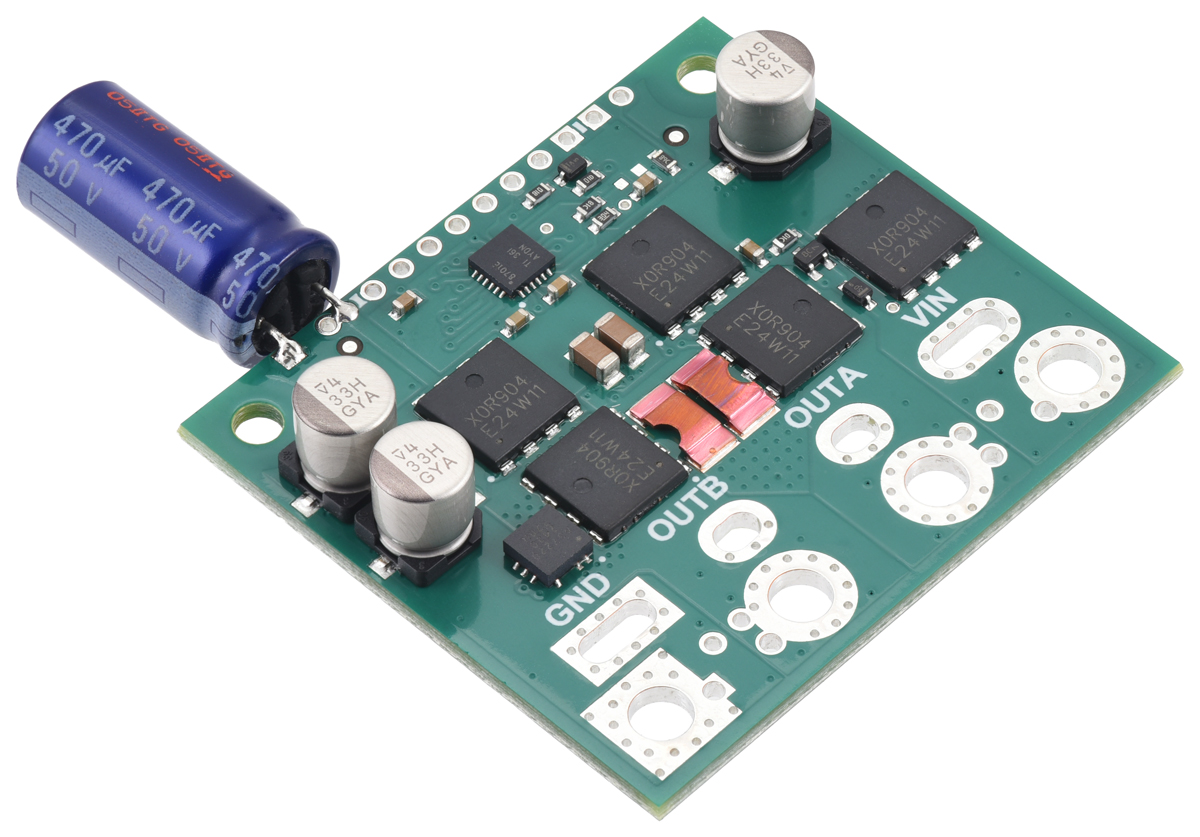

Pololu G2 High-Power Motor Driver 24v30 CS. |
|---|
 |
Pinout of the Pololu G2 High-Power Motor Driver 24v30 CS. |
|---|
 |

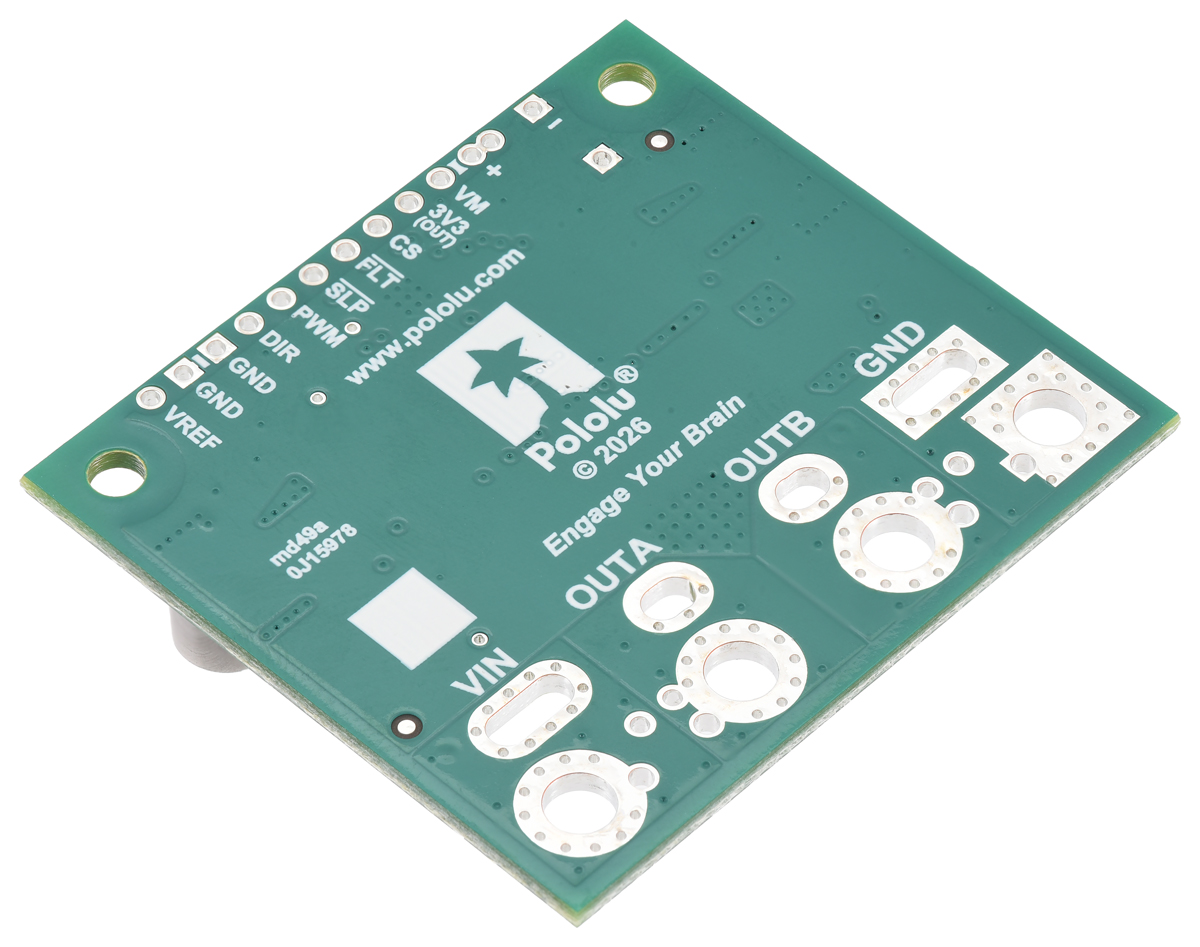

Pololu G2 High-Power Motor Driver 24v30 CS, bottom view. |
|---|
 |

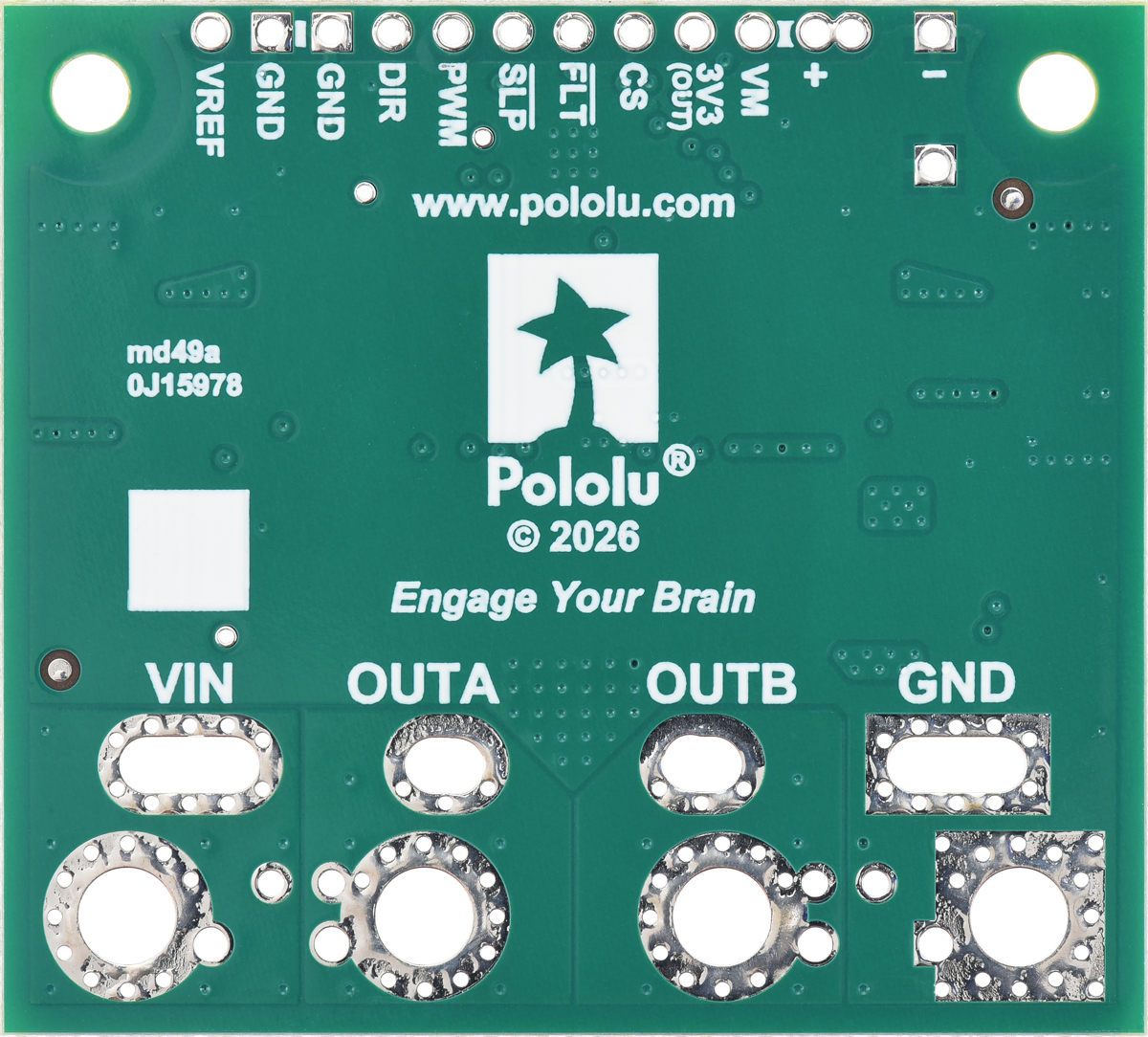

Pololu G2 High-Power Motor Driver 24v30 CS, bottom view with dimensions and a US quarter for size reference. |
|---|
 |
Pololu G2 High-Power Motor Driver 24v30 CS. |
|---|
 |
Pololu G2 High-Power Motor Driver 24v30 CS, bottom view. |
|---|
 |

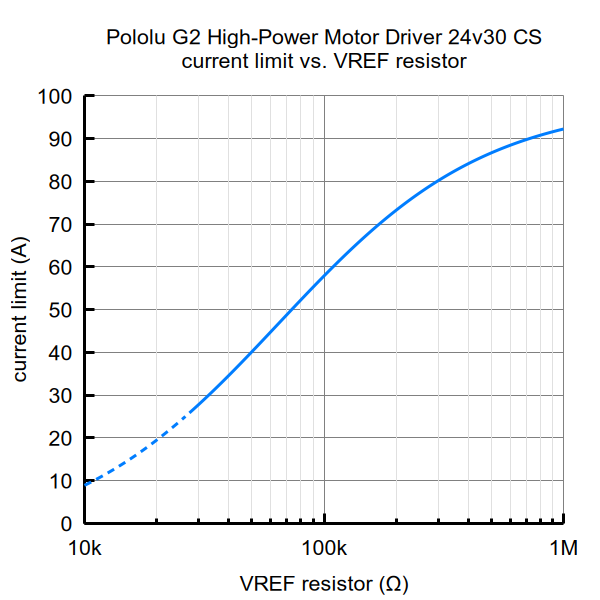

Current limit vs. VREF resistor for the Pololu G2 High-Power Motor Driver 24v30 CS. |
|---|
 |

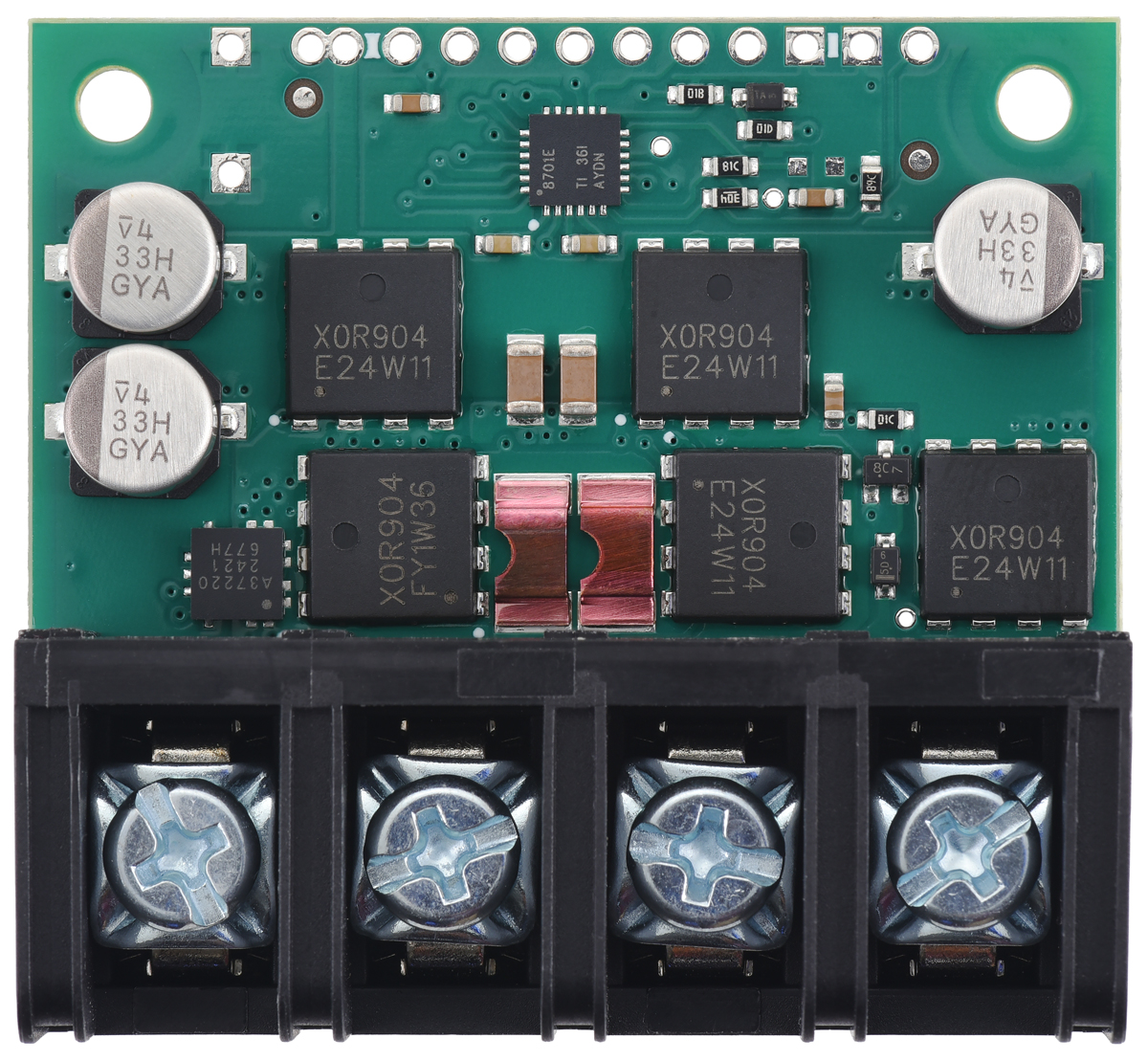

Pololu G2 High-Power Motor Driver 24v30 CS with an Eaton CB30220407 terminal block (not included) for the motor and power connections. |
|---|
 |
Pololu G2 High-Power Motor Driver 24v30 CS with an Eaton CB30220407 terminal block (not included) for the motor and power connections. |
|---|
 |

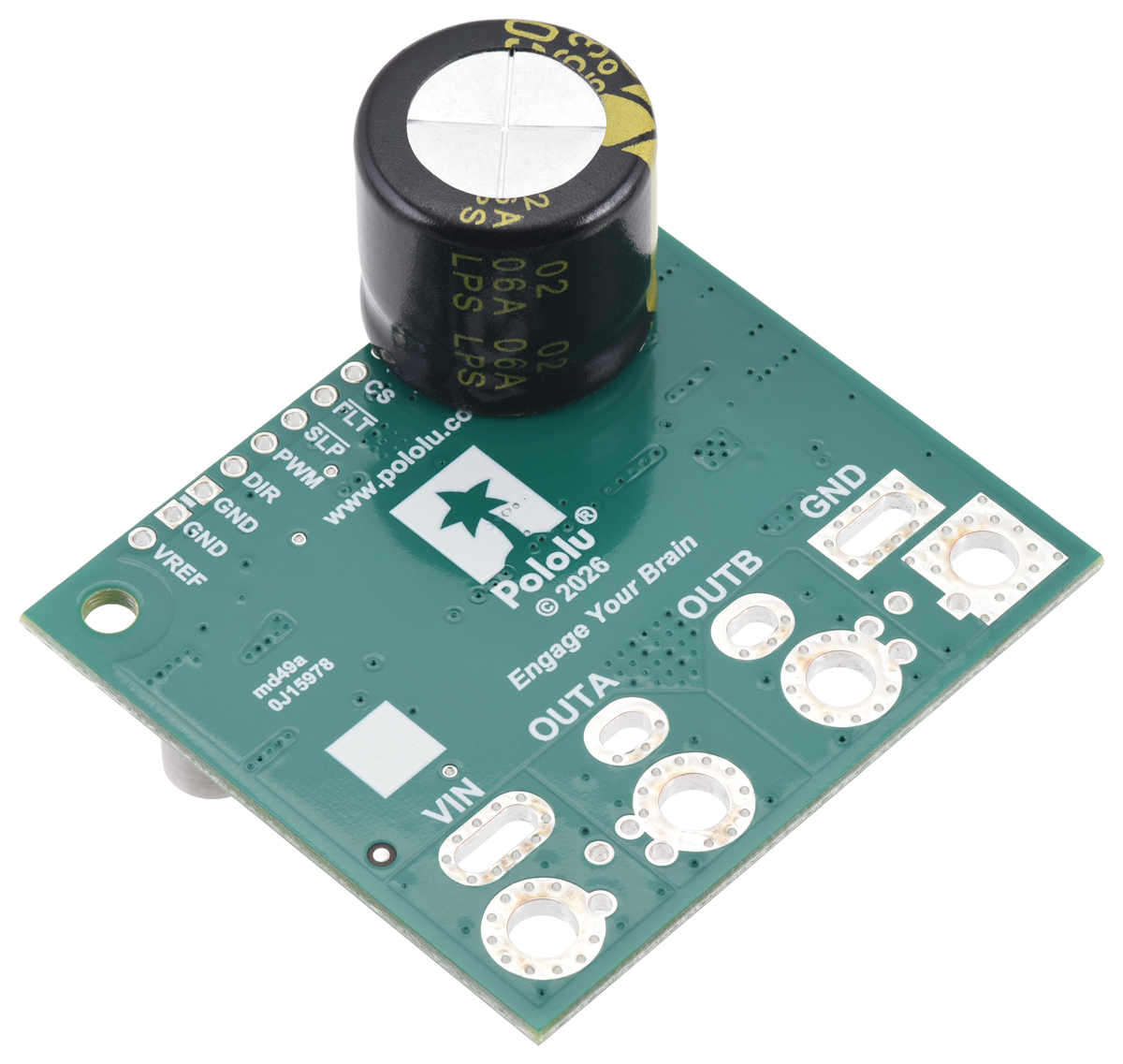

Example of adding a capacitor to the back side of the Pololu G2 High-Power Motor Driver 24v30 CS. |
|---|
 |
Example of adding a capacitor to the Pololu G2 High-Power Motor Driver 24v30 CS. |
|---|
 |
Thermal image of a high-current test. |
|---|
