Pololu Wheel for Standard Servo Splines (25T, 5.8mm) - 70×8mm, White, 2-Pack

Pololu item #: 4929
Brand: Pololu supply outlook
Status: Active and Preferred
RoHS 3 compliant

Price break Unit price (US$)
1 7.75
5 7.13
25 6.56


backorders allowed

These white plastic wheels have silicone tires and measure 70 mm (2.75″) in diameter. They mount onto standard servo splines with 25 teeth and a 5.8 mm diameter, such as the splines on FEETECH’s FS5106R, Power HD’s AR-3606HB, and SpringRC’s SM-S4303R continuous rotation servos. This product is a pair of wheels.

We have similar wheels available in different sizes and colors and with different spline compatibilities:

Alternatives available with variations in these parameter(s): size color shaft type Select variant…

 Description Specs (5) Pictures (9) Resources (2) FAQs (1) On the blog (1) Distributors (0)

Overview

These plastic wheels with silicone tires are 8 mm (0.3″) wide and 70 mm (2.75″) in diameter and are designed for use with standard servos with 5.8 mm diameter splines with 25 teeth, such as FEETECH’s FS5106R, Power HD’s AR-3606HB, and SpringRC’s SM-S4303R continuous rotation servos. The combination can serve as a small, inexpensive, and easy-to-control drive system for a miniature robot. The wheel presses onto the servo spline just like a typical servo horn, and the small screw included with the servo accessory pack for mounting servo horns should be used to hold the wheel in place.

90 mm and 70 mm Pololu Wheels for Standard Servo Splines on FEETECH’s FS5106R and Power HD’s AR-3606HB continuous rotation servos.

90 mm and 70 mm Pololu Wheels for Standard Servo Splines (25T, 5.8mm).

The wheels feature six mounting holes sized for #4 or M3 screws, one on each wheel spoke, with opposite pairs of holes spaced 19.1 mm (0.75″) apart. This spacing is compatible with our larger universal mounting hubs, which can serve as adapters between these wheels and the shafts on our larger metal gearmotors and stepper motors (see the table at the bottom of this page for information about which wheels are compatible with which universal mounting hubs). The pictures below shows these wheels with a universal mounting hub for 4mm shafts installed so it can work with our 20D or 25D metal gearmotors.

70 mm Pololu Wheel for Standard Servos with a universal mounting hub.

70 mm Pololu Wheel for Standard Servos with a universal mounting hub and 37D metal gearmotor.

The slots in the six spokes fit #2 or M2 screws and allow additional accessories to be mounted to the wheel such as decorations or parts of an encoder system.

The included silicone tires, which feature horizontal treads for improved traction, are also available separately.

Details for item #4929

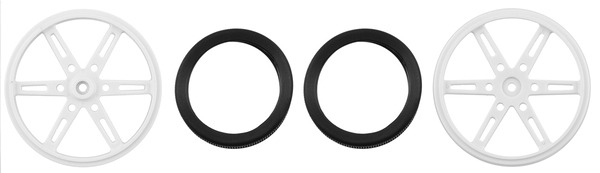

Parts included with Pololu Wheel for Standard Servo Splines (25T, 5.8mm) – 70×8mm, White, 2-Pack.

This is the white version of our 70×8mm wheel pair for standard servo splines. These same-sized wheels are also available in black or red.

Other wheel options

We have similar wheels available in different sizes and colors:

Alternatives available with variations in these parameter(s): size color Select variant…

Black Pololu Wheels with 90, 80, 70, 60, 40, and 32 mm diameters (other colors available).

Pololu Wheels with 90, 80, 70, and 60 mm diameters in three colors: blue, red, and yellow.

These wheels are compatible with our Universal Mounting Hubs, which are available for different shaft sizes and mounting hole thread options, as shown in the table below. These mounting hubs can be used as adapters between these wheels and a variety of different motor shafts.

Pololu Universal Mounting Hubs
for 3mm shafts for 4mm shafts for 5mm shafts for 6mm shafts for 1/4″ shafts for 8mm shafts
M3 holes
#4-40 holes
#2-56 holes
M3 holes
#4-40 holes

M3 holes
#4-40 holes

M3 holes
#4-40 holes

M3 holes
#4-40 holes

M3 holes



Pololu Wheels for 3mm Shafts
32×7mm
40×7mm
60×8mm
70×8mm
80×10mm
90×10mm

Pololu Wheels for Servos
40×7mm
60×8mm
70×10mm
90×10mm

Pololu Multi-Hub Wheels
80×10mm

White Pololu Wheel 60×8mm on a Pololu 20D mm Metal Gearmotor.

Black Pololu Wheel 90×10mm on a Pololu 37D mm Metal Gearmotor.
