Magnetic Encoder Pair Kit with Side-Entry Connector for Mini Plastic Gearmotor, 12 CPR, 2.7-18V

Pololu item #: 3547
Brand: Pololu	supply outlook

Notify me when stock is at least Optional: desired quantity
Status: Active and Preferred

Free add-on shipping in USA
Free shipping in USA over $75

Coupons available:

ENC05AINTRO in cart

Price break	Unit price (US$)
1	8.95
5	8.23
25	7.58
100	6.97

Quantity:
backorders allowed

Add quadrature encoders to your mini plastic gearmotors with this kit that uses a magnetic disc and Hall effect sensors to provide 12 counts per revolution of the motor shaft. The sensors operate from 2.7 V to 18 V and provide digital outputs that can be connected directly to a microcontroller or other digital circuit. These encoders have a side-entry, 6-pin male JST SH-type connector, and we have compatible cables available in a variety of lengths.

This kit includes two encoder boards and two magnetic discs.

Alternatives available with variations in these parameter(s): connector Select variant…

Compare all products in Encoders for Mini Plastic Gearmotors or Romi Chassis and Accessories.

	Description		Specs (7)		Pictures (12)		Resources (4)		FAQs (0)		On the blog (0)		Distributors (0)

Magnetic Encoder Pair Kit with Side-Entry Connector for Mini Plastic Gearmotor, 12 CPR, 2.7-18V.

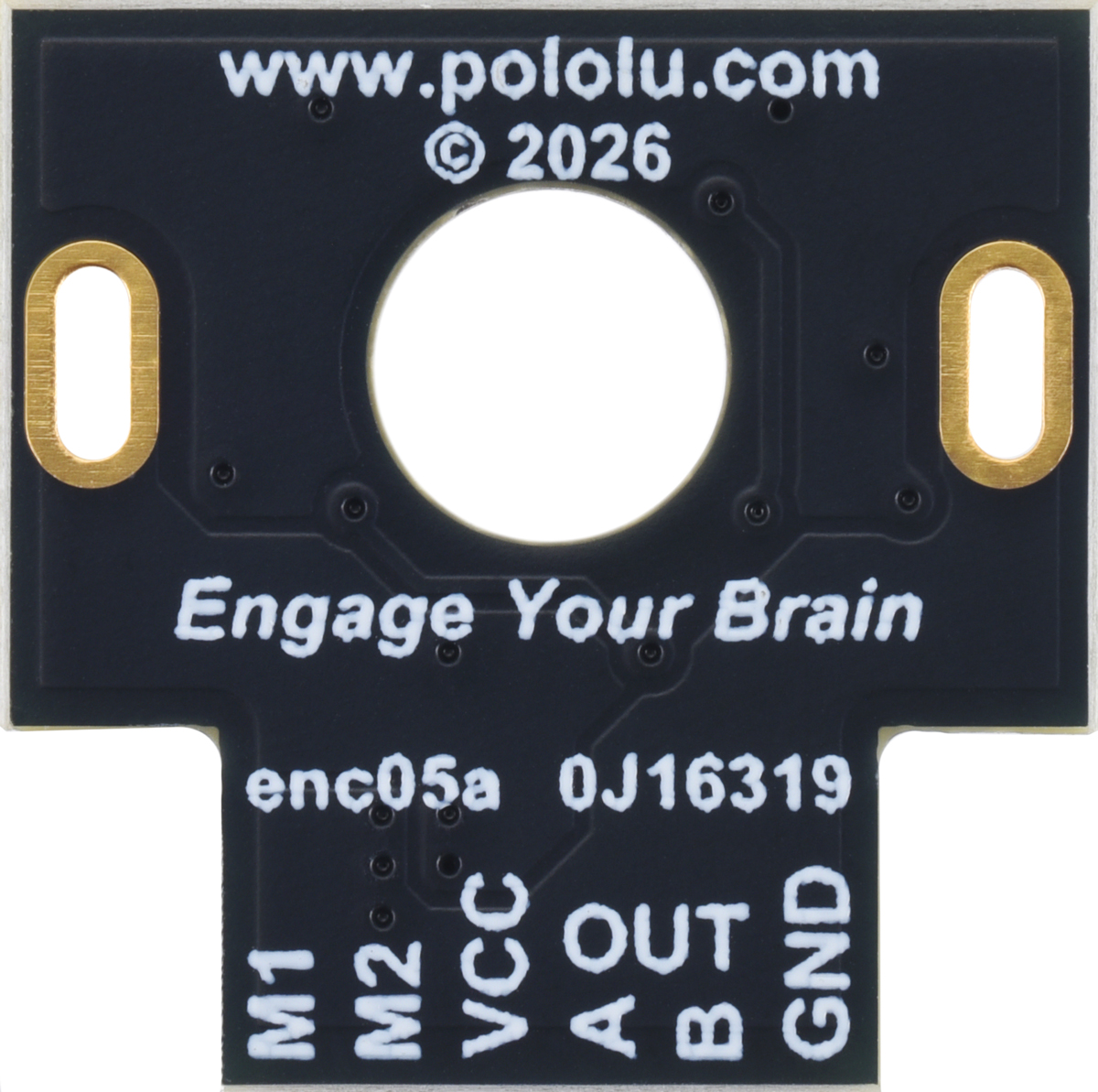

Pinout of the Magnetic Encoder with Side-Entry Connector for Mini Plastic Gearmotor.

Magnetic Encoder with Side-Entry Connector on a Mini Plastic Gearmotor (cable not included).

Basic dimensions of the Magnetic Encoder with JST SH-Type Connector (Top-Entry or Side-Entry) for Mini Plastic Gearmotor.

Magnet-side view of the Magnetic Encoder with Side-Entry Connector for Mini Plastic Gearmotor, 12 CPR, 2.7-18V.

Motor-side view of the Magnetic Encoder with Top-Entry Connector for Mini Plastic Gearmotor, 12 CPR, 2.7-18V.

Magnetic Encoder with Side-Entry Connector on a Mini Plastic Gearmotor.

Magnetic Encoder with Side-Entry Connector on a Mini Plastic Gearmotor.

Magnetic Encoder with Side-Entry Connector on a Mini Plastic Gearmotor.

Magnetic Encoder with Side-Entry Connector on a Mini Plastic Gearmotor.

Schematic diagram of the Magnetic Encoder with JST SH-Type Connector (Top-Entry or Side-Entry) for Mini Plastic Gearmotor.

Encoder A and B outputs of a magnetic encoder on a high-power (HP) mini plastic gearmotor running at 4.5 V.
