MP6603 Stepper Motor Driver Carrier
This breakout board for the MPS MP6603 microstepping bipolar stepper motor driver offers microstepping down to 1/8-step and operates from 8 V to 55 V. It can deliver up to approximately 2 A per phase continuously without a heat sink or forced air flow (up to 4 A peak). The module has a pinout and interface that are very similar to that of our popular A4988 carriers, so it can be used as a drop-in replacement for those boards in many applications. It features built-in protection against under-voltage, over-voltage, over-current, and over-temperature conditions, and configurable input modes allow it to alternatively drive brushed DC motors and other loads.
Alternatives available with variations in these parameter(s): header pins soldered? Select variant…
Compare all products in MP6603 Stepper Motor Driver Carriers or 16-pin Stepper Motor Drivers.
| Description | Specs (14) | Pictures (12) | Resources (5) | FAQs (4) | On the blog (0) | Distributors (0) |
|---|
|
MP6603 Stepper Motor Driver Carrier. |
|---|
 |
MP6603 Stepper Motor Driver Carrier, bottom view. |
|---|
 |
MP6603 Stepper Motor Driver Carrier, bottom view with dimensions. |
|---|
 |
MP6603 Stepper Motor Driver Carrier, top view. |
|---|
 |

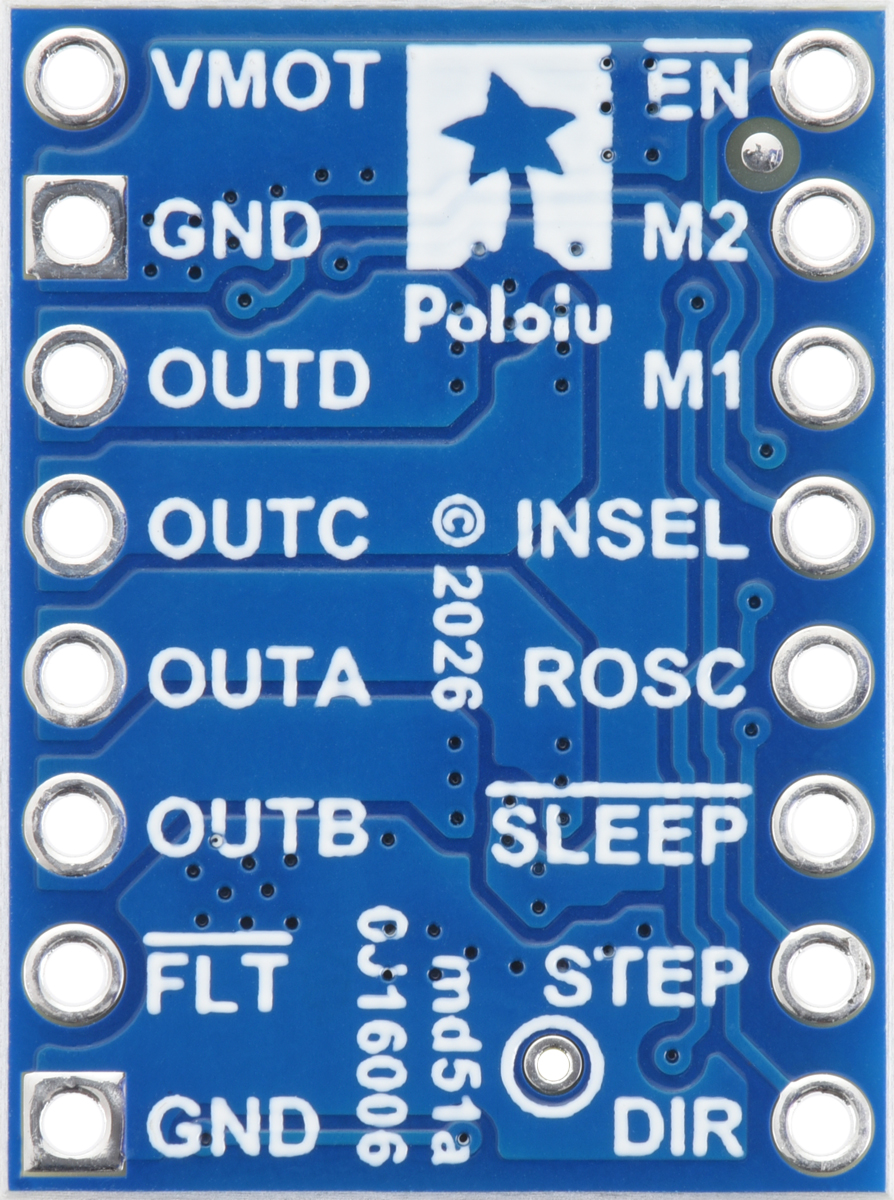

MP6603 Stepper Motor Driver Carrier, bottom view. |
|---|
 |
MP6603 Stepper Motor Driver Carrier (Soldered Header Pins). |
|---|
 |

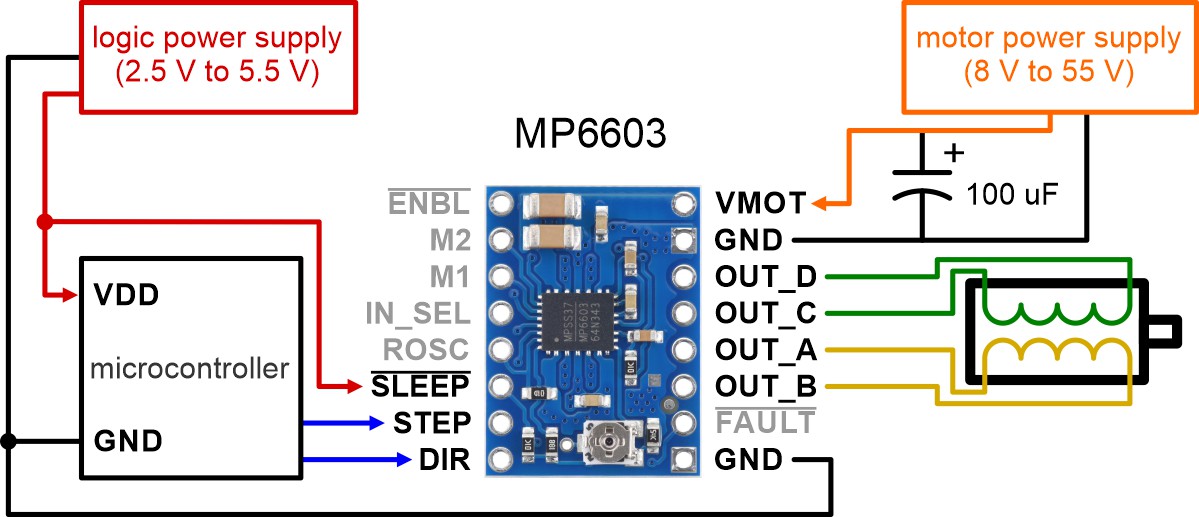

Minimal wiring diagram for connecting a microcontroller to an MP6603 Stepper Motor Driver Carrier (full-step mode). |
|---|
 |

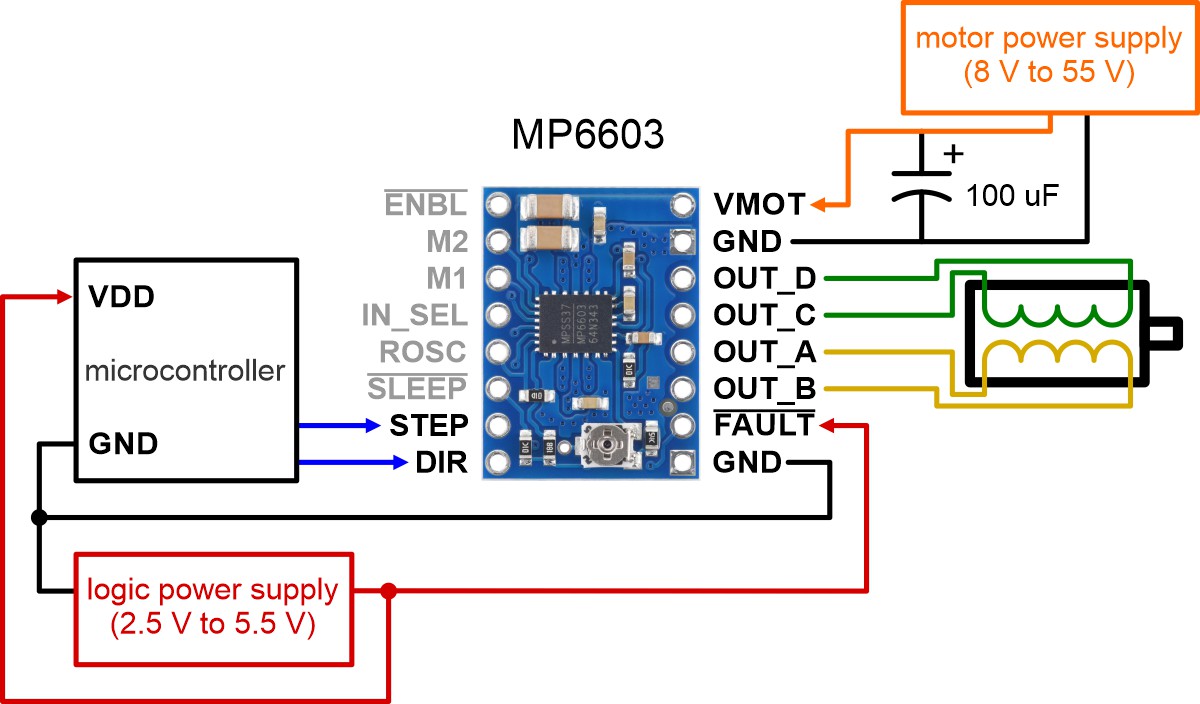

Alternative minimal wiring diagram for connecting a microcontroller to an MP6603 Stepper Motor Driver Carrier (full-step mode). |
|---|
 |
Current limit vs. potentiometer setting for the MP6603 Stepper Motor Driver Carrier. |
|---|
 |
VREF pin on the MP6603 Stepper Motor Driver Carrier. |
|---|
 |
Schematic diagram of the MP6603 Stepper Motor Driver Carrier. |
|---|
 |
Schematic of nSLEEP and nFAULT pins on MP6603 carrier. |
|---|
