TB67S579FTG Stepper Motor Driver Carrier - Full Breakout
This breakout board for Toshiba’s TB67S579FTG microstepping bipolar stepper motor driver provides access to all of the driver’s pins, enabling use of its many features, including advanced dynamic mixed decay (ADMD), automatic gain control (AGC), and automatic wave generation system (AWGS). The TB67S579FTG has a wide operating voltage range of 4.5 V to 34 V, and our carrier board can deliver approximately 1.2 A per phase continuously without a heat sink or forced air flow (up to 2 A peak). It features built-in protection against over-current and over-temperature conditions.
Compare all products in TB67S579FTG Stepper Motor Driver Carriers or 16-pin Stepper Motor Drivers.
| Description | Specs (15) | Pictures (12) | Resources (8) | FAQs (4) | On the blog (0) | Distributors (0) |
|---|
|
TB67S579FTG Stepper Motor Driver Carrier – Full Breakout. |
|---|
 |

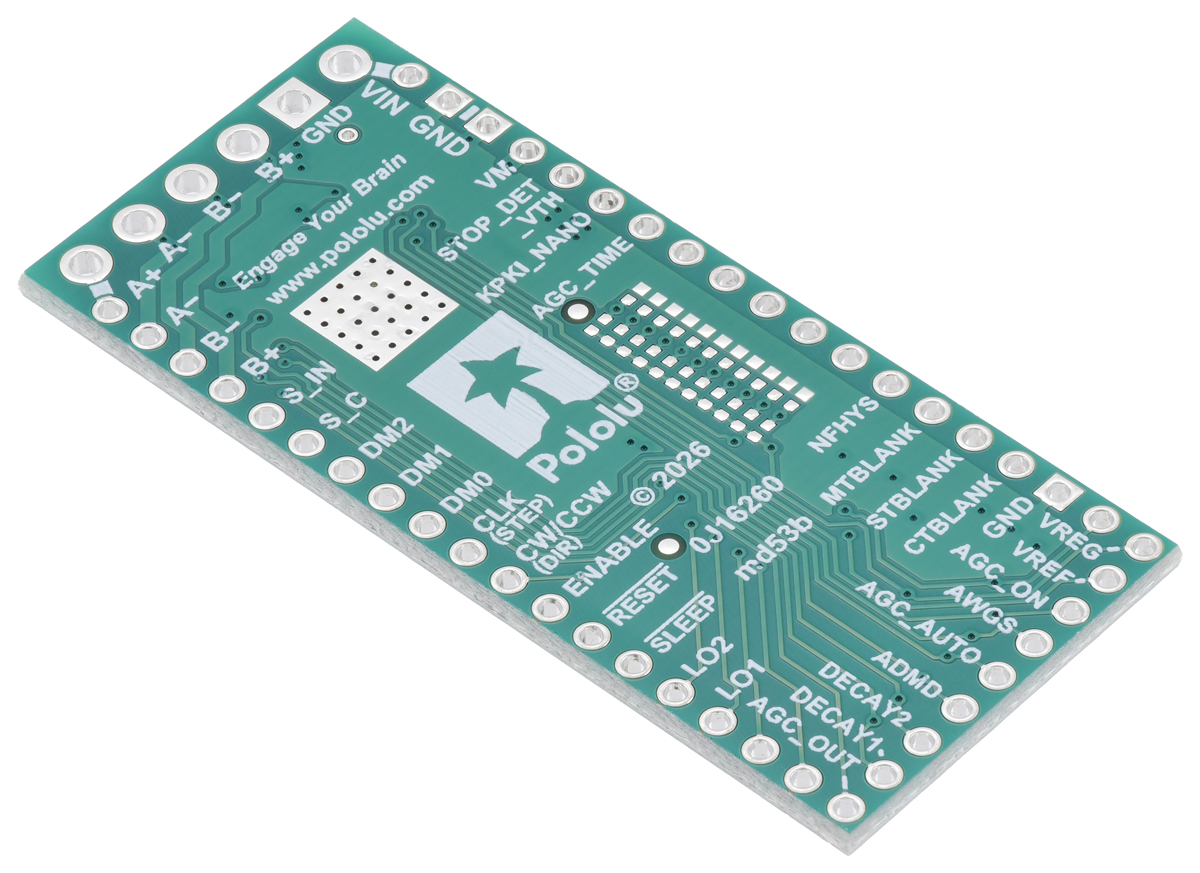

TB67S579FTG Stepper Motor Driver Carrier – Full Breakout, bottom view. |
|---|
 |
Pinout diagram of the TB67S579FTG Stepper Motor Driver Carrier – Full Breakout. |
|---|
 |
Schematic diagram of the TB67S579FTG Stepper Motor Driver Carrier – Full Breakout. |
|---|
 |
TB67S579FTG Stepper Motor Driver Carrier – Full Breakout, bottom view with dimensions and a US quarter for size reference. |
|---|
 |
The full-breakout TB67S579FTG Stepper Motor Driver Carrier has smaller through-holes that are compatible with 0.1″ headers and larger motor and power through-holes that work with 3.5mm-pitch terminal blocks (through-hole components not included). |
|---|
 |
Optional 0402 SMT configuration pads on the bottom side of the TB67S579FTG Stepper Motor Driver Carrier – Full Breakout. |
|---|
 |
Optional 0603 SMT configuration pads on the top side of the TB67S579FTG Stepper Motor Driver Carrier – Full Breakout. |
|---|
 |

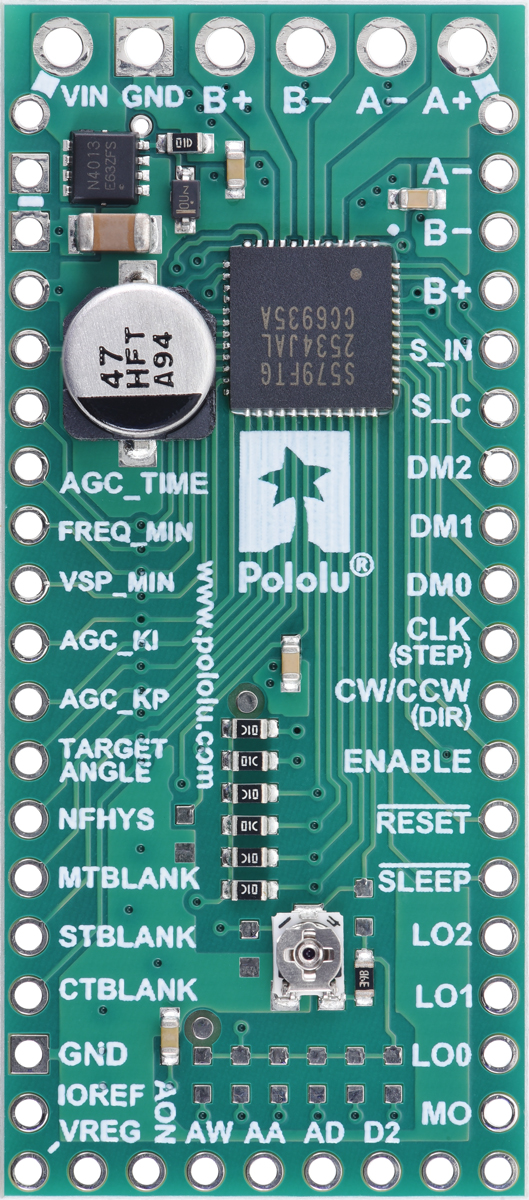

TB67S579FTG Stepper Motor Driver Carrier – Full Breakout, top view. |
|---|
 |

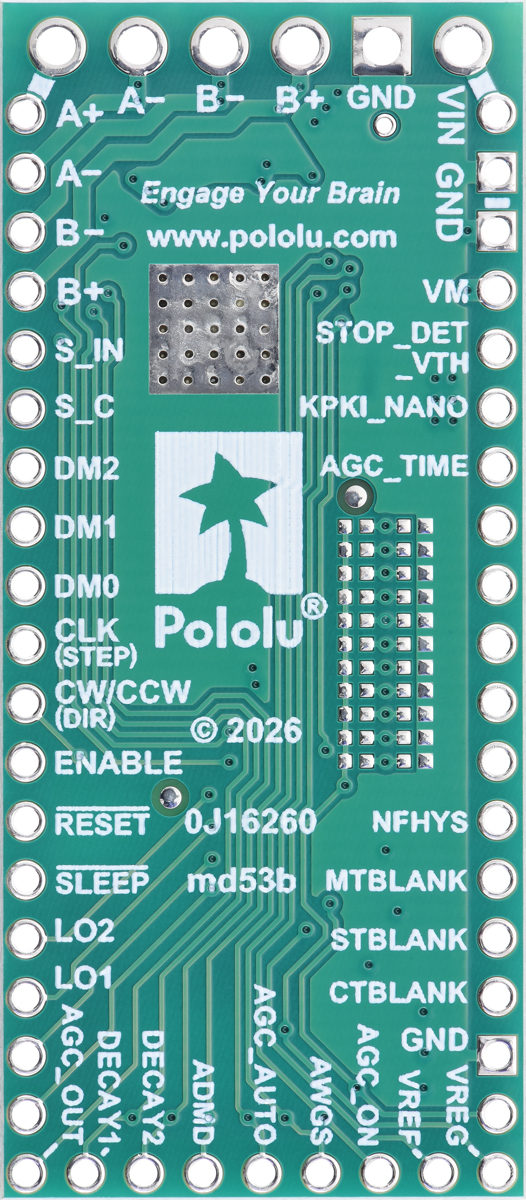

TB67S579FTG Stepper Motor Driver Carrier – Full Breakout, bottom view. |
|---|
 |
Thermal image showing the TB67S579FTG Stepper Motor Driver Carrier – Full Breakout heating up during operation. |
|---|
 |

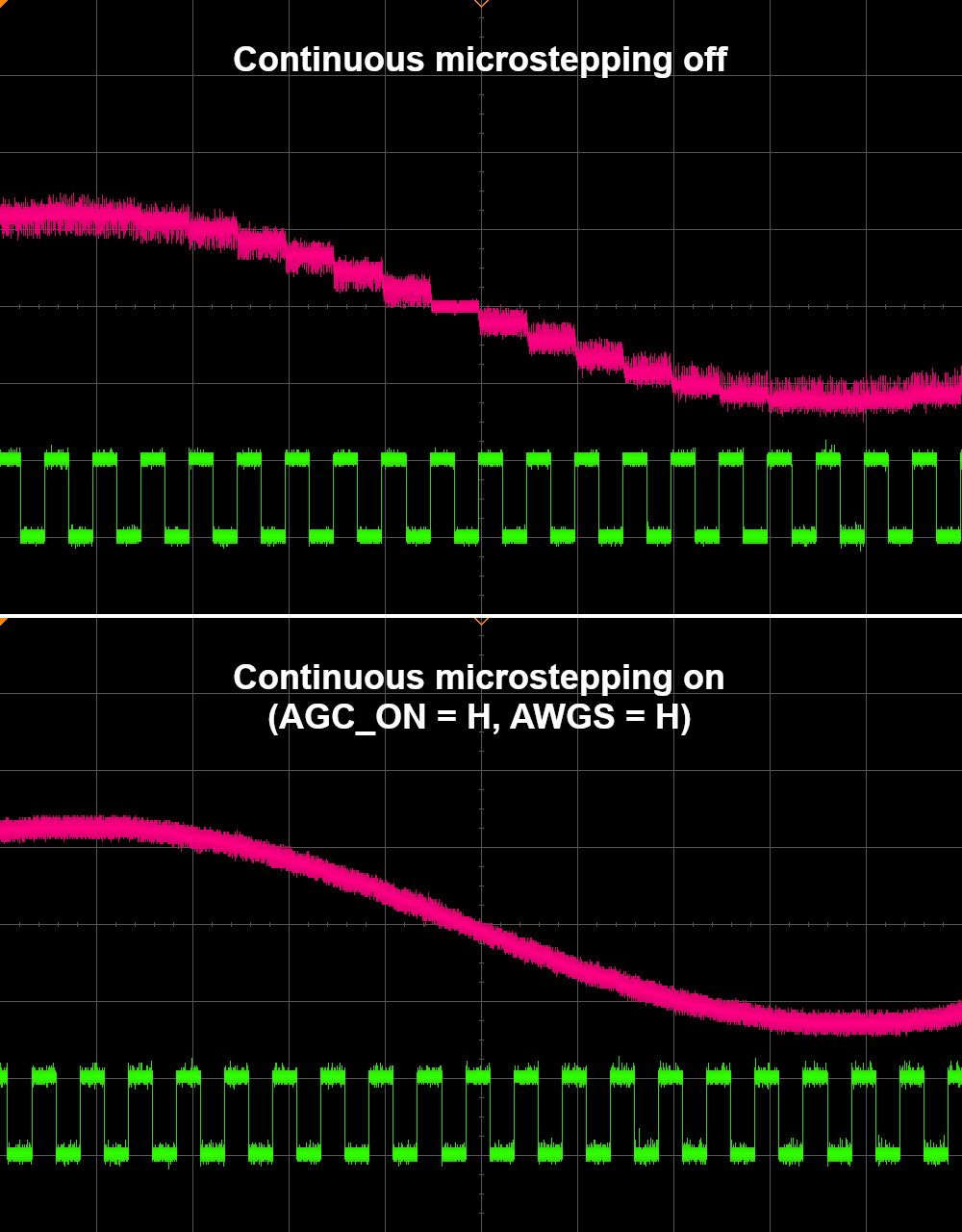

Stepper motor current waveforms from a TB67S579FTG driver in 1/8-step mode with continuous microstepping off and on. |
|---|
