Motoron M3T453 Triple I²C Motor Controller with 0.1"-Pitch Through-Holes (No Headers)
The Motoron M3T453 Triple I²C Motor Controller offers a compact solution for controlling three DC motors through an I²C interface. Multiple Motoron controllers can be connected to the same I²C bus, making it easy to expand a system with additional motors. The M3T453 supports motor supply voltages from 4.5 V to 44 V and can deliver continuous output currents up to 0.8 A per motor. This version has 0.1″-spaced pins for the logic and motor connections, and it ships without any headers included.
Compare all products in Motoron M3T453 Triple Motor Controllers.
| Description | Specs (14) | Pictures (7) | Resources (7) | FAQs (0) | On the blog (0) | Distributors (0) |
|---|
|
Motoron M3T453 Triple I²C Motor Controller with 0.1″-Pitch Through-Holes. |
|---|
 |

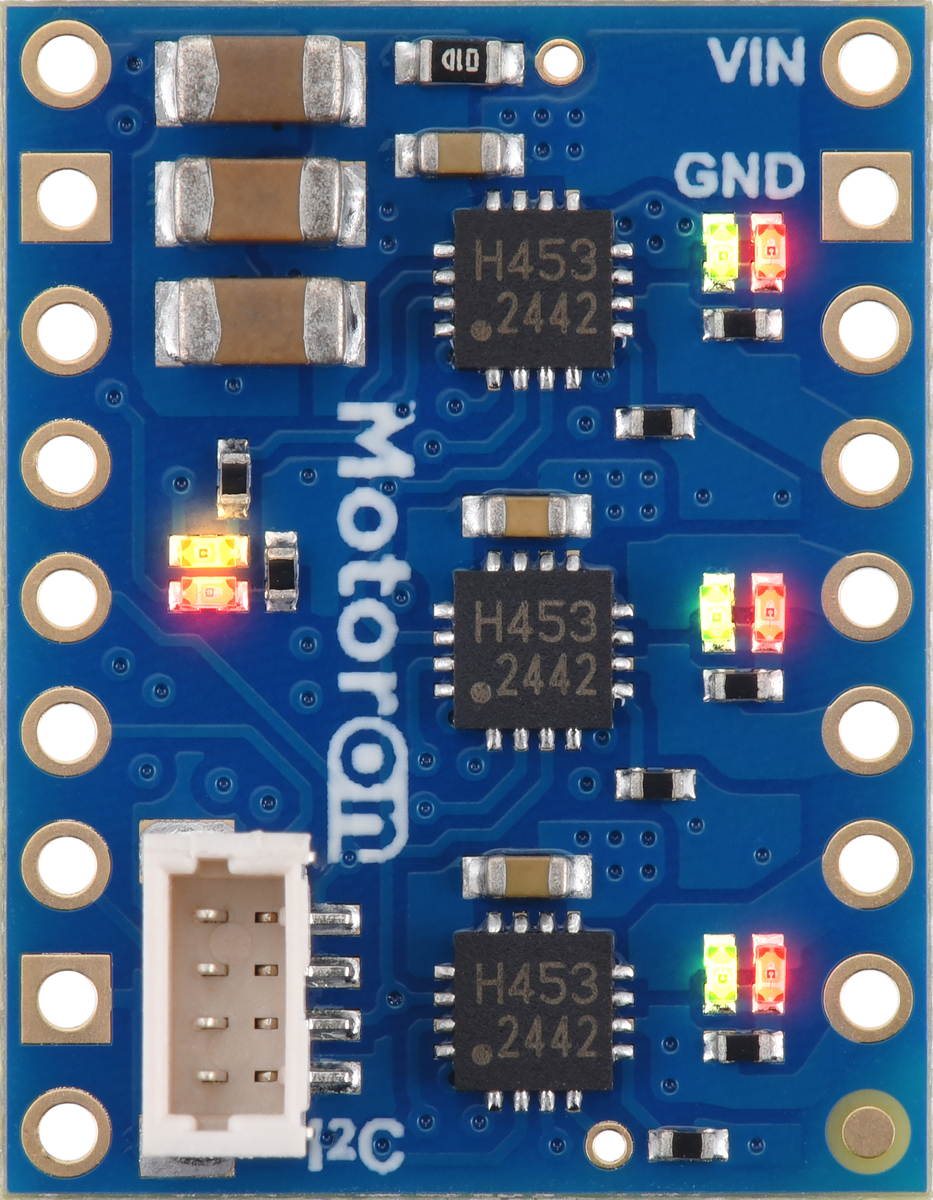

Motoron M3T453 Triple I²C Motor Controller with 0.1″-Pitch Through-Holes, top view. |
|---|
 |

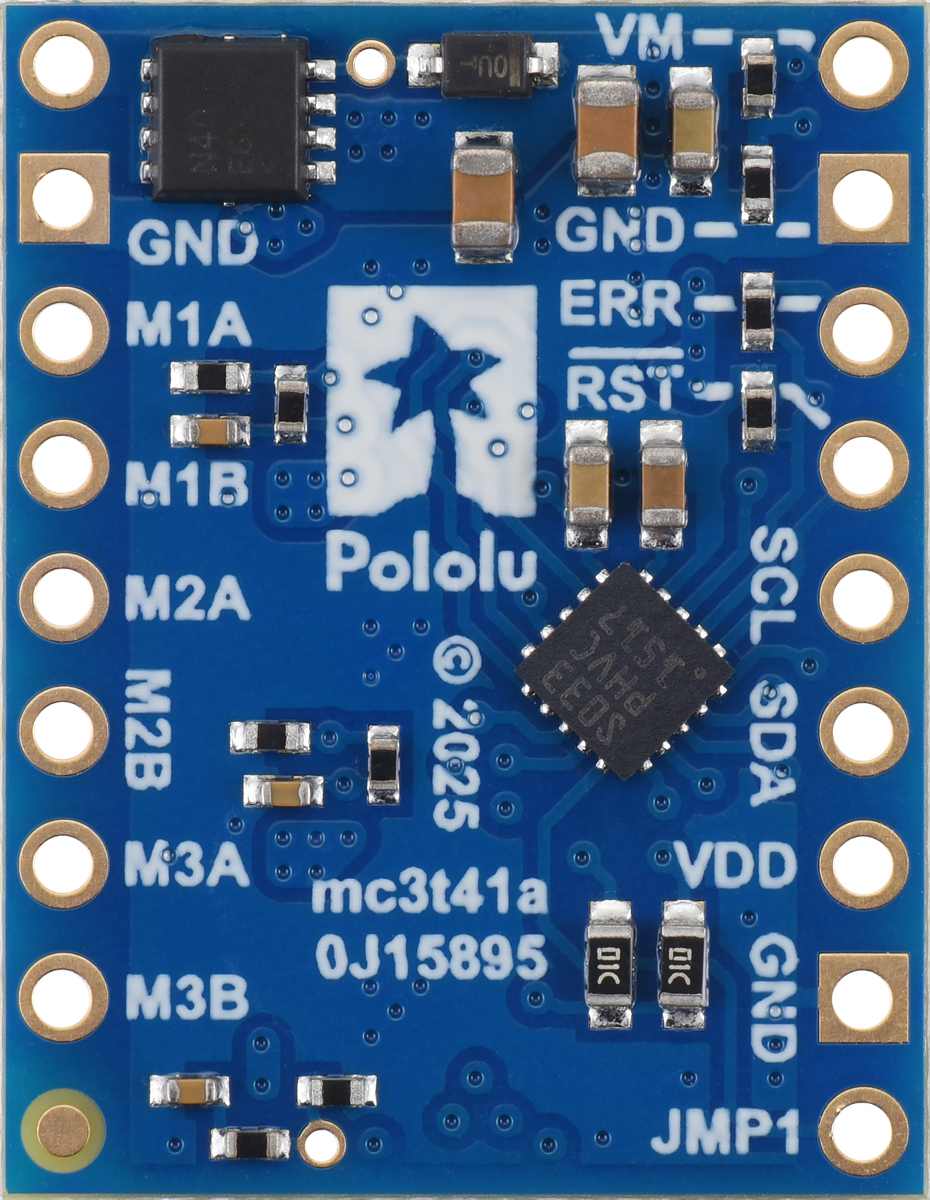

Motoron M3T453 Triple I²C Motor Controller with 0.1″-Pitch Through-Holes, bottom view. |
|---|
 |
Motoron M3T453 Triple I²C Motor Controller with 0.1″-Pitch Through-Holes, bottom view with basic dimensions and a US quarter for size reference. |
|---|
 |
A Raspberry Pi Pico on a breadboard using a Motoron M3T453 Triple I²C Motor Controller with Soldered Headers to control three motors. |
|---|
 |
Typical wiring diagram for connecting a microcontroller to a Motoron M3T453 Triple I²C Motor Controller with 0.1″-Pitch Through-Holes. |
|---|
 |

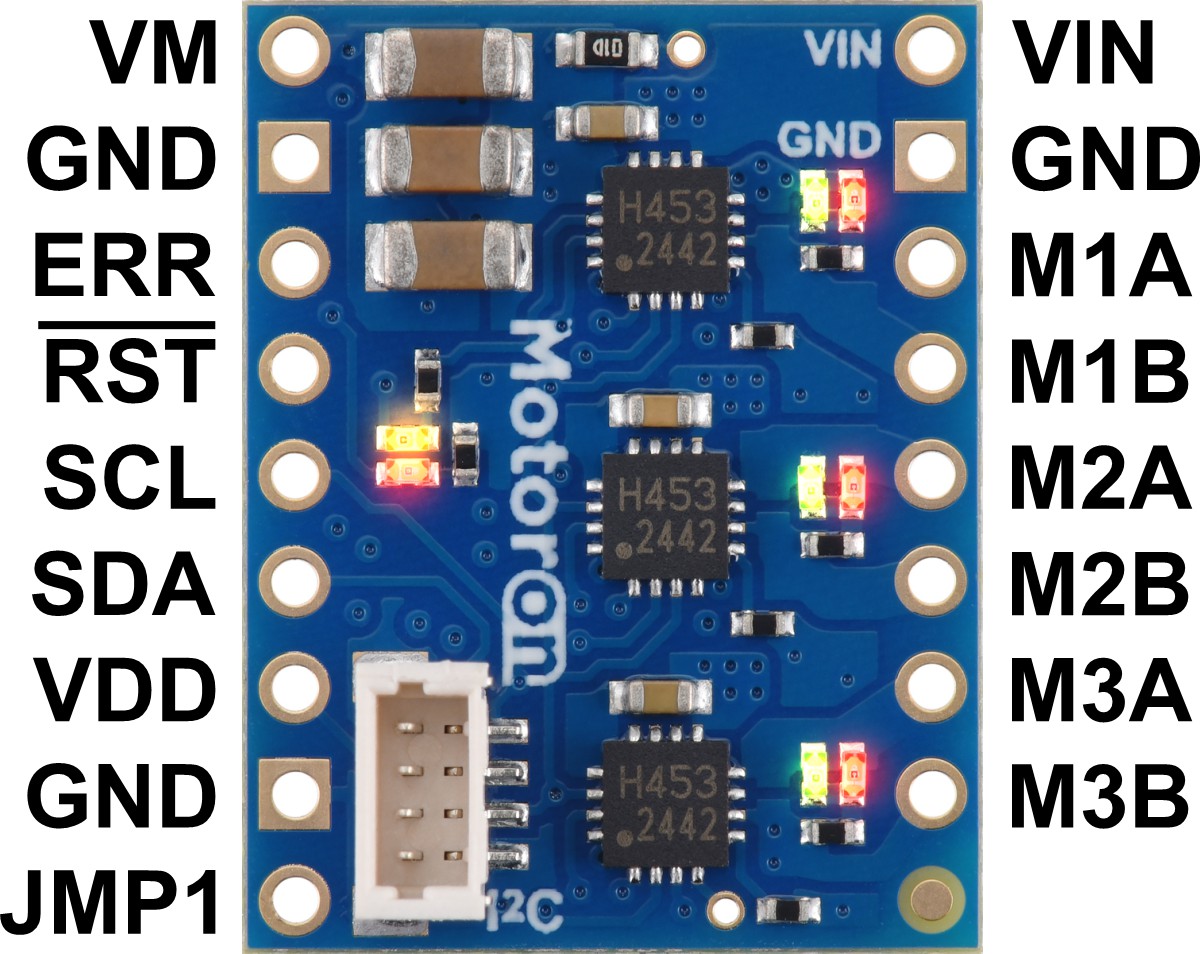

Pinout of the Motoron M3T453 Triple I²C Motor Controller with 0.1″-Pitch Through-Holes. |
|---|
