Motion Control Modules » Brushed DC Motor Controllers » Motoron Motor Controllers »
Motoron M3T453 Triple Motor Controllers
The tiny Motoron M3T453 triple motor controllers make it easy to control DC motors using I²C. Each module supports motor supply voltages from 4.5 V to 44 V and can independently control up to three motors with continuous output currents up to 0.8 A per channel.
| Motoron motor controllers micro triple-channel M3T453 versions |
||
 M3T453 w/JST connectors |
 M3T453 w/0.1″ headers |
|
|---|---|---|
| Control interface: | I²C | |
| Motor channels: | 3 (triple) | |
| Minimum motor supply voltage: |
4.5 V | |
| Absolute max motor supply voltage: |
44 V | |
| Recommended max nominal battery voltage: |
32 V | |
| Max continuous current per channel: |
0.8 A | |
| Available versions: | ||
|
|
Compare all products in this category
Products in category “Motoron M3T453 Triple Motor Controllers”
| Pololu item #: 5082 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|

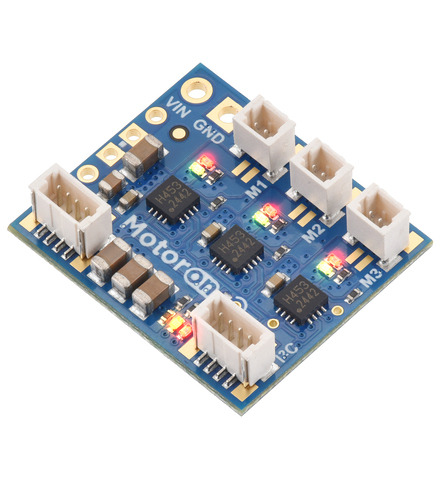

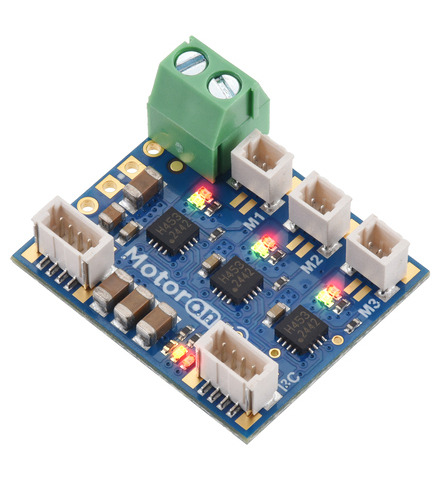

The Motoron M3T453 Triple I²C Motor Controller offers a compact solution for controlling three DC motors through an I²C interface. Multiple Motoron controllers can be connected to the same I²C bus, making it easy to expand a system with additional motors. The M3T453 supports motor supply voltages from 4.5 V to 44 V and can deliver continuous output currents up to 0.8 A per motor. This version has JST SH-style connectors for the I²C and motor connections and a soldered terminal block for the motor power connections.
| Pololu item #: 5083 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
The Motoron M3T453 Triple I²C Motor Controller offers a compact solution for controlling three DC motors through an I²C interface. Multiple Motoron controllers can be connected to the same I²C bus, making it easy to expand a system with additional motors. The M3T453 supports motor supply voltages from 4.5 V to 44 V and can deliver continuous output currents up to 0.8 A per motor. This version has JST SH-style connectors for the I²C and motor connections. It does not include a motor power connector.
| Pololu item #: 5084 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|

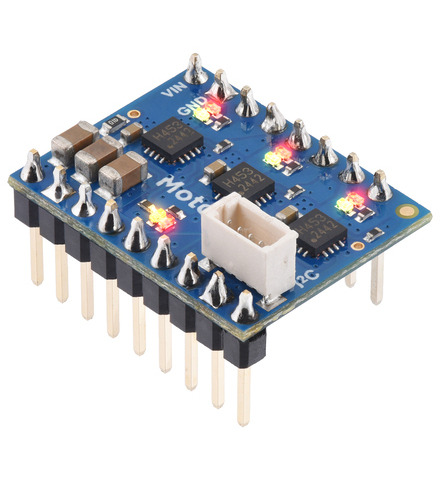

The Motoron M3T453 Triple I²C Motor Controller offers a compact solution for controlling three DC motors through an I²C interface. Multiple Motoron controllers can be connected to the same I²C bus, making it easy to expand a system with additional motors. The M3T453 supports motor supply voltages from 4.5 V to 44 V and can deliver continuous output currents up to 0.8 A per motor. This version has 0.1″-spaced pins for the logic and motor connections, and it ships with soldered headers.
| Pololu item #: 5085 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|

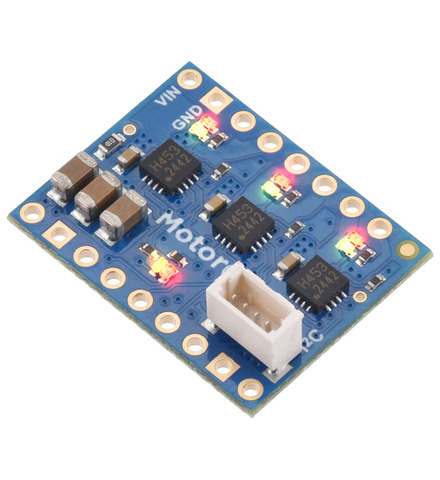

The Motoron M3T453 Triple I²C Motor Controller offers a compact solution for controlling three DC motors through an I²C interface. Multiple Motoron controllers can be connected to the same I²C bus, making it easy to expand a system with additional motors. The M3T453 supports motor supply voltages from 4.5 V to 44 V and can deliver continuous output currents up to 0.8 A per motor. This version has 0.1″-spaced pins for the logic and motor connections, and it ships without any headers included.
