Steel L-Bracket for NEMA 23 Stepper Motors

Pololu item #: 2258 352 in stock
Brand: Unspecified

Price break Unit price (US$)
1 4.95
10 4.46


backorders allowed

This coated steel bracket lets you securely mount typical NEMA 23-size stepper motors to your project. The bracket features two slots for various mounting solutions and includes four M4×16mm screws, washers, and nuts for securing the motor to the bracket.

 Description Specs (1) Pictures (4) Resources (2) FAQs (0) On the blog (1)

This sturdy black bracket is made from 3mm-thick coated steel and weighs about 160 g (5.7 oz). It is specifically designed to work with the typical faceplate mounting holes of NEMA 23 stepper motors. Two supports are welded in the corner along the bend of the bracket to provide extra reinforcement, and the bracket features two long slots for mounting it to a surface. Four 16 mm M4 screws, four M4 nuts, and four washers are included for securing the motor to the bracket. This bracket and included hardware work with all of the NEMA 23 stepper motors we carry. Different screws might be required when using this bracket with stepper motors from other suppliers.

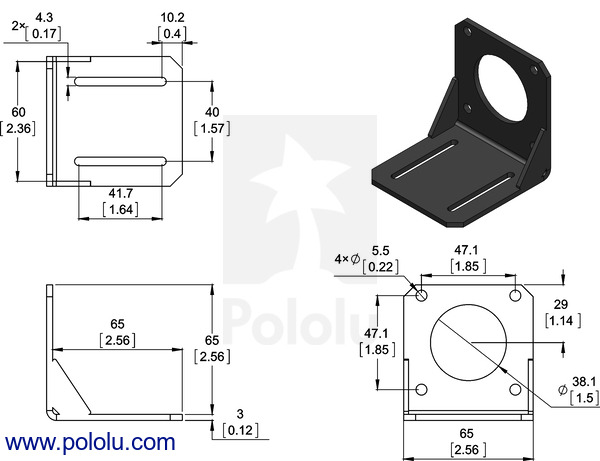

Dimension diagram of steel L-bracket for NEMA 23 stepper motors. Units are mm over [inches].

This drawing is also available as a downloadable PDF (102k pdf).

People often buy this product together with:

Pololu Universal Aluminum Mounting Hub for 1/4″ (6.35mm) Shaft, #4-40 Holes (2-Pack) Pololu Universal Aluminum Mounting Hub for 1/4″ (6.35mm) Shaft, #4-40 Holes (2-Pack)
Pololu Stamped Aluminum L-Bracket for NEMA 17 Stepper Motors Pololu Stamped Aluminum L-Bracket for NEMA 17 Stepper Motors
DRV8825 Stepper Motor Driver Carrier, High Current DRV8825 Stepper Motor Driver Carrier, High Current

Related Products

Stepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 57×41mm, 5.7V, 1 A/Phase
Stepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 57×76mm, 8.6V, 1 A/Phase
Stepper Motor: Unipolar/Bipolar, 200 Steps/Rev, 57×56mm, 7.4V, 1 A/Phase
Pololu Aluminum Scooter Wheel Adapter for 1/4″ Shaft
Pololu Universal Aluminum Mounting Hub for 1/4″ (6.35mm) Shaft, #4-40 Holes (2-Pack)
Pololu Universal Aluminum Mounting Hub for 1/4″ (6.35mm) Shaft, M3 Holes (2-Pack)
Pololu Stamped Aluminum L-Bracket for NEMA 17 Stepper Motors
Pololu Stamped Aluminum L-Bracket for NEMA 14 Stepper Motors

Related Categories

Motor Brackets
NEMA 23 Stepper Motors
Stepper Motors
Hardware
Nuts and Screws
