DC Power Adapter Barrel Jack

Pololu item #: 1139
Brand: Generic supply outlook
RoHS 3 compliant

Price break Unit price (US$)
1 0.85
10 0.75
100 0.65


backorders allowed

This is a standard PCB-mountable barrel-type jack for DC power adapters with 2.1 mm center holes.

 Description Specs (0) Pictures (1) Resources (0) FAQs (0) On the blog (0)

This is a standard PCB-mountable barrel jack for DC power adapters with 2.1 mm center holes. This jack is compatible with our wall-adapter power supplies:

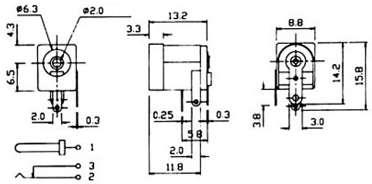

Dimensions (in mm) for the DC power adapter barrel jack.

The jack has three pins: pin 1 comes out of the back of the jack and is connected to the center pole, pin 2 comes out of the bottom of the jack and is connected to the side wall, and pin 3 comes out the side of the jack and is automatically switched based on whether there is anything plugged into the jack. With nothing plugged into the jack, pins 2 and 3 are shorted together; with an adapter plugged into the jack, pin 3 is disconnected. This feature makes it easy to create a system that is powered by a wall adapter when one is plugged into the jack and by a battery the remainder of the time.

For a DC jack that connects directly to a terminal block for easy connection of wires, see our DC barrel jack to 2-pin terminal block adapter.
