ACS37200LLXTR-100B5 Current Sensor Large Carrier -100A to +100A, 5V
This is the large version of a simple carrier for Allegro’s ACS37200LLXTR-100B5 Hall effect-based, electrically isolated current sensor that offers an extra-low-resistance (~0.05 mΩ) IC current path, a 150 kHz bandwidth with <4 µs response time, and an overcurrent fault output with a user-configurable threshold.
| Part Suffix | Range | Supply Voltage | Sensitivity | Zero Point | Size | PCB layers |
|---|---|---|---|---|---|---|
| 100B5 | ±100 A (bidirectional) | 4.5 V to 5.5 V | 20 mV/A | 2.5 V | 1.4″×1.2″ | 6 |
Alternatives available with variations in these parameter(s): current range size Select variant…
| Description | Specs (12) | Pictures (9) | Resources (5) | FAQs (0) | On the blog (0) | Distributors (0) |
|---|
|
ACS37200 Current Sensor Large Carrier, 5V. |
|---|
 |
ACS37200 Current Sensor Large Carrier, 5V. |
|---|
 |
Pinout of the ACS37200 Current Sensor Large Carrier. |
|---|
 |
ACS37200LLXTR-100B5 Current Sensor Compact Carrier -100A to +100A, 5V. |
|---|
 |

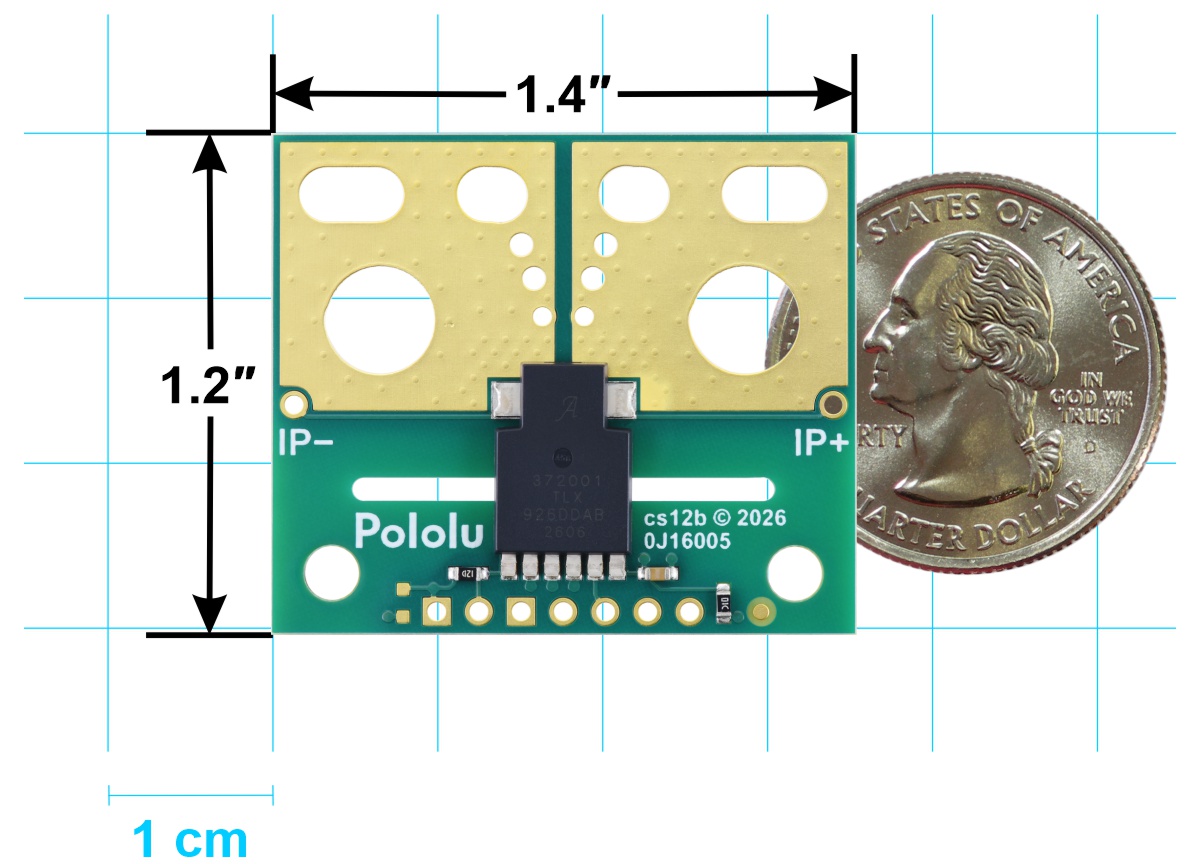

Basic board dimensions of the ACS37200 Current Sensor Large Carrier. |
|---|
 |
ACS37200 Current Sensor Compact Carrier (top) and Large Carrier (bottom) size comparison. |
|---|
 |
Basic hole spacing and dimensions of the ACS37200 Current Sensor Large Carrier. |
|---|
 |

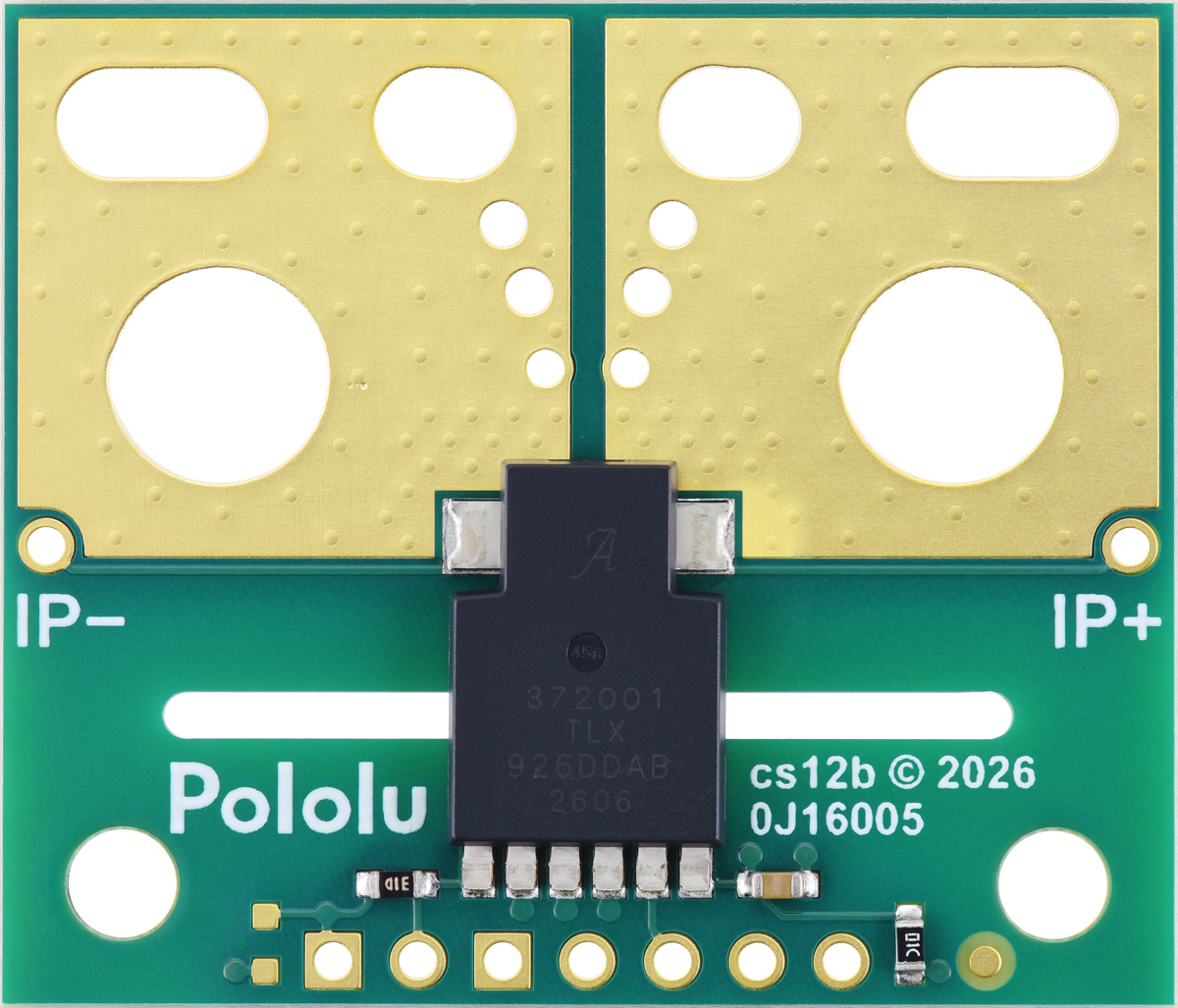

ACS37200 Current Sensor Large Carrier, 5V, top view. |
|---|
 |
Schematic diagram of the ACS37200 Current Sensor Compact Carrier. |
|---|
