Pololu Power ORing Ideal Diode Pair, 4-60V, 6A

Pololu item #: 5398
Brand: Pololu supply outlook
Status: Active and Preferred
RoHS 3 compliant


Price break Unit price (US$)
1 7.95
5 7.31
25 6.73
100 6.19


backorders allowed

This module consists of two ideal diode circuits with their outputs connected to form a power ORing arrangement, which can be used for load sharing or for redundant (backup) power supplies. Each input has an inline, bypassable 20 mΩ resistance that can be used as a crude power balancing circuit.

Operating voltage1 Max current Resistance2 Reverse current blocking Size
4 V – 60 V 6 A per channel < 10 mΩ yes (ideal diode) 0.75″×0.775″

Note 1: Operates down to 3.2 V after startup.
Note 2: MOSFET on resistance.

 Description Specs (8) Pictures (6) Resources (4) FAQs (0) On the blog (0) Distributors (0)

Pololu Power ORing Ideal Diode Pair, 4-60V, 6A.

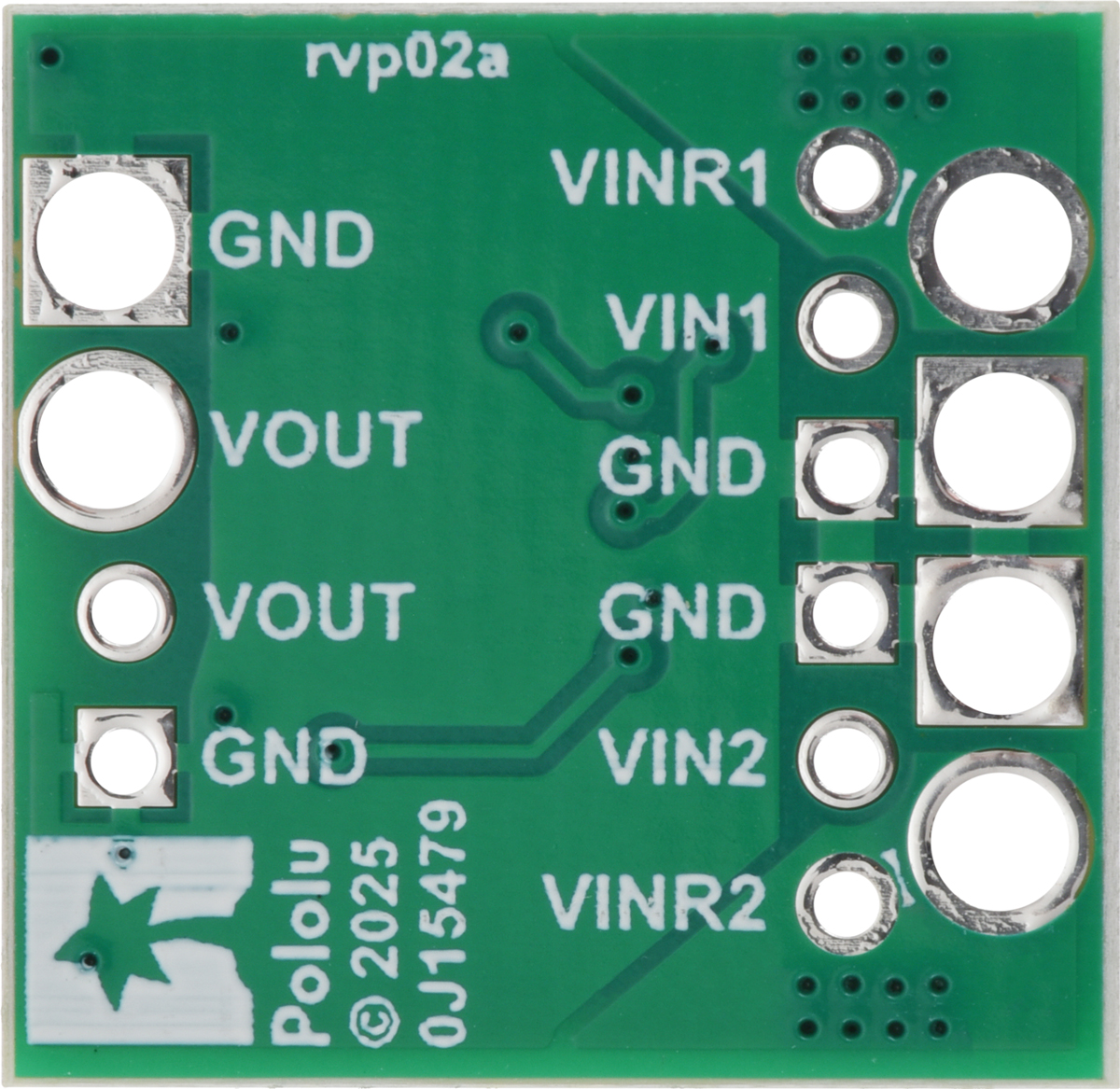

Pinout of the Pololu Power ORing Ideal Diode Pair, 4-60V, 6A.

Pololu Power ORing Ideal Diode Pair, 4-60V, 6A, bottom view with dimensions and US quarter for size reference.

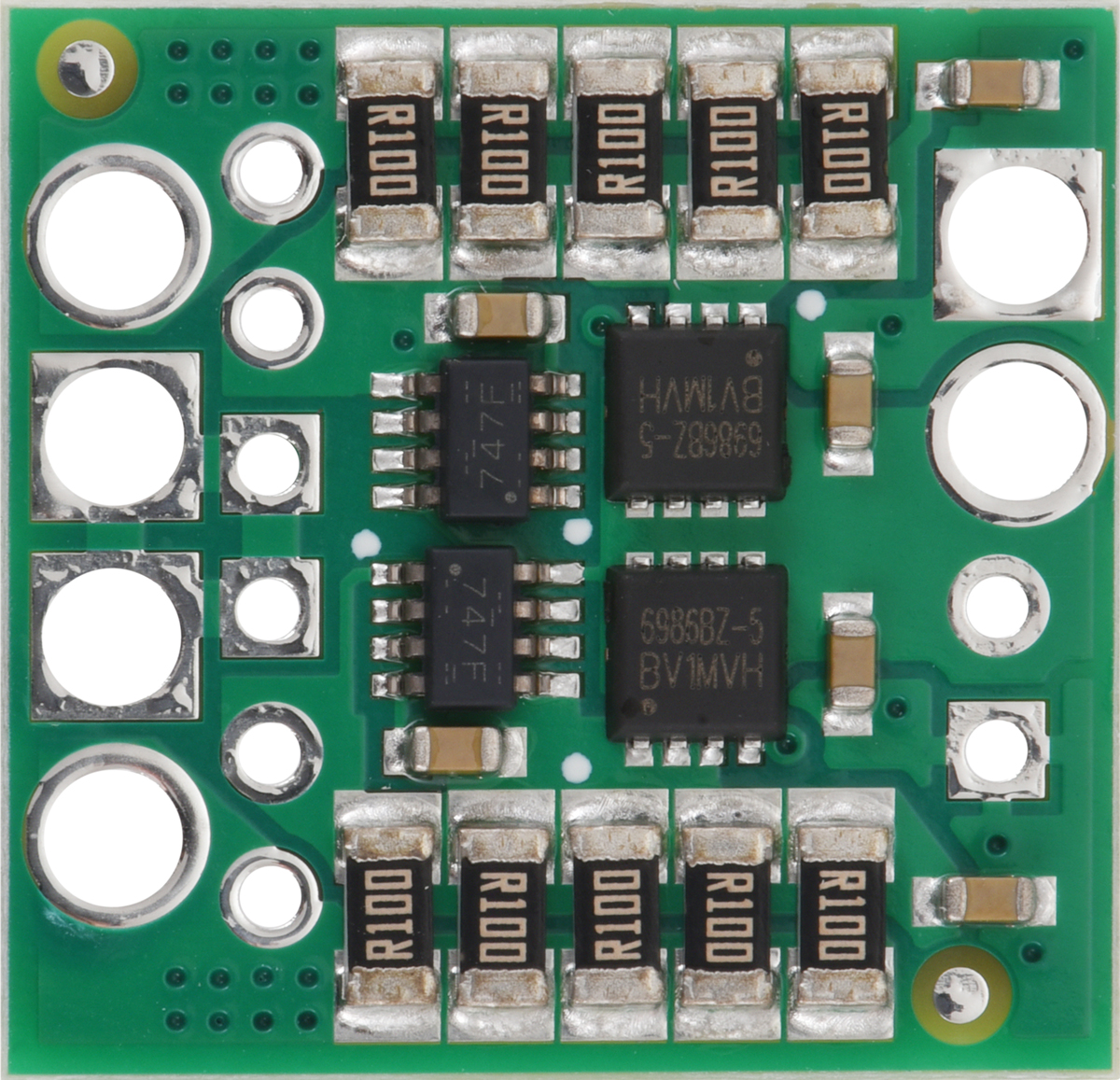

Pololu Power ORing Ideal Diode Pair, 4-60V, 6A, top view.

Pololu Power ORing Ideal Diode Pair, 4-60V, 6A, bottom view.

Schematic diagram of the Pololu Power ORing Ideal Diode Pair, 4-60V, 6A.
