Pololu Reverse Voltage Protector, 4-75V, 17A
This module protects a connected load from reverse voltages down to -75 V (80 V absolute max). This version does not block reverse current, making it suitable for applications such as battery-powered motor control where delivering energy back into the supply is desirable.
| Operating voltage1 | Max current | Resistance2 | Reverse current blocking | Size |
|---|---|---|---|---|
| 4 V – 75 V | 17 A | < 3 mΩ | no | 0.435″×0.7″ |
Note 1: Operates down to 3.2 V after startup.
Note 2: MOSFET on resistance.
Alternatives available with variations in these parameter(s): version reverse current blocking Select variant…
Compare all products in Reverse Voltage Protection and Ideal Diodes.
| Description | Specs (9) | Pictures (12) | Resources (4) | FAQs (0) | On the blog (0) | Distributors (0) |
|---|
|
Pololu Reverse Voltage Protector, 4-75V, 17A. |
|---|
 |
Pololu Reverse Voltage Protector, 4-75V, 17A, top view. |
|---|
 |
Pololu Reverse Voltage Protector, 4-75V, 17A, bottom view. |
|---|
 |

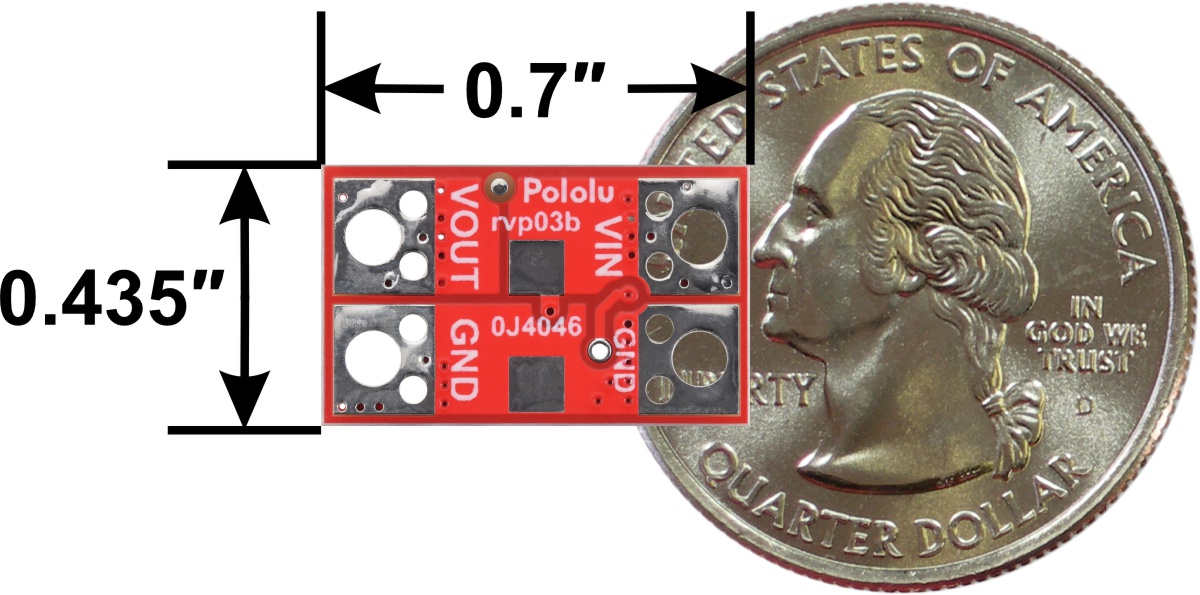

Pololu Reverse Voltage Protector, 4-75V, 17A. bottom view with dimensions and a US quarter for size reference. |
|---|
 |
Pinout of the Pololu Reverse Voltage Protector, 4-75V, 17A. |
|---|
 |
Pololu 20A/25A Reverse Voltage Protector with a pair of two-pin, 5mm-pitch screw terminal blocks (not included). |
|---|
 |
Pololu 20A/25A Reverse Voltage Protector with a pair of two-pin, 5mm-pitch screw terminal blocks (not included). |
|---|
 |
Pololu 20A/25A Reverse Voltage Protector soldered with 14 AWG wires. |
|---|
 |
There are pads for adding an optional SMB-size transient voltage suppressor (TVS) across VIN and GND on the bottom of the Pololu Reverse Voltage Protector, 4-75V, 17A. |
|---|
 |
75V-max Pololu Reverse Voltage Protectors are available in 17A (left) and 8A (right) versions. |
|---|
 |
Size comparison of the Pololu Reverse Voltage Protectors: 75V, 17A (larger red PCB); 60V, 20A/25A (larger green PCB); 75V, 8A (smaller red PCB); and 60V, 10A/12A (smaller green PCB). |
|---|
 |
Schematic diagram of the 75V Pololu Reverse Voltage Protectors (red PCBs). |
|---|
