CT220BMV-HS5 Contactless Current Sensor Carrier ±1.5mT/15G
This board is a simple carrier of Allegro’s CT220BMV-HS5 TMR-based, contactless current sensor, which measures the magnetic field of the current flowing through a nearby conductor without needing to be connected in series with the circuit. With calibration, its analog voltage output can be converted into an accurate current measurement.
| IC Part Number | Range | Supply Voltage | Sensitivity @ 5V | Zero Point @ 5V | Size |
|---|---|---|---|---|---|
| CT220BMV-HS5 | ±1.5 mT (bidirectional) | 2.7 V to 5.5 V | 1500 mV/mT | 2.5 V | 0.4″×0.62″ |
Alternatives available with variations in these parameter(s): magnetic field range Select variant…
Compare all products in CT220 Contactless Current Sensor Carriers.
| Description | Specs (10) | Pictures (9) | Resources (5) | FAQs (0) | On the blog (0) | Distributors (0) |
|---|
|
CT220BMV-HS5 Contactless Current Sensor Carrier ±1.5mT/15G. |
|---|
 |
CT220BMV-HS5 Contactless Current Sensor Carrier ±1.5mT/15G. |
|---|
 |
CT220 Contactless Current Sensor Carrier, bottom view with dimensions. |
|---|
 |
Direction of magnetic field and current measured by a CT220 Contactless Current Sensor Carrier. |
|---|
 |
CT220 Contactless Current Sensor Carrier attached to a wire with zip ties and connected with a 4-pin JST SH-style cable. |
|---|
 |
Pinout of the CT220 Contactless Current Sensor Carrier. |
|---|
 |
Schematic diagram of the CT220 Contactless Current Sensor Carrier. |
|---|
 |

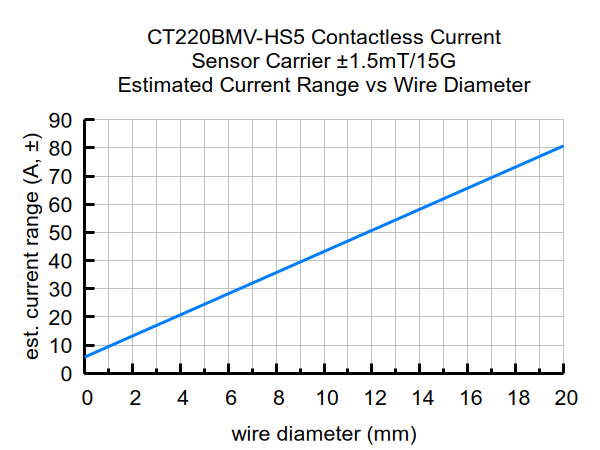

CT220BMV-HS5 Contactless Current Sensor Carrier ±1.5mT/15G estimated current range vs wire diameter. |
|---|
 |

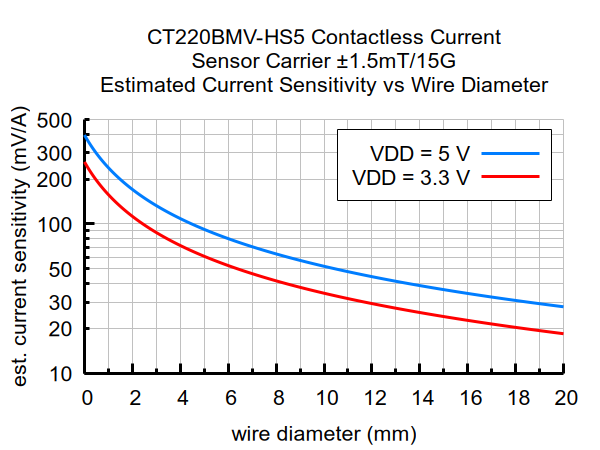

CT220BMV-HS5 Contactless Current Sensor Carrier ±1.5mT/15G estimated current sensitivity vs wire diameter. |
|---|
