TB67S579FTG Stepper Motor Driver Compact Carrier
This breakout board for Toshiba’s TB67S579FTG microstepping bipolar stepper motor driver is arranged in the popular 16-pin Pololu form factor. It features adjustable current limiting and seven microstep resolutions (down to 1/32-step). Additionally, it dynamically selects an optimal decay mode by monitoring the actual motor current, and it can automatically reduce the driving current below the full amount when the motor is lightly loaded to minimize power and heat. The TB67S579FTG has a wide operating voltage range of 4.5 V to 34 V, and our carrier board can deliver approximately 1.1 A per phase continuously without a heat sink or forced air flow (up to 2 A peak). It features built-in protection against over-current and over-temperature conditions.
Alternatives available with variations in these parameter(s): header pins soldered? Select variant…
Compare all products in TB67S579FTG Stepper Motor Driver Carriers or 16-pin Stepper Motor Drivers.
| Description | Specs (15) | Pictures (12) | Resources (7) | FAQs (4) | On the blog (0) | Distributors (0) |
|---|
|

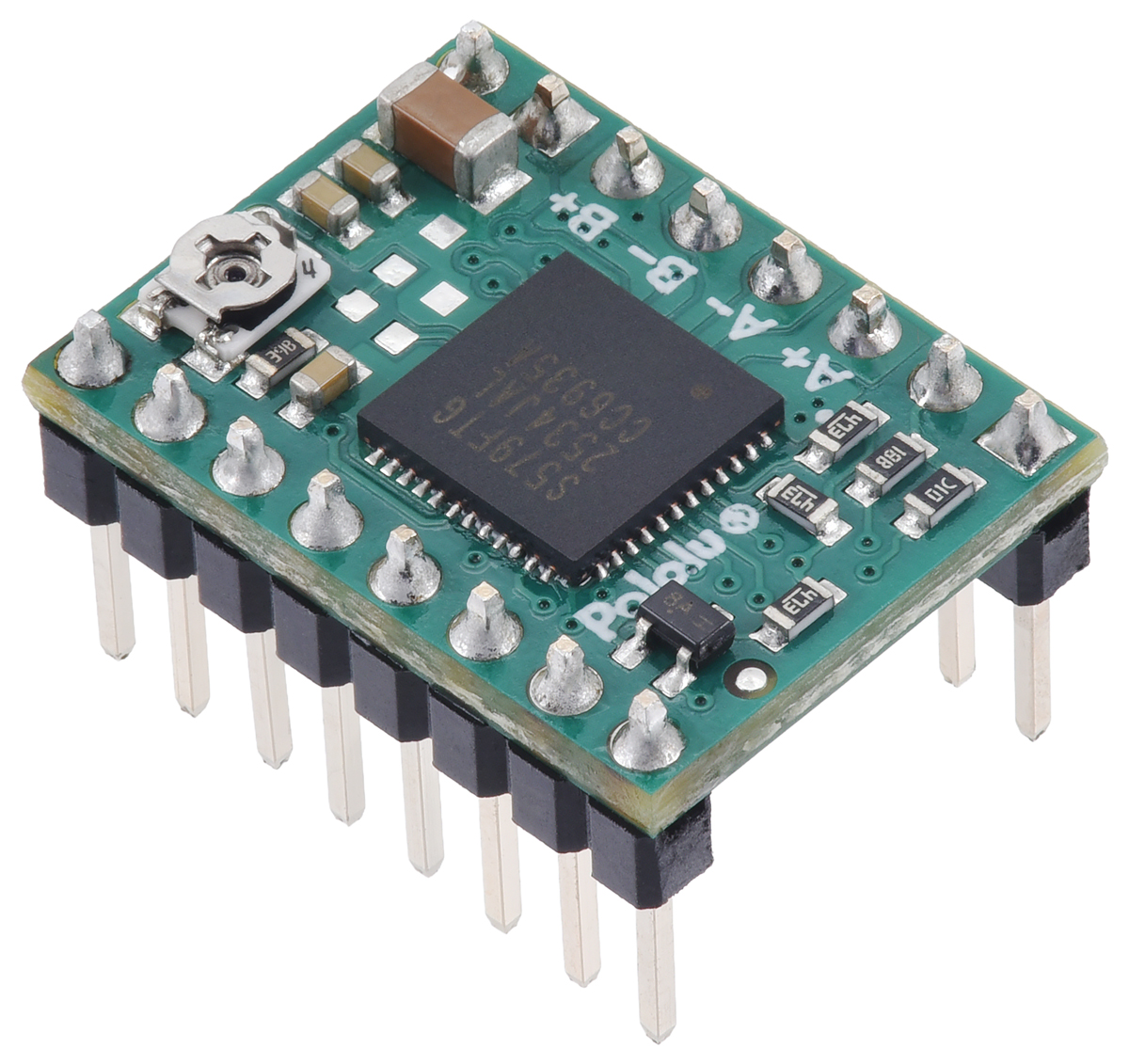

TB67S579FTG Stepper Motor Driver Compact Carrier. |
|---|
 |
TB67S579FTG Stepper Motor Driver Compact Carrier, bottom view. |
|---|
 |
Minimal wiring diagram for connecting a microcontroller to a TB67S579FTG Stepper Motor Driver Compact Carrier (full-step mode). |
|---|
 |
TB67S579FTG Stepper Motor Driver Compact Carrier, bottom view with dimensions and a US quarter for size reference. |
|---|
 |
TB67S579FTG Stepper Motor Driver Compact Carrier with 0.1″ male headers soldered (headers not included). |
|---|
 |
Optional configuration jumpers on the TB67S579FTG Stepper Motor Driver Compact Carrier. |
|---|
 |
TB67S579FTG Stepper Motor Driver Compact Carrier, top view. |
|---|
 |
TB67S579FTG Stepper Motor Driver Compact Carrier, bottom view. |
|---|
 |
Schematic diagram of the TB67S579FTG Stepper Motor Driver Compact Carrier. |
|---|
 |
Schematic of nSLP and nFLT pins on the TB67S579FTG Stepper Motor Driver Compact Carrier. |
|---|
 |
Alternative minimal wiring diagram for connecting a microcontroller to a TB67S579FTG Stepper Motor Driver Compact Carrier (full-step mode). |
|---|
 |
Thermal image showing the TB67S579FTG Stepper Motor Driver Compact Carrier heating up during operation. |
|---|
