Encoders for 20D mm Metal Gearmotors

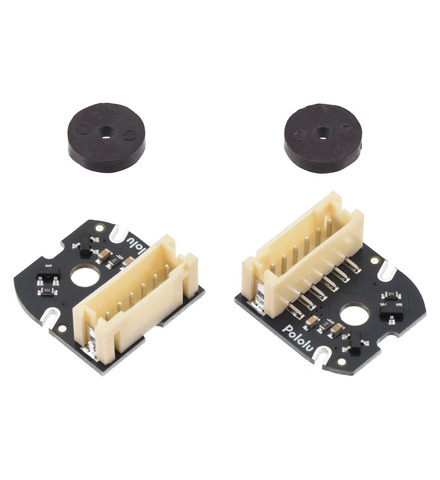

Add quadrature encoders to your 20D mm metal gearmotors (extended back shaft version required) with this kit that uses a magnetic disc and Hall effect sensors to provide 20 counts per revolution of the motor shaft. The sensors operate from 2.7 V to 18 V and provide digital outputs that can be connected directly to a microcontroller or other digital circuit. These encoders have a top-entry, 6-pin male JST PH-type connector, and we have compatible cables available in a variety of lengths.

This kit includes two encoder boards and two magnetic discs.

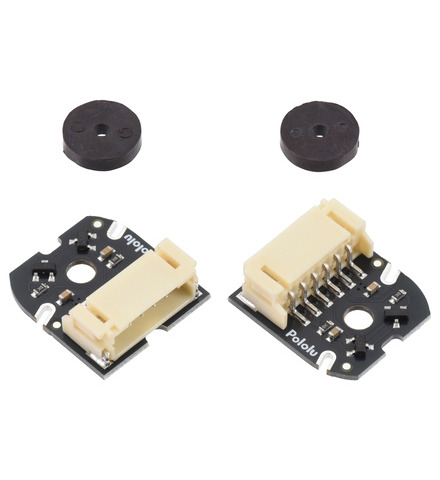

Add quadrature encoders to your 20D mm metal gearmotors (extended back shaft version required) with this kit that uses a magnetic disc and Hall effect sensors to provide 20 counts per revolution of the motor shaft. The sensors operate from 2.7 V to 18 V and provide digital outputs that can be connected directly to a microcontroller or other digital circuit. These encoders have a side-entry, 6-pin male JST PH-type connector, and we have compatible cables available in a variety of lengths.

This kit includes two encoder boards and two magnetic discs.

Add quadrature encoders to your 20D mm metal gearmotors (extended back shaft version required) with this kit that uses a magnetic disc and Hall effect sensors to provide 20 counts per revolution of the motor shaft. The sensors operate from 2.7 V to 18 V and provide digital outputs that can be connected directly to a microcontroller or other digital circuit. This module is compatible with all of the dual-shaft 20D mm metal gearmotors we carry.

This kit includes two encoder boards and two magnetic discs.

These magnetic discs can be used with our 20D mm metal gearmotors (extended motor shaft versions only) as part of a quadrature encoder system that offers 20 counts per revolution. They are 2 mm thick with an outer diameter of 9.7 mm and an inner diameter of 2.0 mm. Appropriate Hall Effect sensors, such as those in our magnetic encoder pair kit for 20D mm gearmotors, are required to complete the system. These discs are bulk-packaged and must be ordered in multiples of five.

These magnetic discs can be used with our 20D mm metal gearmotors (extended motor shaft versions only) as part of a quadrature encoder system that offers 12 counts per revolution. They are 2 mm thick with an outer diameter of 9.7 mm and an inner diameter of 2.0 mm. Appropriate Hall Effect sensors, such as those in our magnetic encoder pair kit for 20D mm gearmotors, are required to complete the system. These discs are bulk-packaged and must be ordered in multiples of five.
