Pololu 15.5D mm Metal Gearmotor Bracket Pair

Pololu 15.5D mm Metal Gearmotor Bracket Pair
Pololu item #: 1599 373 in stock

Price break Unit price (US$)
1 4.95
10 4.25


backorders allowed

These aluminum gearmotor brackets let you securely mount Pololu’s 35:1 and 115:1 15.5D mm metal gearmotors to your project. The brackets are sold in pairs, and each bracket includes two M2 screws for securing the motor to the bracket. Each bracket also features four mounting holes and six mounting slots for M2 or #2-size screws (not included), giving you a variety of mounting options.

 Description Specs (1) Pictures (3) Resources (2) FAQs (0) On the blog (0)

Pololu 15.5D mm metal gearmotor bracket with a 15.5D mm metal gearmotor.
Pololu 15.5D mm metal gearmotor bracket with a micro metal gearmotor (pictured with M1.6 screws, which are not included).

These light-weight brackets (about 2 g each) are specifically designed for the Pololu 35:1 and 115:1 15.5D mm metal gearmotors, as well as our 35:1 mini metal gearmotor. Each bracket features four mounting holes and six mounting slots (three along each edge) for M2 or #2-size screws, giving you a variety of mounting options. A total of four M2 screws (two for each bracket) are included for securing the motors to the brackets.

These brackets can also be used to mount our micro metal gearmotors, as shown in the adjacent picture, although this requires a pair of M1.6 screws for each bracket (not included).

Our 3mm mounting hub works nicely with this bracket.

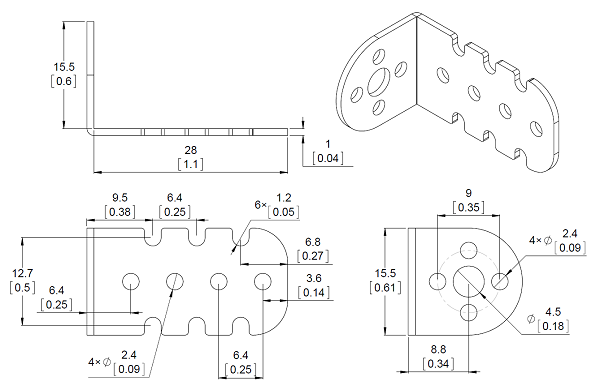

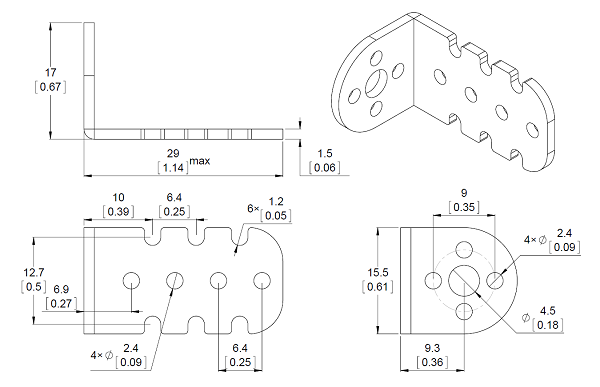

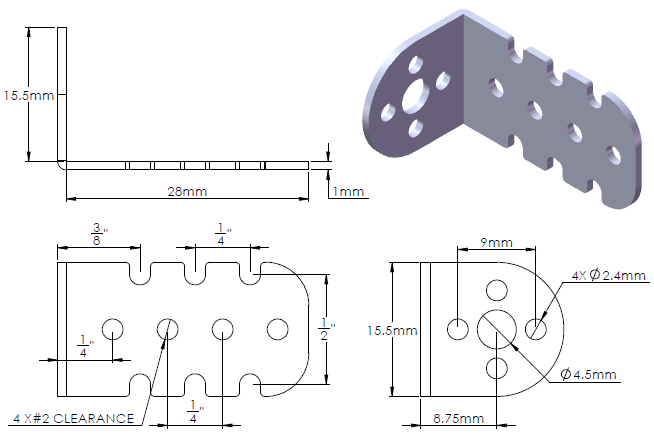

Mechanical drawing for the Pololu 15.5D mm metal gearmotor bracket. Units are mm over [inches].

This drawing is also available as a downloadable PDF (76k pdf).

Note: As of February 27, 2014, the thickness of these brackets has increased from 1 mm to 1.5 mm.
