Pololu Mini Metal Gearmotor Bracket Pair

Pololu item #: 1080
Brand: Pololu

This product has been discontinued.

These aluminum gearmotor brackets let you securely mount Pololu 24:1 and 100:1 mini metal gearmotors to your project. The brackets are sold in pairs, and each bracket includes two M2 screws for securing the motor to the bracket. Each bracket also features two mounting holes and six mounting slots for #2-size screws (not included), giving you a variety of mounting options.

 Description Specs (2) Pictures (3) Resources (1) FAQs (0) On the blog (0)

Note: This bracket is designed specifically for the Pololu 24:1 and 100:1 mini metal gearmotors, which have been discontinued and replaced by newer versions with slightly different gearboxes: 35:1 and 115:1 metal gearmotor 15.5Dx30L mm. This bracket will not work with these newer 15.5D mm metal gearmotors.

Mini gearmotor with bracket and hub.

These light-weight brackets (under 2 g each) are specifically designed for the Pololu 24:1 and 100:1 mini metal gearmotors. Each bracket features two mounting holes and six mounting slots for #2-size screws, giving you a variety of mounting options. A total of four M2 screws (two for each bracket) are included for securing the motor to the bracket.

The hub pictured to the right works nicely with this bracket.

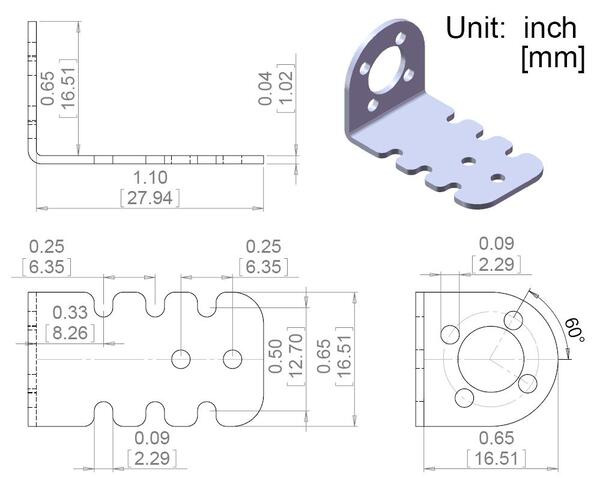

Mechanical drawing for the Pololu mini metal gearmotor bracket.
