0.100" (2.54 mm) Female Header: 1x12-Pin, Straight

Pololu item #: 1030
Brand: Generic
RoHS 3 compliant

Price break Unit price (US$)
1 1.09
5 1.00
25 0.92
100 0.85


backorders allowed

This connector is a single-row, 12-pin, straight female header strip designed to match 0.1" male headers.

Alternatives available with variations in these parameter(s): pins Select variant…

 Description Specs (5) Pictures (4) Resources (0) FAQs (0) On the blog (0)

Overview

These 0.1" straight female header strips are commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs. The standard spacing is the same as on most solderless breadboards and matches 0.1" male header strips. Our female headers are available in a variety of commonly used pin counts:

Alternatives available with variations in these parameter(s): pins Select variant…

We also carry right-angle versions of some of these headers:

Alternatives available with variations in these parameter(s): pins Select variant…

Dimensions

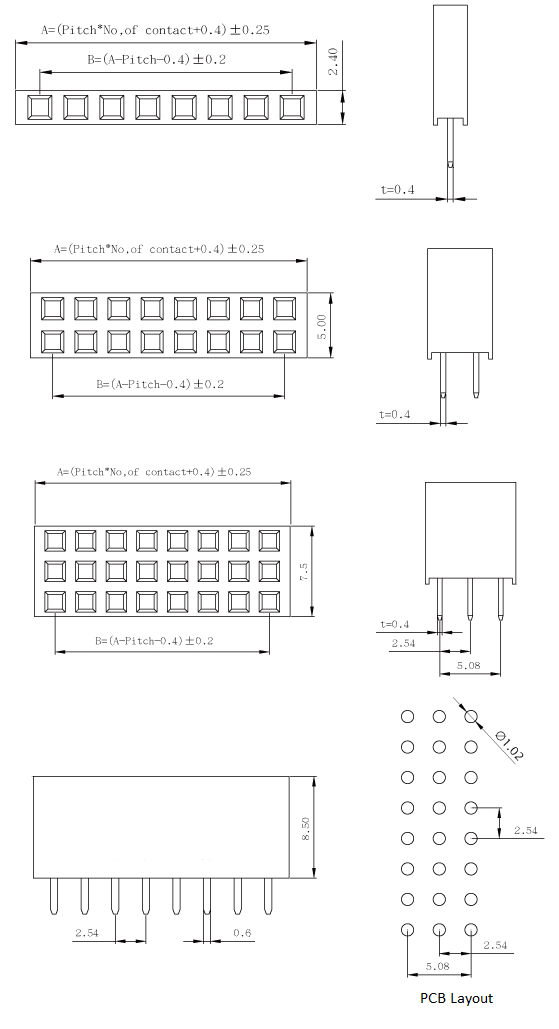

Dimensions for 0.1 ″ female headers in millimeters.
