Pololu Distance Sensor with Pulse Width Output, 50cm Max

This is a merged information page for Item #4064.
View normal product page.

Pololu item #: 4064
Brand: Pololu
Status: Active

This small lidar-based distance sensor reports the distance of objects up to about 50 cm (20″) away with a pulsed signal similar to a hobby servo control signal. A digital microcontroller pin can be used to time the length of each high pulse, which encodes the measured distance. The sensor works over an input voltage range of 3.0 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Note: A newer version of this sensor is now available.

Alternatives available with variations in these parameter(s): maximum range connector Select variant…

Compare all products in Pololu Digital Distance Sensors.

Pictures

Pololu Distance Sensor with Pulse Width Output, 50cm Max.

Pololu Distance Sensor with Pulse Width Output, 50cm Max.

Pololu Distance Sensor with Pulse Width Output, 50cm Max, bottom view.

Pololu Distance Sensor with Pulse Width Output, 50cm Max, bottom view.

Pololu Distance Sensor with Pulse Width Output, 50cm Max, bottom view with dimensions.

Original (irs16a) version of the Pololu Distance Sensor with Pulse Width Output, 50cm Max, top view with labeled pinout.

Signal diagram of the Pololu Distance Sensor with Pulse Width Output.

Graph of measured vs. actual distances for five Pololu Distance Sensors with Pulse Width Output, 50cm Max.

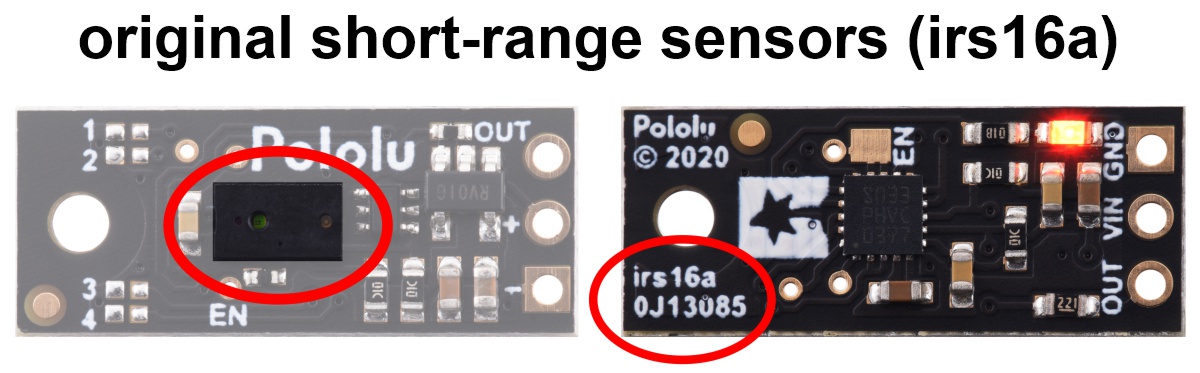

Original (irs16a) short-range Pololu Digital Distance Sensors.

Comparison of the different Pololu Digital Distance Sensor versions.

A camera with no IR filter shows the infrared light emitted by a Pololu Digital Distance Sensor (this light is eye-safe and not visible to the naked eye).

Standard packaging for the Pololu Distance Sensor with Pulse Width Output, 50cm Max.

Comparison of a Pololu Carrier with Sharp GP2Y0D8x Digital Distance Sensor and a Pololu Digital Distance Sensor.

Comparison of a Pololu Carrier with Sharp GP2Y0D8x Digital Distance Sensor and a Pololu Digital Distance Sensor.

Comparison of a Pololu Carrier with Sharp GP2Y0D8x Digital Distance Sensor and a Pololu Digital Distance Sensor.

Overview

Pololu Distance Sensor with Pulse Width Output, 50cm Max.

This compact sensor makes it possible to measure the distance of objects up to about 50 cm (20″) away using a simple digital pulse width interface (similar to a hobby servo control signal). It uses a short-range lidar module to precisely measure how long it takes for emitted pulses of infrared, eye-safe laser light to reach the nearest object and be reflected back, allowing for 3 mm resolution. As long as the sensor is enabled, it takes continuous distance measurements and encodes the ranges as the widths of high pulses, which can then be timed by a microcontroller using a single digital input.

A camera with no IR filter shows the infrared light emitted by a Pololu Digital Distance Sensor (this light is eye-safe and not visible to the naked eye).

The relationship between measured distance d (in mm) and pulse width t (in µs) is as follows:

     ``d = (3 text( mm)) / (4 text( µs)) * (t  – 1000 text( µs))``

     ``t = 1000 text( µs) + (4 text( µs)) / (3 text( mm)) * d ``

The timing uncertainty is approximately ±5%. As objects approach the sensor, the output pulse width will approach 1.0 ms, while an object detected at 50 cm will produce a 1.667 ms pulse width. The sensor uses a pulse width of 2.0 ms to indicate no detection. The pulse period T ranges from around 9 ms to 20 ms, depending on the proximity of the detected object.

The maximum detection range depends on object reflectivity and ambient lighting conditions. In our tests, the sensor was able to reliably detect a white sheet of paper out to around 50 cm away, and it could reliably detect a hand out to around 30 cm away. The following graph shows the measured distances of five units versus their actual distances from a white paper target at several different ranges:

Please note that while this sensor can detect objects to within about 5 mm of the sensor face, the effective minimum distance it can measure is around 1 cm, so objects closer than 1 cm might result in an inaccurate measurement.

This sensor has 0.1″-pitch through holes that are compatible with 0.1″ headers. A similar alternative is available with a side-entry connector that works with our 3-pin JST SH-style cables.

Specifications

• Operating voltage: 3.0 V to 5.5 V
• Current consumption: 30 mA (typical) when enabled, 0.4 mA when disabled
• Maximum range: approximately 50 cm (20″) (for high-reflectivity targets in good ambient conditions; lower-reflectivity targets or poor ambient conditions will reduce the maximum detection range)
• Minimum range: 1 cm (for accurate measurement); < 5 mm (for detection)
• Resolution: 3 mm
• Update rate: 50 Hz to 110 Hz (20 ms to 9 ms period)
• Field of view (FOV): 15° typical; can vary with object reflectance and ambient conditions
• Emitter: eye-safe, 940 nm invisible Class 1 VCSEL (vertical cavity surface-emitting laser)
• Output type: digital pulse width
• Dimensions: 0.85″ × 0.35″ × 0.122″ (21.6 × 8.9 × 3.1 mm); see the dimension diagram (191k pdf) for more information
• Weight: 0.015 oz (0.4 g)

Using the sensor

Three connections are necessary to use this module: VIN, GND, and OUT. These pins are accessible through a row of 0.1″-pitch through holes, which work with standard 0.1″ (2.54 mm) male headers and 0.1″ female headers (available separately). The VIN pin should be connected to a 3 V to 5.5 V source, and GND should be connected to 0 volts. The sensor outputs its digital pulses on the OUT pin. The low level of the pulses is 0 V, and the high level is VIN. A red LED on the back side of the board also lights whenever an object is detected (the closer the object, the brighter the LED).

Pololu Distance Sensor with Pulse Width Output, 50cm Max.

The board has an optional ENABLE pin that can be driven low to put it into a low-power state that consumes approximately 0.4 mA. This pin can be accessed through a via or its neighboring surface-mount pad on the back side labeled “EN” on the silkscreen. The ENABLE pin is pulled up to VIN, enabling the sensor by default.

The board has one mounting hole intended for use with #2 or M2 screws.

Arduino program for reading pulse width output

This is a simple Arduino sketch that reads the output of the Pololu Distance Sensor with Pulse Width Output, 50cm Max and displays the measured distance in millimeters.

// Example Arduino program for reading the Pololu Distance Sensor with Pulse Width Output, 50cm Max

// Change this to match the Arduino pin connected to the sensor's OUT pin.
const uint8_t sensorPin = 2;

void setup()
{
  Serial.begin(115200);
}

void loop()
{
  int16_t t = pulseIn(sensorPin, HIGH);

  if (t == 0)
  {
    // pulseIn() did not detect the start of a pulse within 1 second.
    Serial.println("timeout");
  }
  else if (t > 1850)
  {
    // No detection.
    Serial.println(-1);
  }
  else
  {
    // Valid pulse width reading. Convert pulse width in microseconds to distance in millimeters.
    int16_t d = (t - 1000) * 3 / 4;

    // Limit minimum distance to 0.
    if (d < 0) { d = 0; }

    Serial.print(d);
    Serial.println(" mm");
  }
}

micro:bit MakeCode program for reading pulse width output

We have also created a MakeCode example program for the BBC micro:bit single-board computer that demonstrates how to read and convert the output of the Pololu Distance Sensor with Pulse Width Output, 50cm Max. The program’s output can be viewed in the MakeCode device console, which also plots the readings on a graph. You can open the program in the micro:bit MakeCode editor by clicking this link or the picture below.

Jumper settings for original (irs16a) short-range versions

This board features four surface-mount configuration jumpers that determine its operation mode. Different versions of the Pololu Digital Distance Sensors ship with the appropriate jumpers pre-populated with 0 Ω resistors. These resistors can be desoldered from the populated spots or solder bridges can be added across the unpopulated spots to convert one sensor version into another. This sensor can be converted into any other original (irs16a) short-range version as listed in the following table. (For more information about how the different output types work, see the product pages for representative versions.)

Item numbers in this table indicate versions that we offer for sale as standard products, but we can manufacture the other versions on demand (or even make sensors with custom firmware for you). If you are interested in customization, please contact us.

The Pololu Digital Distance Sensor family

We have several versions of Pololu Digital Distance Sensors with different ranges, operating modes, and connector options:

The Pololu Digital Distance Sensor family includes several different sensor types. The jumper options are different for the different sensor types, so it is important to be able to identify which type you have if you want to change the jumper settings. The following diagram shows some key visual differences among the different sensor types:

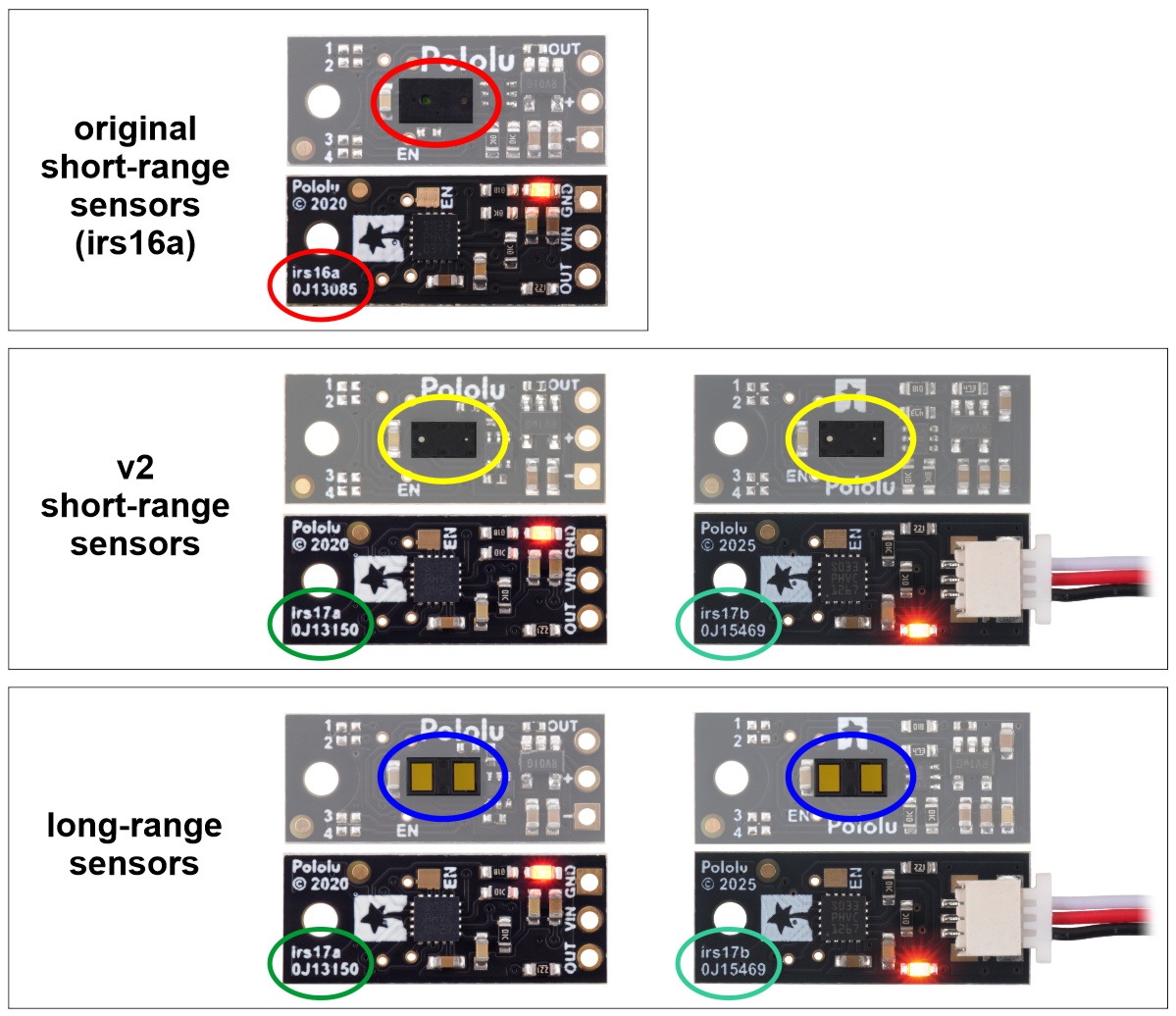

Comparison of the different Pololu Digital Distance Sensor versions.

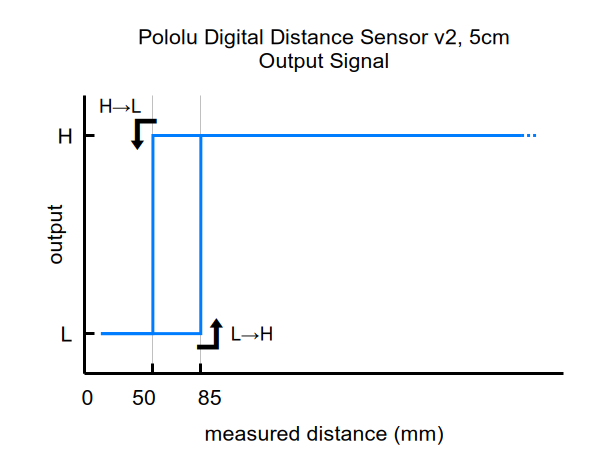

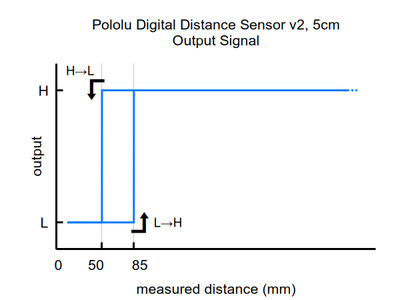

Within each sensor type, there are digital output versions that just report if an object is within their detection range and pulse width output versions that report the measured distance by encoding it as the width of a repeating digital pulse, similar to hobby servo control signals. The graphs below show some examples of the different possible output signals from the different Pololu Digital Distance Sensor versions.

Comparison to Sharp/Socle Digital Distance Sensors

These Pololu Digital Distance Sensors have the same general form factor and pinout as our carrier boards for the Sharp/Socle GP2Y0D8x digital distance sensors (the versions with through-holes have the same length and width while the versions with JST SH-style connectors are 0.05″ longer). They are available in the same 5 cm, 10 cm, and 15 cm ranges as the Sharp/Socle sensors, in addition to longer ranges of up to several meters. This means they can be used as replacements for these older modules, which are based on sensors that are no longer in production, and the longer-range versions can serve as upgrades that provide enhanced detection and measurement capabilities. The sensors on these newer units are much thinner than the Sharp modules, so the zero-range point is approximately 7 mm closer to the PCB, and the beam angle of the newer units is wider. The pictures below show side-by-side comparisons of the two:

Firmware version history

The Pololu Digital Distance Sensors use a small integrated microcontroller to operate the distance sensor, drive the OUT pin, and control the on-board LED. The different sensor types have different firmware versions:

• Version 2: This is the initial-release version of the irs16a firmware (original short-range versions).
• Version 3: This is the initial-release version of long-range sensor firmware; it is not used on the irs16a boards.
• Version 4: This update for the irs16a boards fixes a bug in the version 2 firmware that could cause some original short-range units to erroneously have a 25 cm offset in their readings (i.e. to incorrectly measure distances as approximately 25 cm farther than reality). Only a small percentage of boards with version 2 firmware were susceptible, and the problem only occurred when those susceptible units were operating in modes with a maximum sensing range of 20 cm or more. All irs16a units shipped from Pololu on or after January 30th, 2024 have firmware version 4. This firmware is only used on the irs16a boards.
• Version 6: This is the initial-release version of the v2 short-range sensor firmware; it is not used on the irs16a or long-range sensor versions.

If you have an affected irs16a unit with firmware version 2 and you would like a replacement, please contact us.

Determining the firmware version

When you apply power to the board or make it reset by any other means, the microcontroller transmits a signal with the firmware version on the via marked in the picture below.

The via that outputs firmware version information at startup on a Pololu Digital Distance Sensor.

To see the signal, you can probe the via with an oscilloscope. Configure it to trigger on a rising edge with a threshold around 1 V to 2 V and to capture data for at least 1 ms after the trigger. Then apply power to the distance sensor.

Each bit in the signal is transmitted as a high pulse. A 1 µs pulse indicates a 0, while a 3 µs pulse indicates a 1. The first two bits are 1 and 0, and they are followed by an 8-bit firmware version number, most significant bit first. The signal from a board running firmware version 4 looks like this:

Version signal from a Pololu Digital Distance Sensor running firmware version 4 (100 in binary).
