Glideforce MD122004-P Medium-Duty Linear Actuator with Feedback: 100kgf, 4" Stroke (3.9" Usable), 0.58"/s, 12V

This is a merged information page for Item #3612.
View normal product page.

Pololu item #: 3612
Brand: Concentric
RoHS 3 compliant


This 12 V medium-duty (MD) linear actuator can lift loads up to 100 kgf [225 lbs or 1000 N] and can withstand static loads up to 450 kgf [1000 lbs or 4500 N]. It has a maximum speed of 14.7 mm/s [0.58″/s] at no load and 10.4 mm/s [0.41″/s] at the maximum load. Limit switches at each end make the actuator easy to control over its full range of motion. The shaft holds its position when unpowered. This version has a 4-inch stroke (3.9″ usable) and a feedback potentiometer that lets you determine where the actuator is in its stroke.

Alternatives available with variations in these parameter(s): nominal stroke length feedback potentiometer included? Select variant…

Pictures

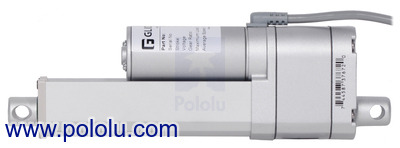

Glideforce Medium-Duty (MD) series of linear actuators.

Glideforce Medium-Duty (MD) series of linear actuators with feedback.

Connectors that terminate the cable ends of Glideforce Medium-Duty (MD) linear actuators with feedback.

Dimensions of Glideforce MD linear actuators with feedback. Units are mm.

Glideforce Medium-Duty (MD) series of linear actuators without feedback.

Unterminated wire ends for Glideforce Medium-Duty (MD) linear actuators without feedback.

Dimensions of Glideforce MD linear actuators without feedback. Units are mm.

Glideforce MD122004 medium-duty linear actuator (4″ stroke) with shaft fully extended.

Connecting a medium-duty linear actuator with feedback to a Jrk 24v13 motor controller.




Overview

The Medium-Duty (MD) series of Glideforce linear actuators by Concentric International (formerly Iowa Export-Import) are 12V DC gearmotors that use a lead screw to move a shaft back and forth along its length. All of the actuators in this category have a 20:1 gearbox reduction with all metal gears, which allows them to move loads up to 100 kgf [225 lbs or 1000 N] and gives them a maximum speed of between 1.0 and 1.5 cm/s [0.4 and 0.6 in/s], depending on the load. The shaft will hold its position even when unpowered and subjected to static loads up to 450 kgf [1000 lbs or 4500 N]. Two limit switches safely stop the motor at either end of its range, while integrated diodes allow it to reverse direction after reaching a limit point if the supplied voltage is reversed. The actuators have an all-aluminum frame and extension tube, and the entire case is sealed to protect against dust and water (rated IP65).

These actuators are available in a variety of stroke lengths, from 4″ to 12″, and with optional potentiometers that are linked to the shaft position, for use in feedback systems:

Actuator
Type
Max
Dynamic
Load
No-Load
Speed
@ 12 V
Max-Load
Speed
@ 12 V
Current
Draw
@ 12 V
Nominal
Stroke
Length
With
Feedback
Without
Feedback
Medium-Duty
(MD)
100 kgf
[225 lbs]
1.5 cm/s
[0.58″/s]
1.0 cm/s
[0.41″/s]
1.1 A –
4.6 A
4″ MD122004-P MD122004
6″ MD122006-P MD122006
8″ MD122008-P MD122008
10″ MD122010-P MD122010
12″ MD122012-P MD122012

Mounting brackets made from machined aluminum or stamped steel are available for attaching the actuators to a structure; two are required for each actuator.

Details for item #3612

Glideforce MD122004-P Medium-Duty Linear Actuator with Feedback: 100kgf, 4" Stroke, 0.58"/s, 12V.

MD series features and specifications

The following specifications apply to all Glideforce MD series linear actuators with the standard 20:1 gear ratio:

For more details, see the MD series datasheet (1MB pdf).

Dimensions

Diagrams of the linear actuators are shown below. The versions that include potentiometers have a larger gearbox, so their overall size and weight is larger. For more detailed information, including the retracted and extended lengths of each version, see the datasheet.

Dimensions of Glideforce MD linear actuators with feedback. Units are mm.

Dimensions of Glideforce MD linear actuators without feedback. Units are mm.

Glideforce MD122004 medium-duty linear actuator (4″ stroke) with shaft fully extended.

Using the actuator

To test-drive the actuator, simply connect a power source of up to 12 V to the motor leads. Reversing the applied voltage will reverse the direction of motion. A motor controller or motor driver is required for electronic speed and direction control. We recommend our Jrk G2 24v13 Motor Controllers for use with the feedback actuators (see below for more information on this) and the Simple Motor Controller G2 18v15 for controlling the actuators without feedback, though many of our other motor controllers and motor drivers are capable of powering this actuator.

These actuators have a stall current of 14 A at 12 V, but they will, on average, draw far less than this when used within their load ratings. They draw around 1 A with no load and can exceed 4 A at their maximum rated dynamic load. Note, however, that the actuators can briefly draw close to their full stall current when abruptly started or on a sudden change of direction. Such current spikes can be dampened if you take steps to limit the acceleration of the actuator (many of our motor controllers offer optional acceleration limiting).

Actuator leads

Actuators with feedback have a 26″ (90 cm) cable that is terminated with special female connectors as shown in the left picture below, one for the three potentiometer leads and another for the two power leads. These connectors match male versions on the extension cable for LD/MD linear actuators. Actuator versions without feedback have a 36″ (90 cm) cable with two unterminated, stripped power leads as shown in the right picture below. Linear actuators without feedback do not have cables that are compatible with the linear actuator extension cable.

Connectors that terminate the cable ends of Glideforce Medium-Duty (MD) linear actuators with feedback.

Unterminated wire ends for Glideforce Medium-Duty (MD) linear actuators without feedback.

Using a Jrk G2 motor controller with a linear actuator with feedback

Connecting a medium-duty linear actuator with feedback to a Jrk 24v13 motor controller.

The feedback features of our Jrk G2 24v13 motor controller make it a great solution for precisely controlling our linear actuators with feedback. Our settings file for the Jrk G2 configuration utility makes setup easy, eliminating the need to tune the PID constants. To get started, follow the steps below:

  1. If you have not already, read through the Jrk G2 Motor Controllers User’s Guide and download its drivers and configuration software.
  2. Before connecting power and your actuator to your Jrk, confirm that it is working by connecting your Jrk to a PC with a USB cable and launch the configuration utility. The red LED should be on, and the green LED should be flickering quickly.
  3. Download the Jrk 24v13 settings file for use with MD1220xx-P (2k txt).
  4. In the configuration utility, choose File → Open settings file (Ctrl + O), and navigate to the location of the settings file you downloaded in step 3.
  5. Click on the PID tab of the configuration utility and verify that the proportional and derivative coefficients are not zero. If they are zero, the settings file was probably not loaded properly and you should try performing the previous step again.
  6. Click “Apply settings”.
  7. With your power supply off and USB disconnected, connect your linear actuator to your Jrk using the connections shown in the picture above.
  8. Turn on power, plug in USB, and reconnect to the configuration utility (use the “Connected to” drop down box if the configuration utility doesn’t automatically reconnect to your Jrk).
  9. On the Status tab, move the slider around to change the target position and get your actuator to move the target position.
  10. The settings in this file should work fairly well with any length Glideforce medium-duty actuator that has a feedback potentiometer (model MD1220xx-P). However, to ensure you can control your actuator across its full stroke, you should recalibrate the feedback. Instructions for doing this can be found in the analog feedback section of the Jrk G2 User’s Guide.

Other Glideforce linear actuator options

Glide force ID, MD, and LD linear actuators with 6″ strokes next to their corresponding aluminum and steel mounting brackets.

We carry a variety of Glideforce linear actuators, from the light-duty LD series through the industrial-duty ID series. The table below shows our full offering of these linear actuators:

Actuator
Type
Max
Dynamic
Load
No-Load
Speed
@ 12 V
Max-Load
Speed
@ 12 V
Current
Draw
@ 12 V
Nominal
Stroke
Length
With
Feedback
Without
Feedback
High-Speed
Light-Duty
(LD) 5:1
12 kgf
[27 lbs]
8.4 cm/s
[3.3″/s]
7.5 cm/s
[2.9″/s]
1.1 A –
3.4 A
2″ GF23-120502-3-65 GF23-120502-1-65
4″ GF23-120504-3-65 GF23-120504-1-65
6″ GF23-120506-3-65 GF23-120506-1-65
8″ GF23-120508-3-65 GF23-120508-1-65
10″ GF23-120510-3-65 GF23-120510-1-65
12″ GF23-120512-3-65 GF23-120512-1-65
Light-Duty
(LD) 5:1
15 kgf
[34 lbs]
4.4 cm/s
[1.7″/s]
3.6 cm/s
[1.4″/s]
1.2 A –
3.2 A
2″ LACT2P-12V-05 LACT2-12V-05
4″ LACT4P-12V-05 LACT4-12V-05
6″ LACT6P-12V-05 LACT6-12V-05
8″ LACT8P-12V-05 LACT8-12V-05
10″ LACT10P-12V-05 LACT10-12V-05
12″ LACT12P-12V-05 LACT12-12V-05
Light-Duty
(LD) 10:1
25 kgf
[55 lbs]
2.8 cm/s
[1.1″/s]
2.3 cm/s
[0.9″/s]
1.2 A –
3.2 A
2″ LACT2P-12V-10 LACT2-12V-10
4″ LACT4P-12V-10 LACT4-12V-10
6″ LACT6P-12V-10 LACT6-12V-10
8″ LACT8P-12V-10 LACT8-12V-10
10″ LACT10P-12V-10 LACT10-12V-10
12″ LACT12P-12V-10 LACT12-12V-10
Light-Duty
(LD) 20:1
50 kgf
[110 lbs]
1.5 cm/s
[0.57″/s]
1.2 cm/s
[0.48″/s]
1.2 A –
3.2 A
2″ LACT2P-12V-20 LACT2-12V-20
4″ LACT4P-12V-20 LACT4-12V-20
6″ LACT6P-12V-20 LACT6-12V-20
8″ LACT8P-12V-20 LACT8-12V-20
10″ LACT10P-12V-20 LACT10-12V-20
12″ LACT12P-12V-20 LACT12-12V-20
Medium-Duty
(MD)
100 kgf
[225 lbs]
1.5 cm/s
[0.58″/s]
1.0 cm/s
[0.41″/s]
1.1 A –
4.6 A
4″ MD122004-P MD122004
6″ MD122006-P MD122006
8″ MD122008-P MD122008
10″ MD122010-P MD122010
12″ MD122012-P MD122012
Industrial-Duty
(ID)
with Acme
screw drive
250 kgf
[550 lbs]
1.7 cm/s
[0.66″/s]
1.4 cm/s
[0.56″/s]
2.4 A –
13.2 A
4″ LACT4-500APL LACT4-500AL
6″ LACT6-500APL LACT6-500AL
8″ LACT8-500APL LACT8-500AL
12″ LACT12-500APL LACT12-500AL
18″ LACT18-500APL LACT18-500AL
24″ LACT24-500APL LACT24-500AL
Industrial-Duty
(ID)
with ball
screw drive
450 kgf
[1000 lbs]
1.7 cm/s
[0.66″/s]
1.4 cm/s
[0.56″/s]
2.4 A –
13.2 A
4″ LACT4-1000BPL LACT4-1000BL
6″ LACT6-1000BPL LACT6-1000BL
8″ LACT8-1000BPL LACT8-1000BL
12″ LACT12-1000BPL LACT12-1000BL
18″ LACT18-1000BPL LACT18-1000BL
24″ LACT24-1000BPL LACT24-1000BL

Dimensions

Nominal stroke length: 4 in
Actual stroke length: 3.94 in
Retracted length: 9.53 in
Extended length: 13.47 in
Weight: 1.11 kg

General specifications

Gear ratio: 20:1
Current @ 12V, no load: 1.1 A
Current @ 12V, max load: 4.6 A
Stall current @ 12V: 14 A1
Linear speed @ 12V, no load: 0.58 in/s
Linear speed @ 12V, max load: 0.41 in/s
Max linear force @ 12V: 225 lb2
Maximum duty cycle: 25%3
Feedback potentiometer included?: Y
Limit switches included?: Y
Minimum operating temperature: -25.0 °C
Maximum operating temperature: 65 °C
IP rating: IP654

Notes:

1
This represents the maximum in-rush current when starting a stationary actuator. These actuators are NOT intended to be stalled, and they will not stall as long as maximum load ratings are respected.
2
This is a dynamic load rating. The actuator is rated to withstand 1000 lbs when not moving.
3
Or one minute of continuous operation in four minutes.
4
Total dust protection, water resistant.
