66-Channel LS20031 GPS Receiver Module (MT3329 Chipset)

Pololu item #: 1249

This product has been discontinued.

This product has been replaced by the 66-Channel LS20031 GPS Receiver Module.

The Locosys LS20031 GPS receiver integrates a MediaTek MT3329 66-channel GPS chip with a ceramic antenna to create a complete GPS module that can track up to 66 GPS satellites at a time.

 Description Specs (3) Pictures (5) Resources (7) FAQs (0) On the blog (0)

File downloads

  • LS2003X GPS Receiver Module Family Datasheet v1.2 (317k pdf)

    Datasheet for the LS2003X family of GPS receiver modules with MT3329 chipset.

  • MTK packet user’s manual (79k pdf)

    A description of the ASCII packets that can be sent to the LS20031 GPS receiver module to configure it.

  • MiniGPS application (version 1.4) (1MB zip)

    A windows application for configuring the LS20031 GPS receiver module. This utility lets you change the update rate and control which NMEA formats are output. Archive includes the MiniGPS User Manual PDF.

    Mini GPS application showing data from an LS20031 module inside Pololu’s offices.

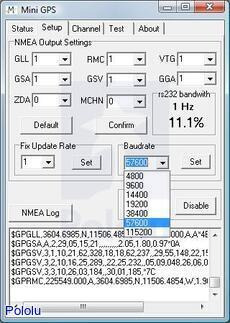

    The Mini GPS application setup tab allows you to configure the LS20031 GPS receiver module.

  • MiniGPS application (verison 1.32) (483k zip)

  • GPSFox application by Locosys (1MB zip)

    A windows application that interprets NMEA data and displays it nicely. This application looks fancy, but doesn’t let you configure the receiver chip the way the MiniGPS application does.

    GPSFox windows application showing data from an LS20031 module inside Pololu’s offices.
