Power HD High-Torque Servo 1501MG

Pololu item #: 1057
Brand: Power HD
Status: Discontinued at Pololu
RoHS 3 compliant

This product has been discontinued.

Please consider the FEETECH High-Torque Servo FS5115M as an alternative. The FS5115M has nearly identical dimensions and similar performance.

The 1501MG is a metal-geared analog servo from Power HD that delivers extra-high torque normally associated with much more expensive or larger servos. This is one of our most popular standard-size servos. Servo horns and associated hardware are included.

Key specs at 6 V: 0.14 sec/60°, 240 oz-in (17 kg-cm), 60 g.

 Description Specs (9) Pictures (5) Resources (1) FAQs (2) On the blog (3)

Overview

The HD-1501MG is a powerful standard-size servo that features metal gears and two ball bearings and can deliver a tremendous amount of torque for a servo this fast (if you need even more torque than this, check out the larger 1235MG giant servo). The 1501MG works with standard RC servo pulses, providing a running angle of approximately 165° over a servo pulse range of 800 µs to 2200 µs, and it has a 10″ (25 cm) cable that is terminated with a standard JR-style connector, which is Futaba-compatible. You can find more information about this servo under the specifications tab and in its datasheet (380k pdf).

The servo cable is terminated with a Futaba-compatible JR-style connector.

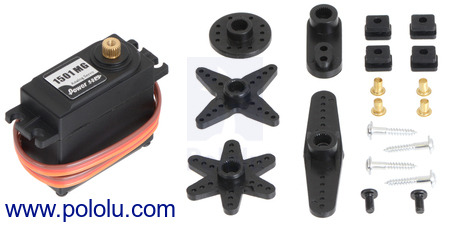

An example of hardware included with the Power HD high-torque servo 1501MG. Actual hardware might vary.

This servo is also compatible with our Mounting Bracket for Standard-Size Servos:

The pictures below show the metal gear train and ball bearings that help the servo deliver such high torque. Replacement gears for the 1501MG are available separately.

Replacement Gear Set for Power HD 1501MG High-Torque Servos.

Note that, as with most hobby servos, stalling or back-driving this servo can damage it; we carry replacement gears for the 1501MG that can used in the event of gearbox damage. This servo can draw bursts of current in excess of 3 A at 6 V, so please make sure you have an appropriate power supply. For comparison, a typical standard-size servo might draw around an amp when straining.

Comparison to the FEETECH FS5115M high-torque servo

The FS5115M high-torque servo from FEETECH is a lower-cost alternative to the 1501MG with nearly identical dimensions and similar performance. The two servos should be generally interchangeable for most applications. The picture below shows both the FS5115M and the 1501MG side by side:
