Mechanical Components » Wheels, Tracks, and Ball Casters » Pololu Ball Casters »
Pololu Ball Caster with 1/2" Plastic Ball

|
This light ball caster uses a 1/2" diameter plastic ball. The height of the assembled kit ranges from 0.5" to 0.8".
| Description | Pictures (3) | Resources (0) | FAQs (0) |
|---|
 |
Overview
This ball caster kit includes a black ABS housing, a 1/2" diameter plastic ball, two spacers (1/16" and 1/8" thick), and two #2 screw sets.
The total height of this ball caster is 0.53" with no spacers. You can also adjust the height by adding the spacers.

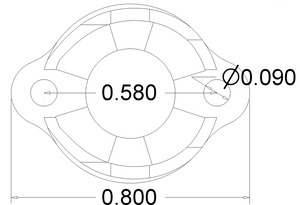

The ball caster can be mounted to a chassis by the two screw sets included in the kit. The distance between the two screw holes is 0.58".
|
|
Comparison of Pololu ball casters
Pololu ball caster ball diameter |
height with no spacers |
distance between screw holes |
weight with no spacers or screws |
| 0.40" | 0.53" | 0.03 oz | |
| 0.40" | 0.53" | 0.14 oz | |
1/2" plastic-ball |
0.53" | 0.58" | 0.07 oz |
| 0.53" | 0.58" | 0.32 oz | |
| 0.91" | 0.24" | 0.25 oz | |
| 0.83" | 0.61" | 1.05 oz | |
| 1.10" | 0.70" | 0.36 oz |
