Sanyo Pancake Stepper Motor: Bipolar, 200 Steps/Rev, 42×18.6mm, 5.4V, 1 A/Phase

Bipolar stepper motor wires are terminated with bare leads.

Sanyo bipolar stepper motor wiring diagram.

Overview

This pancake bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution) and a holding torque of 1.9 kg-cm (26 oz-in). Each phase draws 1 A at 5.4 V. The motor has four color-coded wires terminated with bare leads: red and yellow connect to one coil; orange and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but we recommend using a bipolar stepper motor driver. For more information, see the datasheet (385k pdf).

Our 5mm universal mounting hub can be used to mount objects on the stepper motor’s 5mm-diameter output shaft.

Specifications

• Size: 42 mm square × 18.6 mm, not including the shaft
• Weight: 140 g (4.9 oz)
• Shaft diameter: 5 mm
• Steps per revolution: 200
• Current rating: 1 A per coil
• Voltage rating: 5.4 V
• Resistance: 5.4 Ohm per coil
• Holding torque: 1.9 kg-cm (26 oz-in)
• Inductance: 2.9 mH per coil
• Lead length: 12 in

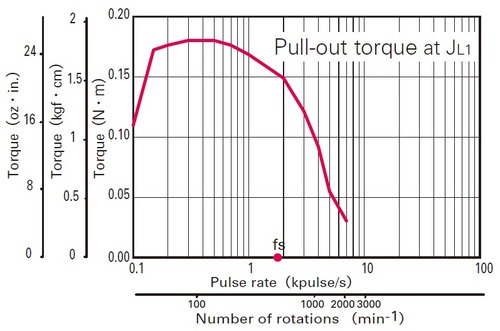

Pull-out torque of the Sanyo 42×18.6mm pancake stepper motor.

Dimensions

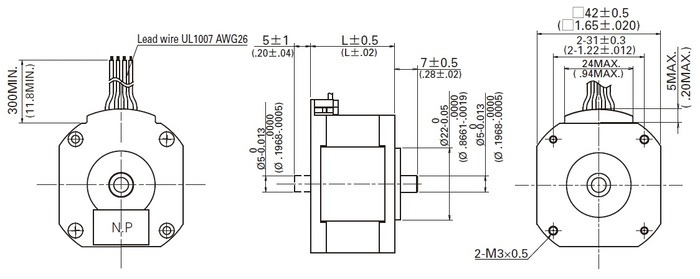

The following diagram shows the stepper motor dimensions in mm. The dimension labeled “L” is 18.6 mm. The output shaft has a length of 7 mm and a diameter of 5 mm.

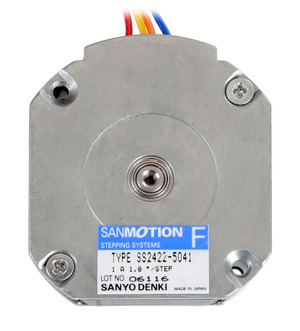

Bottom view of the 42×18.6mm Sanyo pancake stepper motor.

Stepper Motor Applications

Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:

• Printers
• CNC machines
• 3D printer/prototyping machines
• Laser cutters
• Pick and place machines
• Linear actuators
• Hard drives

Sanyo stepper motors; from left to right: 14mm single shaft, 42×18.6mm, 50×11mm, 14mm double shaft

Note: Sanyo Denki calls this product the “SANMOTION F2 STEPPING SYSTEMS TYPE SS2422-5041”.
