Pololu USB AVR Programmer

Pololu item #: 1300
Brand: Pololu supply outlook
Status: Active

Price break Unit price (US$)
1 24.95
5 22.95
25 21.12
100 19.43


backorders allowed

This device is a programmer for AVR-based controllers, such as our Orangutan robot controllers and the 3pi robot. The programmer emulates an STK500 on a virtual serial port, making it compatible with standard AVR programming software. Two additional features help with building and debugging projects: a TTL-level serial port for general-purpose communication and a SLO-scope for monitoring signals and voltage levels. A USB cable and ISP cable are included.

 Description Specs (0) Pictures (5) Resources (14) FAQs (4) On the blog (2)

We recommend considering our newer Pololu USB AVR Programmer v2.1 over this programmer, as it offers a number of improvements (including 3.3 V support) at a lower price. However, please note that the v2.x programmer does not have the SLO-scope bonus feature that this programmer does.

General AVR ISP Programmer

The Pololu USB AVR Programmer is an extremely compact, low-cost in-system programmer (ISP) for Atmel’s AVR mirocontrollers, which makes this device an attractive programming solution for AVR-based controllers like our Orangutan robot controllers and A-Star modules. The USB AVR programmer connects to your computer’s USB port via an included USB A to mini-B cable and communicates with your programming software, such as Atmel Studio or AVRDUDE, through a virtual COM port using the AVRISPV2/STK500 protocol. The programmer connects to your target device via an included 6-pin ISP programming cable (the older, 10-pin ISP connections are not directly supported, but it’s easy to create or purchase a 6-pin-to-10-pin ISP adapter).

Supported Microcontrollers

The programmer should work with all AVRs that can be programmed with the AVR ISP interface, but it has not been tested on all devices. It has been tested with all Orangutan robot controllers and the 3pi Robot. The programmer features upgradable firmware, allowing updates for future devices. It does not currently work with Atmel’s XMega line of microcontrollers.

The programmer is powered by the 5V USB power bus, and it is intended for programming AVRs that are running at close to 5 V (note that the programmer does not deliver power to the target device).

Supported Operating Systems

The programmer has been tested under Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, and Linux. We provide limited support for using this programmer on Mac OS X; please see the user’s guide for details. This programmer is not compatible with older versions of Windows.

Bonus Feature: TTL-level serial port

The USB AVR programmer doubles as a USB-to-serial adapter. The programmer installs as two virtual COM ports: one for communicating with programming software and one for the general-purpose USB-to-serial adapter. This means that you can seamlessly switch between programming an AVR and debugging it through the TTL serial port without having to open and close your terminal program. In addition to the serial transmit (TX), and receive (RX), lines, the programmer lets you use pins A and B as serial handshaking lines. The programmer’s configuration utility allows you to select which handshaking line is assigned to which pin, and both input and output handshaking lines are supported. The programmer also gives you access to the USB’s regulated 5V power bus through the VBUS pin. The TTL-level serial port is not supported in Mac OS.

Bonus Feature: SLO-scope

This device can also act as a two-channel, severely limited oscilloscope (SLO-scope) using the A and B pins as analog voltage inputs and the Pololu SLO-scope application for Windows. The SLO-scope can measure voltages between 0 and ~5 V (the maximum is limited by the USB bus voltage), or higher if you use an external voltage divider, and it supports two sampling modes: 10 kHz sampling of two 8-bit analog inputs or 20 kHz sampling of one 7-bit analog input and one digital input. This feature can help you debug your circuits and firmware by seeing what the voltages are doing at various nodes. (Please note that the SLO-scope feedback is quite limited and is not intended as a substitute for a real oscilloscope or a good multimeter, which will have much higher input impedance, better resolution and range, and higher sampling frequency.) The SLO-scope is not supported in Mac OS or Linux.

Included Accessories

The Pololu USB AVR Programmer ships with a 12″ (30 cm) 6-pin ISP programming cable and a USB A to mini-B cable. It does not ship with software or documentation, but software (including drivers) and documentation can be found under the resources tab.

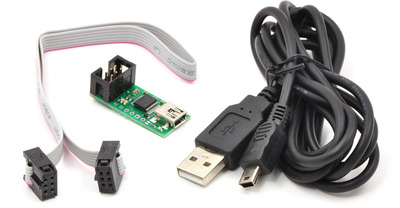

Pololu USB AVR programmer with included six-pin ISP cable and USB A to mini-B cable.

Note: This programmer supports standard in-system programming (ISP), which is also sometimes called in-circuit serial programming (ICSP). It does not support JTAG, DebugWire, or High-Voltage programming.
