This hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 670 mA at 3.5 V, allowing for a holding torque of 600 g-cm (8.3 oz-in).
  |
| 5mm Pololu universal aluminum mounting hub on a stepper motor with a 5mm output shaft. |
|---|
Overview
This hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 670 mA at 3.5 V, allowing for a holding torque of 600 g-cm (8.3 oz-in). The motor has four color-coded wires terminated with bare leads. Our 5mm universal mounting hub can be used to mount objects on the stepper motor’s 5mm-diameter output shaft.

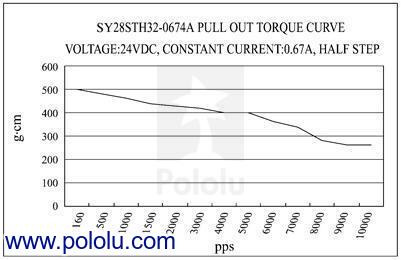

Specifications
- Size: 28 mm square x 32 mm (not including the shaft)
- Weight: 110 g (4 oz)
- Shaft diameter: 5 mm
- Steps per revolution: 200
- Current rating: 670 mA per coil
- Voltage rating: 3.8 V
- Resistance: 5.6 Ohm per coil
- Holding torque: 600 g-cm (8.3 oz-in)
- Inductance: 4.2 mH per coil
- Lead length: 12 in
 | | Bipolar stepper motor wires are terminated with bare leads. |
|---|
|
 | | Bipolar stepper motor wiring diagram. |
|---|
|
Dimensions

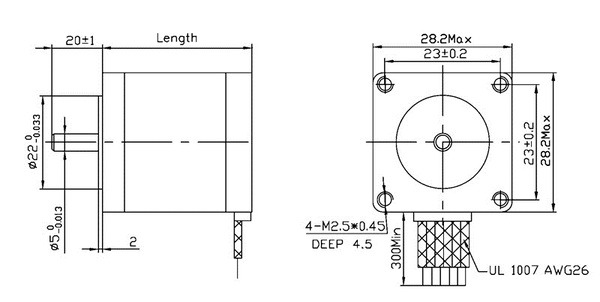

The following diagram shows the stepper motor dimensions in mm. The dimension labeled “Length” is 32 mm. The output shaft has a length of 20 mm and a diameter of 5 mm.
 |
| The inside of a bipolar stepper motor. |
|---|
Stepper Motor Applications
Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:
- Printers
- CNC machines
- 3D printer/prototyping machines
- Laser cutters
- Pick and place machines
- Linear actuators
- Hard drives
 |
| Bipolar stepper motors; from left to right: 20×30, 28×32, 28×45, 35×26, 35×28, 35×36mm. |
|---|
