8×2 Character LCD - Black Bezel (Parallel Interface)

Pololu item #: 356
Brand: Generic supply outlook
RoHS 3 compliant

Price break Unit price (US$)
1 8.95
10 7.95
100 6.49


backorders allowed

This compact 8×2 LCD is great for small microcontroller projects where you want more than just a blinking LED for feedback. This unit uses the standard HD44780 parallel interface, features a black bezel, and operates without a backlight.

 Description Specs (8) Pictures (3) Resources (3) FAQs (0) On the blog (3)

Overview

This little 8-character, 2-line parallel liquid crystal display is a generic equivalent of the Optrex DMC-50448N-AAE-AD LCD. It is incorporated into some versions of our A-Star 32U4 Prime microcontroller boards and our Zumo 32U4 and 3pi robots. It uses the common HD44780 interface, so sample interface code is widely available for a variety of microcontrollers. This is the smallest package we know of for this familiar interface.

You can find sample HD44780 LCD interface code written for a variety of AVR microcontrollers as part of the Pololu AVR library. If you are using an Arduino board, you can get started with Arduino’s LiquidCrystal library.

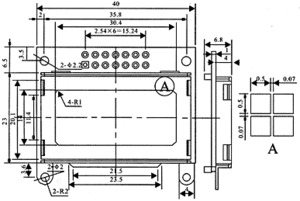

Pinout

Pin Symbol Function
1 Vss ground (0 V)
2 Vdd 5 V logic supply voltage
3 Vo contrast adjustment
4 RS H/L register select signal
5 R/W H/L read/write signal
6 E H/L enable signal
7-14 DB0 – DB7 H/L data bus for 4- or 8-bit mode

Note: This item ships without pins (the pads are standard 0.1″ spacing), connectors, or cables.
