High-Torque Servo with Metal Gears (Generic)

Pololu item #: 1054

This product has been discontinued.

This standard-size generic servo can deliver quite a bit of torque using a geartrain comprised entirely of metal gears. Servo horns and associated hardware are included.

Key specs at 6 V: 0.16 sec/60°, 140 oz-in (10.2 kg-cm), 56 g (2.0 oz).

Clearance: This product is on clearance and will be discontinued when stock runs out. We recommend the Power HD High-Torque Servo 1501MG as a replacement.

 Description Specs (8) Pictures (3) Resources (0) FAQs (2) On the blog (0)

Clearance: This product is on clearance and will be discontinued when stock runs out. We recommend the Power HD High-Torque Servo 1501MG as a replacement.

This standard-size servo has all-metal gears and can deliver the kind of torque usually found in larger or more expensive servos, making it appropriate for compact or low-cost robot mechanisms that require a lot of power.

It measures 41.3 x 20.3 x 38.7 mm (1.63" x 0.80" x 1.52") and weighs 56 g (02.0 oz) without its 30cm (12") lead. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible.

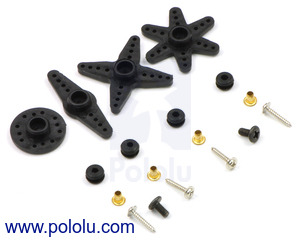

The servo ships with the hardware shown below.

The servo is intended for operation from 4.8 – 6.0 V, meaning it should be powered with a 4- or 5-cell NiMH battery pack, such as our 4.8V AAA pack or our 6.0V AAA pack.
