Pololu Basic SPDT Relay Carrier with 5VDC Relay (Assembled)

Pololu item #: 2480
Brand: Pololu supply outlook
Status: Active and Preferred
RoHS 3 compliant

Price break Unit price (US$)
1 5.95


backorders allowed

The Pololu basic relay carrier modules allow simple control of a single-pole, double-throw (SPDT) switch from low-voltage, low-current control signals. This item includes the basic carrier PCB with a soldered-in 5 V relay, 5.0 mm terminal blocks for the switch connections, and straight 0.1" male header for the control connections. The included power relay is an Omron G5LE-14-DC5 and is rated for up to 10 A under most conditions.

Alternatives available with variations in these parameter(s): voltage partial kit? Select variant…

 Description Specs (6) Pictures (6) Resources (6) FAQs (0) On the blog (1)

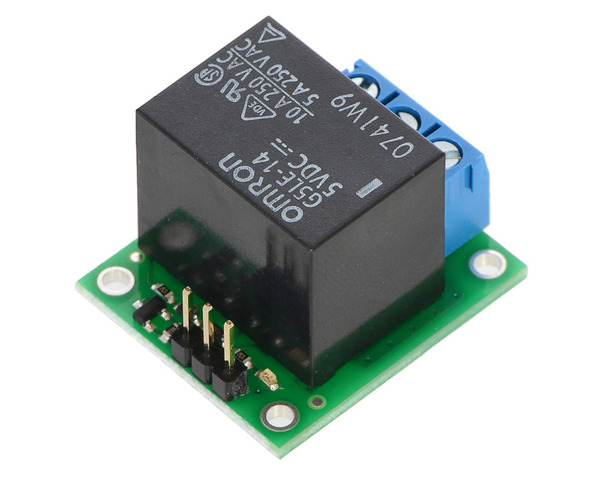

Pololu basic SPDT relay carrier with 5 VDC relay (assembled).

Pololu basic SPDT relay carrier with 5 VDC relay (assembled).

Pololu basic SPDT relay carrier with relay energized.

Pinout of Pololu basic SPDT relay carrier for “sugar cube” relays.

Pololu basic SPDT relay carrier with dimensions.

Schematic diagram for the Pololu basic SPDT relay carrier.
