SN754410 Motor Driver IC

SN754410 Motor Driver IC
Pololu item #: 24 164 in stock

Price break Unit price (US$)
1 2.95
10 2.49


backorders allowed

This TI SN754410 motor driver features two H-bridges that can be used for bidirectional control of two DC motors or to control a single stepper motor. It operates from 4.5 to 36 V and can deliver a peak current of 1 A per channel (the continuous current you can deliver depends on how well you can keep the driver IC cool).

 Description Specifications (8) Pictures (0) Resources (1) FAQs (0)

The SN754410NE from Texas Instruments is a quadruple half-H driver that can be used for bidirectional control of two DC motors or to control a single bipolar stepper motor. You can use this item as a replacement part, to stack on an existing motor controller, or to make your own motor or other high-current device controller.

This integrated motor driver has the same pinout as the L293 that is popular in robotics applications, and the SN754410NE has the additional benefits of built-in protection diodes across the power transistors and output current capability of 1 A per driver. For even higher current applications, it is possible to physically stack two devices on top of each other to get almost 2 A of drive current, though we recommend you use a higher power driver in those cases, such as our DRV8835 dual motor driver carrier or DRV8833 dual motor driver carrier.

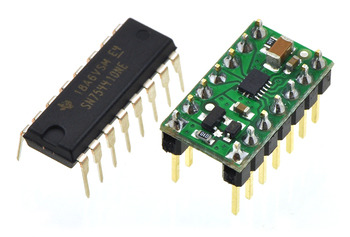

TI SN754410 (16-pin DIP) next to the DRV8835 dual motor driver carrier (14-pin DIP) for size reference.

Note: This chip requires additional circuitry to work and it is shipped without documentation. You can find the datasheet under the resources tab.
