This piezo sounder is an inexpensive way to add sound to your project. The wide operating voltage of 1 – 30 V and low current draw (5 mA at 9 V) make it easy to control this buzzer directly from a microcontroller I/O line.
Compare all products in Audio.
  |
| Bottom of Piezo Buzzer |
|---|
This piezo sounder is an inexpensive way to add sound to your project. The wide operating voltage of 1 – 30 V and low current draw (5 mA at 9 V) make it easy to control this buzzer directly from a microcontroller I/O line. The volume can be increased by driving the two pins differentially from two I/O lines. These buzzers are manufactured for name-brand household applicances, so you get the benefit of a well-engineered product at a mass-production price.
The pins on this buzzer can be jammed into a breadboard (it’s a little bit tight, but it fits).
Additional specifications can be found in the datasheet (1MB pdf).
 |

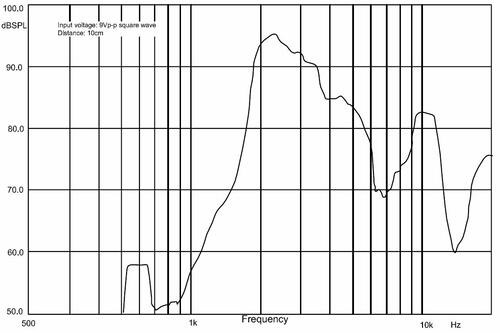

| Frequency response curve for the 30mm piezo buzzer. |
|---|
 |

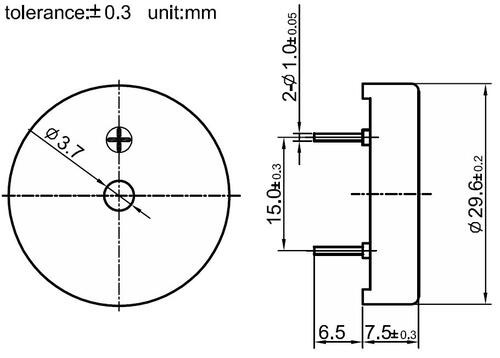

| 30mm piezo buzzer dimensions (in mm). |
|---|
